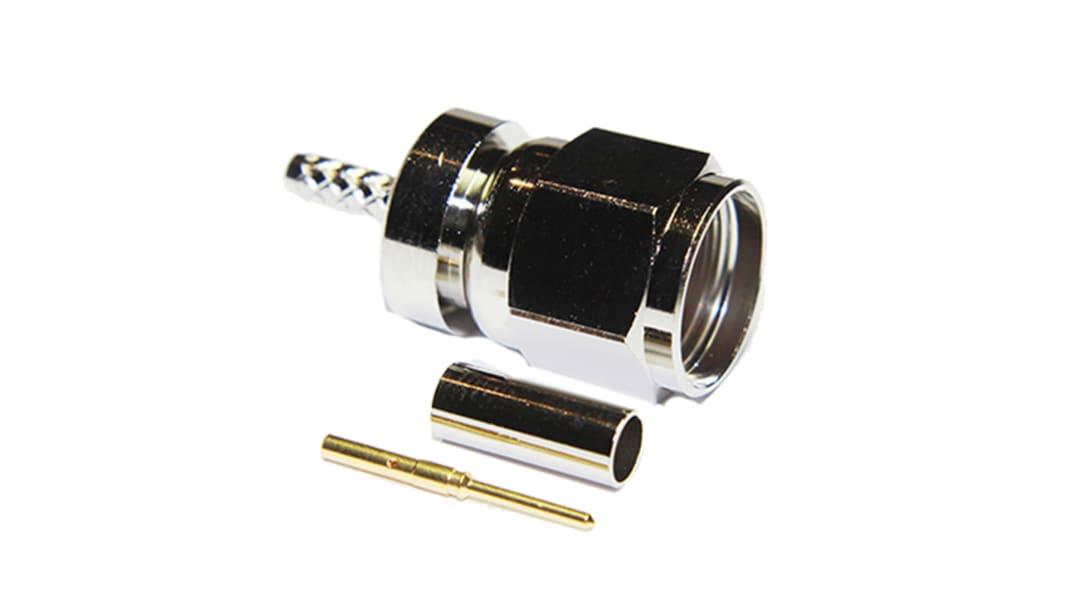

Name: COAX Connectors 75Ω Straight Cable Mount F Connector, Plug, RG179, RG187
Brand: COAX Connectors
SKU: 916-2722
Price: 4.13 GBP
Availability: InStock

F type straight crimp plug data sheet

COAX Connectors 75Ω Straight Cable Mount F Connector, Plug, RG179, RG187

Atlas

The Harting Mini Coax backpane connectors are a multi line RF connector for blind mating of board to board or board to cable applications. The Mini Coax connector is mainly used in both RF and IF signal transmission and has a frequency range from DC to 2.5 GHz. Due to ...

The Harting Mini Coax backpane connectors are a

Harting, Mini Coax 4.4 mm, 6.25 mm, 7.64

50 Ohm N Series weatherproof RF coaxial crimp plug connectors with a screw coupling, crimp termination, nickel plated body and silver plated centre contact. These 50 Ohm N Series RF coax crimp cable plugs have a mating face sealing between the plug and jack according to IP68 and are available ...

50 Ohm N Series weatherproof RF coaxial crimp

Telegartner 50Ω Straight Cable Mount N Connector, Plug,

RF Connector, F Type Straight Crimp Plug for RG-58, LMR-195, 75 Ohm. Patent pending contact design provides truly cylindrical coaxial contact and provides superior RF performance and excellent insertion/withdrawal characteristics30 dB return loss at 1GHz ensures high performance specification that outperforms competition Multiple PCB mount packages: surface mount, edge mount, ...

RF Connector, F Type Straight Crimp Plug for

Amphenol 75Ω Straight Cable Mount F Connector, Plug

F series PCB elbow jack RF coaxial connector made from nickel over copper plated zinc alloy. This F series right angle PCB mount miniature RF coax connector is ideal for use in CATV applications. TE Connectivity F Series RF Coaxial PCB Elbow Jack Connector. TE Connectivity - F Type.

F series PCB elbow jack RF coaxial connector

Units	Per unit
1 - 4	£3.44
5 - 9	£3.23
10 - 24	£3.10
25 - 49	£2.96
50 +	£2.75

Attribute	Value
Gender	Male
Coaxial Connector Type	F Connector
Mounting Type	Cable Mount
Impedance	75Ω
Termination Method	Crimp
Body Orientation	Straight
Cable Type	RG179, RG187
Operating Frequency	0 to 3GHz
Body Plating	Nickel
Contact Material	Brass
Contact Plating	Gold
Series Number	15-005-36

COAX Connectors 75Ω Straight Cable Mount F Connector, Plug, RG179, RG187

Coax Connectors Straight Crimp Plugs
