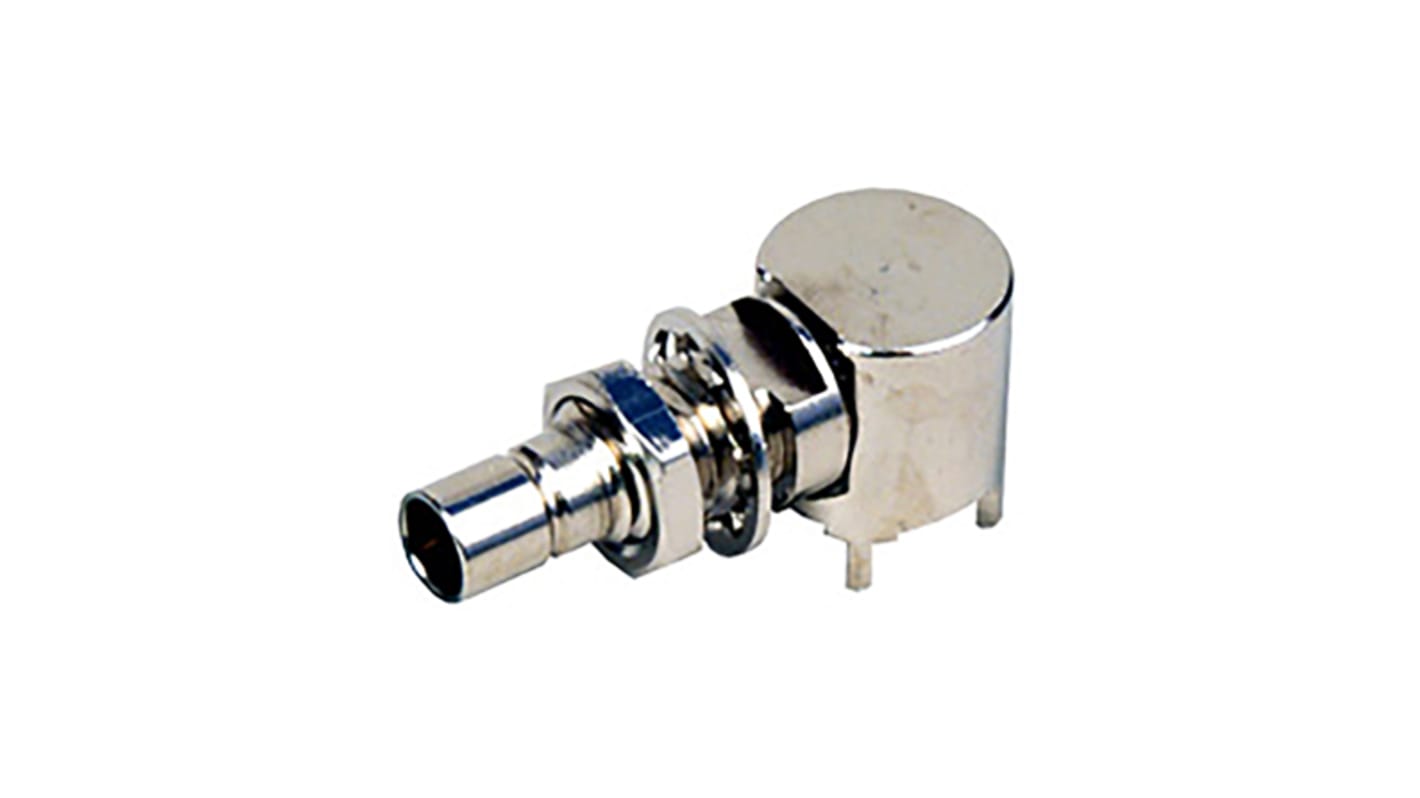

Cinch Connectors Mini-SMB Series, Jack PCB Mount SMB Connector, 75Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 885-9642
- Mfr. Part No.:
- 131-8701-506
- Brand:
- Cinch Connectors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 885-9642
- Mfr. Part No.:
- 131-8701-506
- Brand:
- Cinch Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cinch Connectors | |
| Coaxial Connector Type | SMB Connector | |
| Gender | Female | |
| Mounting Type | PCB Mount | |
| Impedance | 75Ω | |
| Termination Method | Solder | |
| Body Orientation | Right Angle | |
| Size | Miniature | |
| Bulkhead | Yes | |
| Operating Frequency | 0 to 2GHz | |
| Body Plating | Nickel over Copper | |
| Series | Mini-SMB | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel over Copper | |
| Mating Type | Quick Connect | |
| Series Number | 131 | |
Select all | ||
|---|---|---|
Brand Cinch Connectors | ||
Coaxial Connector Type SMB Connector | ||
Gender Female | ||
Mounting Type PCB Mount | ||
Impedance 75Ω | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Size Miniature | ||
Bulkhead Yes | ||
Operating Frequency 0 to 2GHz | ||
Body Plating Nickel over Copper | ||
Series Mini-SMB | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel over Copper | ||
Mating Type Quick Connect | ||
Series Number 131 | ||
- COO (Country of Origin):
- CN
SMB RF Connectors
The SMB series from Cinch are small in size and easy to mate/unmate making them ideal for applications where packaging density is a consideration.
This series RF connectors feature snap-on coupling to provide quick connect/disconnect. Suitable for test equipment, GPS and telecom applications.
This series RF connectors feature snap-on coupling to provide quick connect/disconnect. Suitable for test equipment, GPS and telecom applications.
Variety of connection types available
Designed for applications up to 4Ghz
50Ohm or 75Ohm versions available
Mini SMB and complete assembly options available
Designed for applications up to 4Ghz
50Ohm or 75Ohm versions available
Mini SMB and complete assembly options available
Cinch SMB Series
