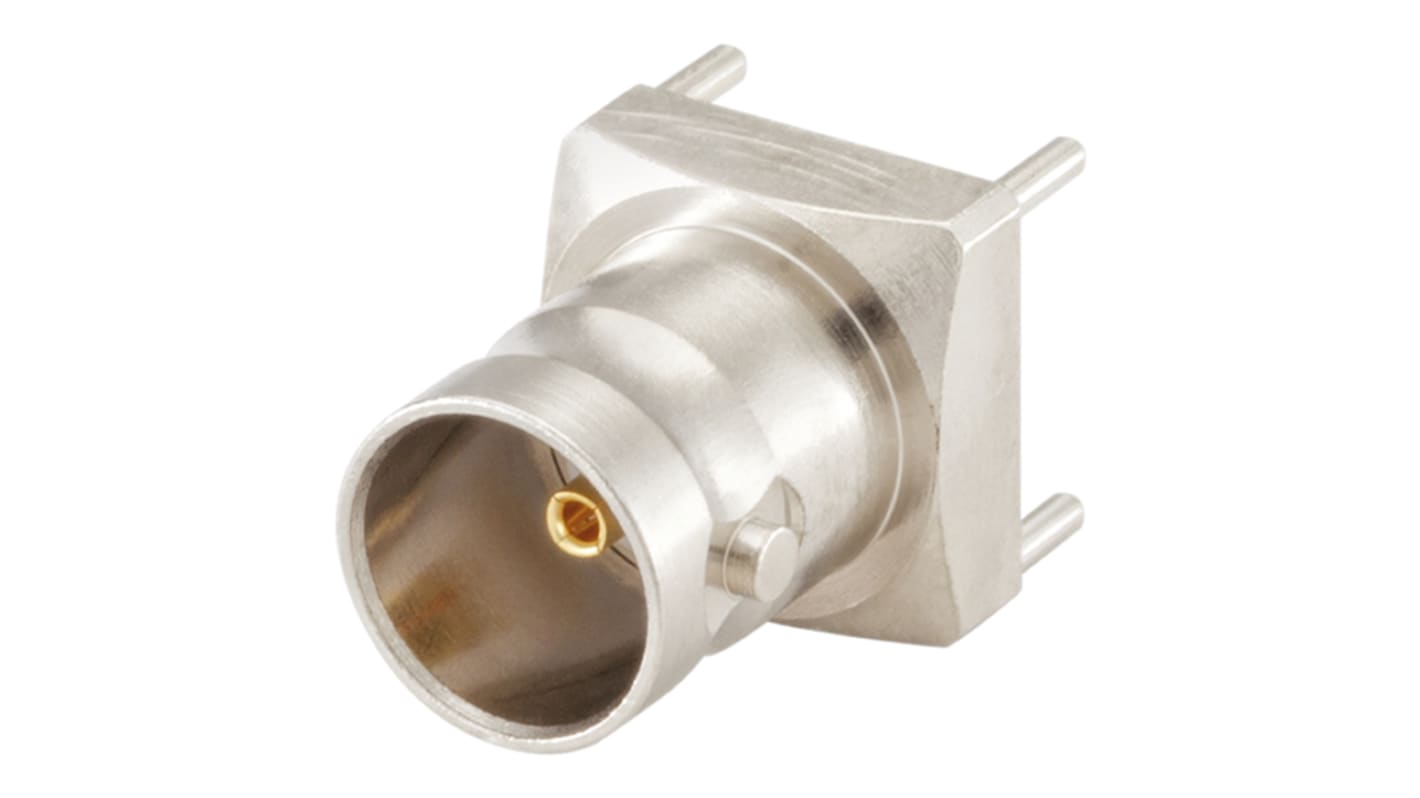

Rosenberger 75Ω Straight PCB Mount BNC Connector, jack

  • RS Stock No. 819-4396
  • Mfr. Part No. 71K101-400A5
  • Brand Rosenberger
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

Rosenberger 75 OHM BNC RF Coaxial PCB Mount Jack Connectors

A range of 75 OHM BNC PCB mount RF coaxial connectors available as straight or right angle BNC coax jacks. These 75 OHM BNC PCB mount RF coaxial jack connectors have a mating interface compatible to compatible to IEC 60169-8, MIL-PRF-39012, CECC 22120 (stock number 819-4396) and IEC 61169-8, MIL-PRF-39012, CECC 22120 (stock number 819-4406) and a nickel plated brass body.

Specifications
Attribute Value
Coaxial Connector Type BNC Connector
Gender Female
Mounting Type PCB Mount
Impedance 75Ω
Termination Method Through Hole
Body Orientation Straight
Bulkhead No
Operating Frequency 0 to 4GHz
Body Plating Nickel
Series BNC
Contact Material Copper Zinc Alloy
Contact Plating Nickel/White Bronze
Series Number 71K101
73 In stock - FREE next working day delivery available
Price Each
£ 6.79
(exc. VAT)
£ 8.15
(inc. VAT)
Units
Per unit
1 - 9
£6.79
10 - 24
£6.66
25 - 49
£6.52
50 - 99
£6.39
100 +
£6.25
