TE Connectivity Straight Cable Mount Twinax Connector, Plug, RG/U

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

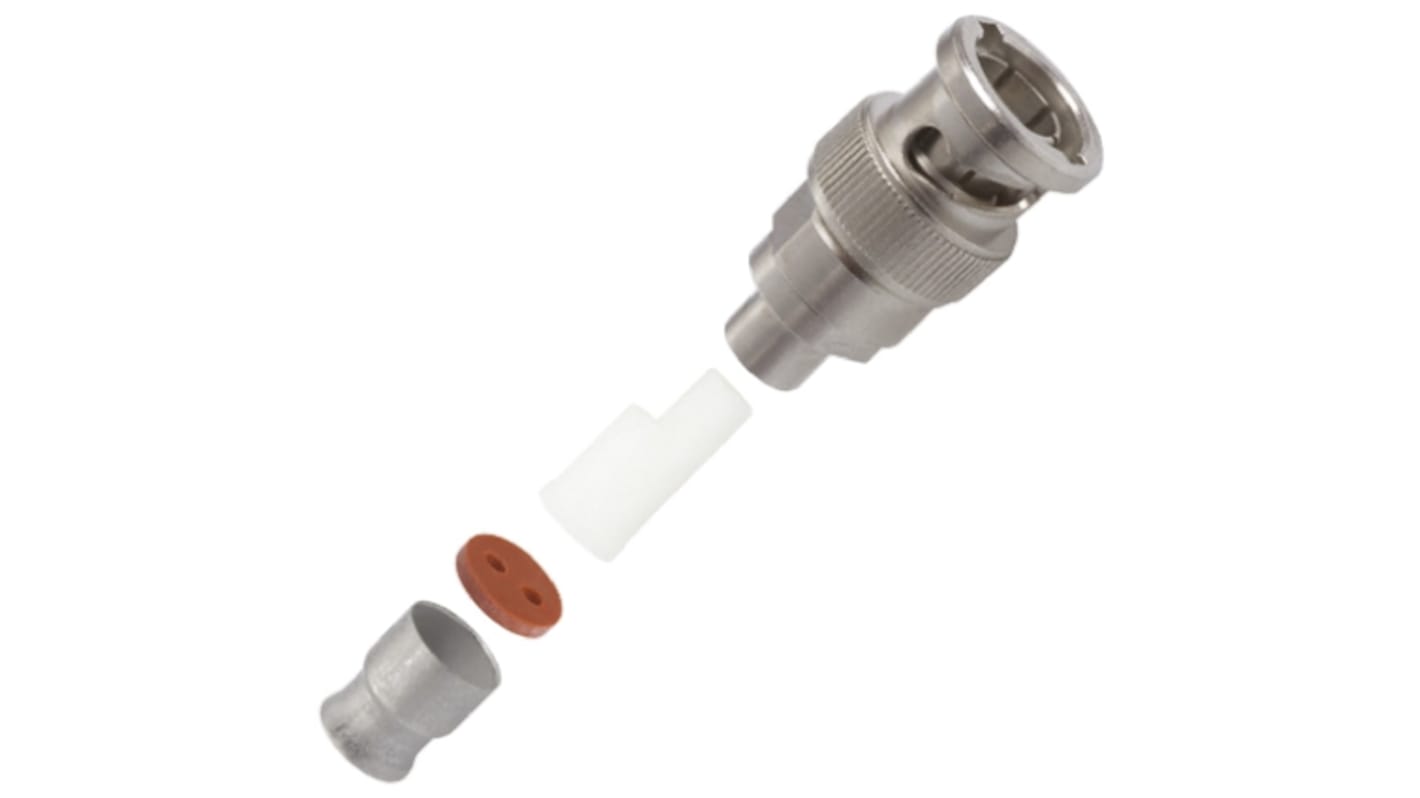

TE Connectivity Twin BNC Plug Connectors

Twin BNC plug connectors with a one-stroke crimp technology that allows both conductors, braid and cable support to be crimped simultaneously. These Twin BNC plug connectors are weatherproof and designed in accordance with MIL-C-39012 to meet requirements of MIL-STD-1553 Multiplex Data Bus.
Stock number 782-7811 has a nickel plated body, polypropylene dielectric and a silver plated central contact and is for use with RG108, 108A and BELDEN 9275 and 89272 coaxial cables

TE Connectivity BNC RF Coaxial Connectors

Specifications
Attribute Value
Coaxial Connector Type Twinax Connector
Gender Male
Mounting Type Cable Mount
Termination Method Crimp
Body Orientation Straight
Cable Type RG/U
Size Standard
Series AMP
Contact Plating Silver
46 In stock - FREE next working day delivery available
Price Each
£ 17.95
(exc. VAT)
£ 21.54
(inc. VAT)
Units
Per unit
1 - 9
£17.95
10 - 24
£16.20
25 - 49
£15.52
50 - 149
£15.01
150 +
£14.64
