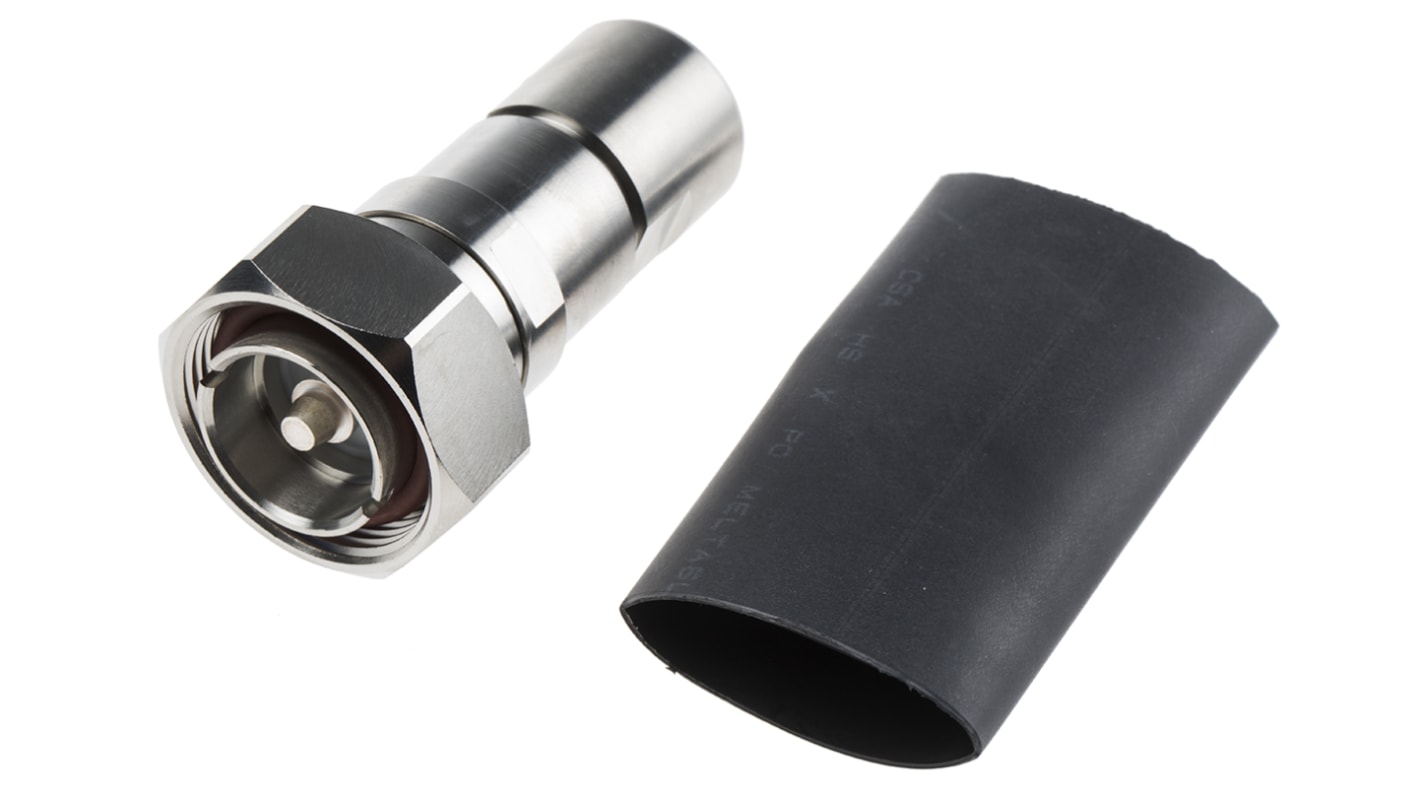

RS PRO 50Ω Straight Cable Mount 7/16 Connector, Plug

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

7//16 Straight Connectors

These 7//16 connectors are designed for 50 ohm impedance applications, featuring excellent power-handling capability and low VSWR up to 7.5GHz. These 7//16 connectors provide superior performance for return loss and intermodulation distortion and are ideal for those applications where vibration resistance and environmental protection is important, such as radio base stations and broadcast communication application.

Nominal impedance 50 ohms
Low Broadband VSWR
Vibration proof coupling

Note

Stock item 750-8598 is MIL-STD-348A rated.

Specifications
Attribute Value
Coaxial Connector Type 7/16 Connector
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Clamp
Body Orientation Straight
Size Standard
Operating Frequency 0 to 6GHz
Contact Material Beryllium Copper
Contact Plating Silver
301 In stock - FREE next working day delivery available
Price Each
£ 18.91
(exc. VAT)
£ 22.69
(inc. VAT)
Units
Per unit
1 +
£18.91
