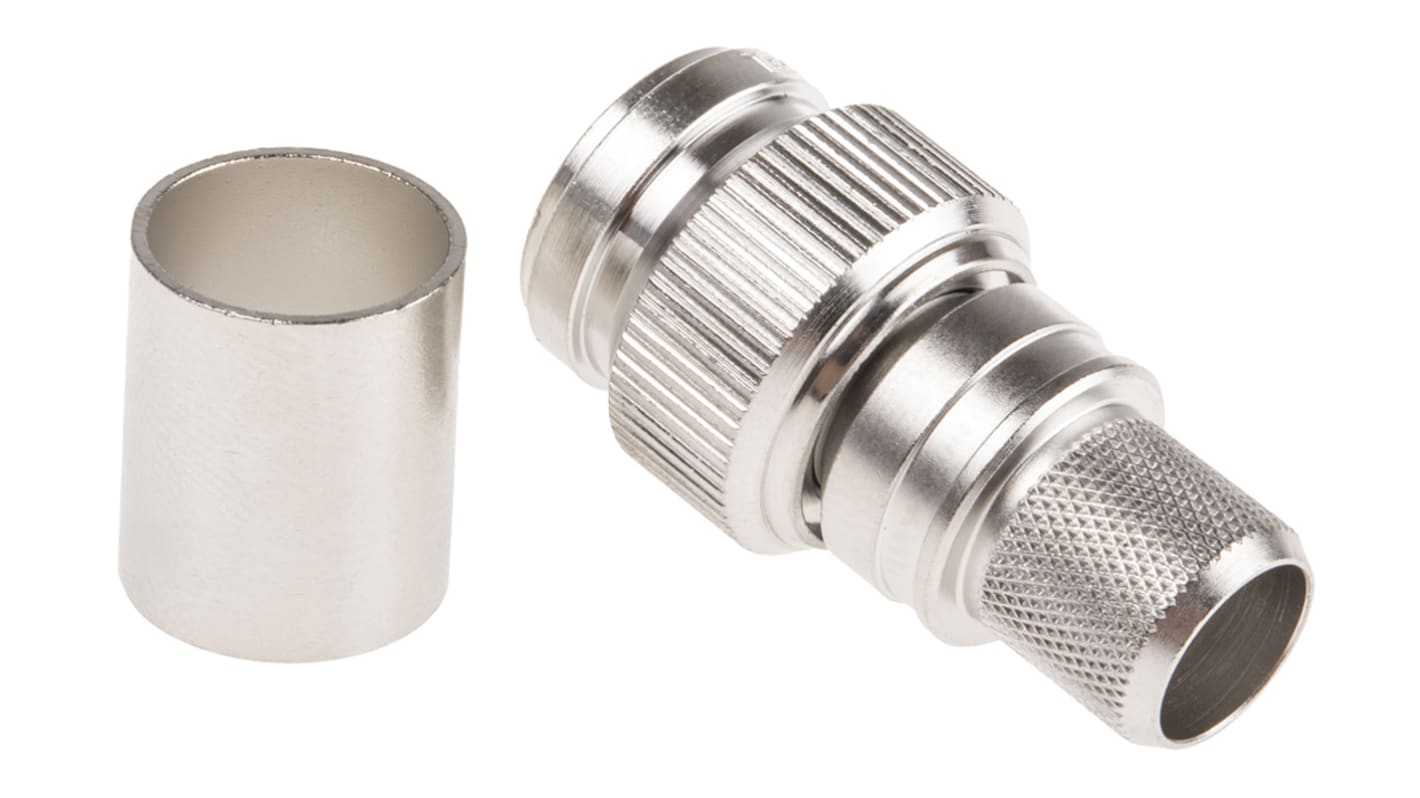

Telegartner 50Ω Straight Cable Mount TNC Connector, Plug, LMR-400

  • RS Stock No. 712-2964P
  • Mfr. Part No. J01010A0049
  • Brand Telegartner
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

TNC Straight Plugs

Telegartner TNC RF Coaxial Connectors

Specifications
Attribute Value
Gender Male
Coaxial Connector Type TNC Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type LMR-400
Operating Frequency 0 to 11GHz
Minimum Operating Temperature -65°C
Body Plating Nickel
Maximum Operating Temperature +165°C
Contact Material Beryllium Copper
Contact Plating Copper Nickel Gold Alloy
3 In stock - FREE next working day delivery available
Price Each (Supplied in a Bag)
£ 13.76
(exc. VAT)
£ 16.51
(inc. VAT)
Units
Per unit
15 - 49
£13.76
50 - 99
£10.16
100 - 249
£9.65
250 +
£7.39
Packaging Options:
