RS PRO 75Ω Right Angle PCB Mount BNC ConnectorBulkhead Fitting, jack

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

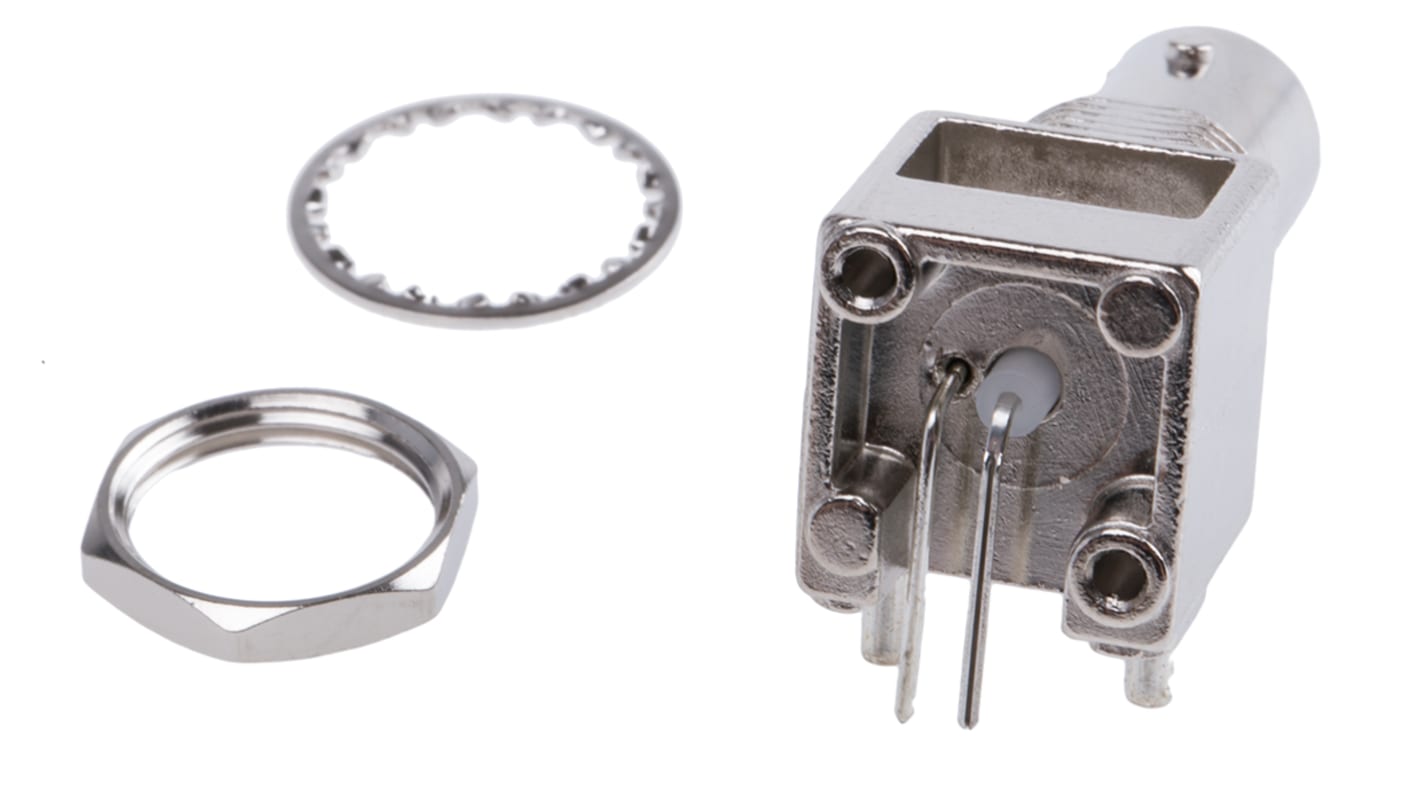

RS 75 Ohm BNC Right Angle PCB Mount RF Coaxial Jack with Metal Housing

75 Ohm BNC right angle PCB mount RF coaxial jack connectors with a metal housing. These RF coax PCB mount BNC receptacles have a bayonet coupling, nickel plated body, gold plated centre contact and are available with different body heights (please refer to datasheet on website for dimensional details)

//media.rs-online.com/t_line/LE447392-11.gif

Approvals

N/A

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.

Specifications
Attribute Value
Coaxial Connector Type BNC Connector
Gender Female
Mounting Type PCB Mount
Impedance 75Ω
Termination Method Through Hole
Body Orientation Right Angle
Bulkhead Yes
Operating Frequency 0 to 1GHz
Body Plating Nickel
Polarity Normal
Contact Material Phosphor Bronze
Contact Plating Gold
600 In stock - FREE next working day delivery available
Price Each
£ 1.70
(exc. VAT)
£ 2.04
(inc. VAT)
Units
Per unit
1 - 9
£1.70
10 - 24
£1.53
25 - 49
£1.39
50 - 99
£1.24
100 +
£1.20
