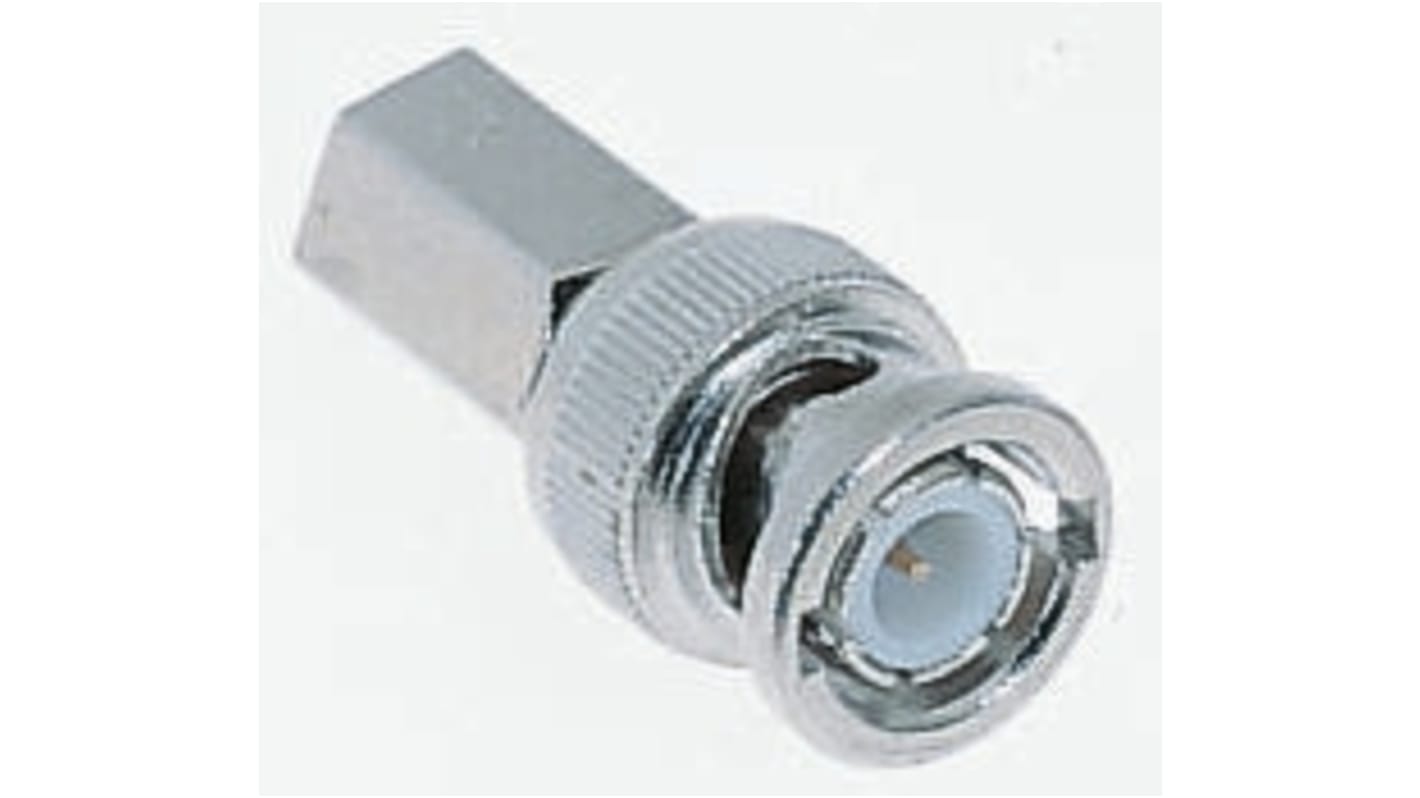

RS PRO 75Ω Straight Cable Mount BNC Connector, Plug, RG59

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS 75 Ohm BNC RF Coaxial Twist-On Plug Connector

75 Ohm BNC RF coaxial plug connector with bayonet coupling and a twist-on termination. These 75 Ohm BNC straight RF coax twist-on cable plug connectors have a nickel plated body, washers, gold plated centre contacts and are for use with a variety RF coaxial cable types.

RS PRO 75 Ohm Twist-On BNC Connector

From RS PRO, this robust and reliable BNC connector is designed to be used with RG59 coaxial cables. It features a gold plated contact for a long lasting and highly conductive connection solution. The robust brass body features the bayonet mating typical of a BNC connector, ensuring a secure and reliable connection to corresponding connectors.

Features and Benefits

• 75Ω BNC RF Connector
• Twist-on cable termination
• Nickel plated brass body
• Gold plated contact
• Cable group F

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This cable mounting connector has an easy-to-terminate twist-on cable solution. The clamp is simply screwed onto the cable, and requires no additional tooling to tighten.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

N/A

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.

Specifications
Attribute Value
Gender Male
Coaxial Connector Type BNC Connector
Mounting Type Cable Mount
Impedance 75Ω
Termination Method Twist On
Body Orientation Straight
Cable Type RG59
Operating Frequency 1GHz
Body Plating Nickel
Polarity Normal
Contact Material Brass
Contact Plating Gold
150 In stock - FREE next working day delivery available
Price Each (In a Pack of 50)
£ 1.778
(exc. VAT)
£ 2.134
(inc. VAT)
Units
Per unit
Per Pack*
50 - 50
£1.778
£88.90
100 - 200
£1.126
£56.30
250 - 450
£1.037
£51.85
500 - 950
£1.001
£50.05
1000 +
£0.973
£48.65
*price indicative
