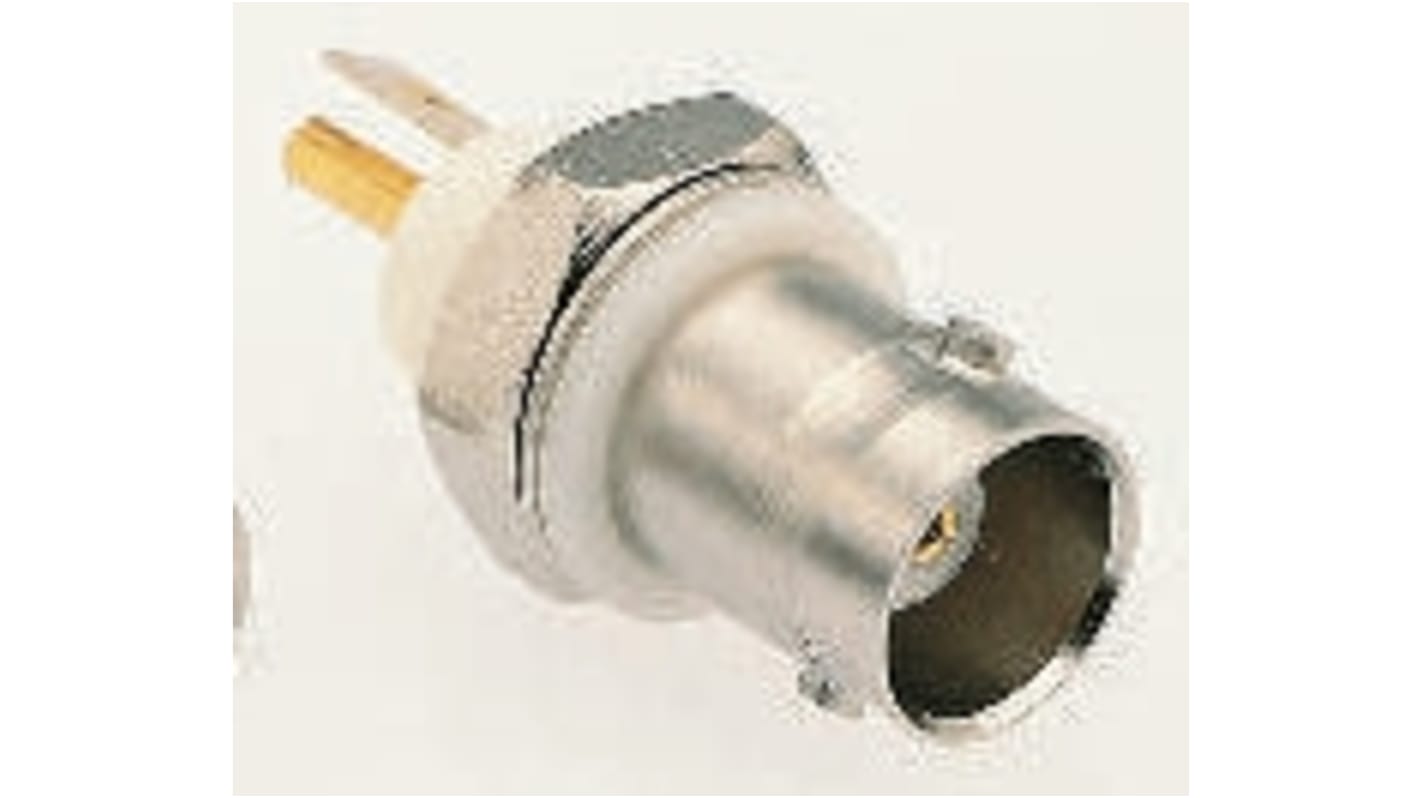

RS PRO Straight 50Ω Panel Mount Bulkhead Fitting BNC Connector, jack, Nickel, Solder Termination

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS 50 Ohm BNC RF Coaxial Isolated Bulkhead Jack Receptacle

From RS PRO, this BNC coaxial connector is designed for use with coaxial cables, and features a bulkhead and screw on nut for mounting to panels and chassis.

The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• BNC plug
• Nickel plated body provides a heavy-duty build quality
• Gold contacts ensure maximum efficiency
• Solder tab termination method
• 50 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

FAQs

Q: How should I connect a BNC connector to a coaxial cable?

A: This BNC has a solder tab termination, for a secure and long lasting connection. A soldering kit is needed to terminate this connector.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

//media.rs-online.com/t_line/L455674-01.gif

Approvals

N/A

RS BNC Connectors

RS BNC connectors are suitable for a variety of applications including video signalling and test equipment.

Specifications
Attribute Value
Gender Female
Mounting Type Panel Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Straight
Bulkhead Yes
Operating Frequency 4GHz
Body Plating Nickel
Polarity Normal
Contact Material Brass
Contact Plating Gold
600 In stock - FREE next working day delivery available
Price Each (In a Pack of 50)
£ 2.26
(exc. VAT)
£ 2.71
(inc. VAT)
Units
Per unit
Per Pack*
50 - 250
£2.26
£113.00
300 - 500
£2.131
£106.55
550 - 1200
£2.017
£100.85
1250 - 2450
£1.917
£95.85
2500 +
£1.888
£94.40
*price indicative
