RS PRO 50Ω Straight Cable Mount UHF Connector, Plug, RG58

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

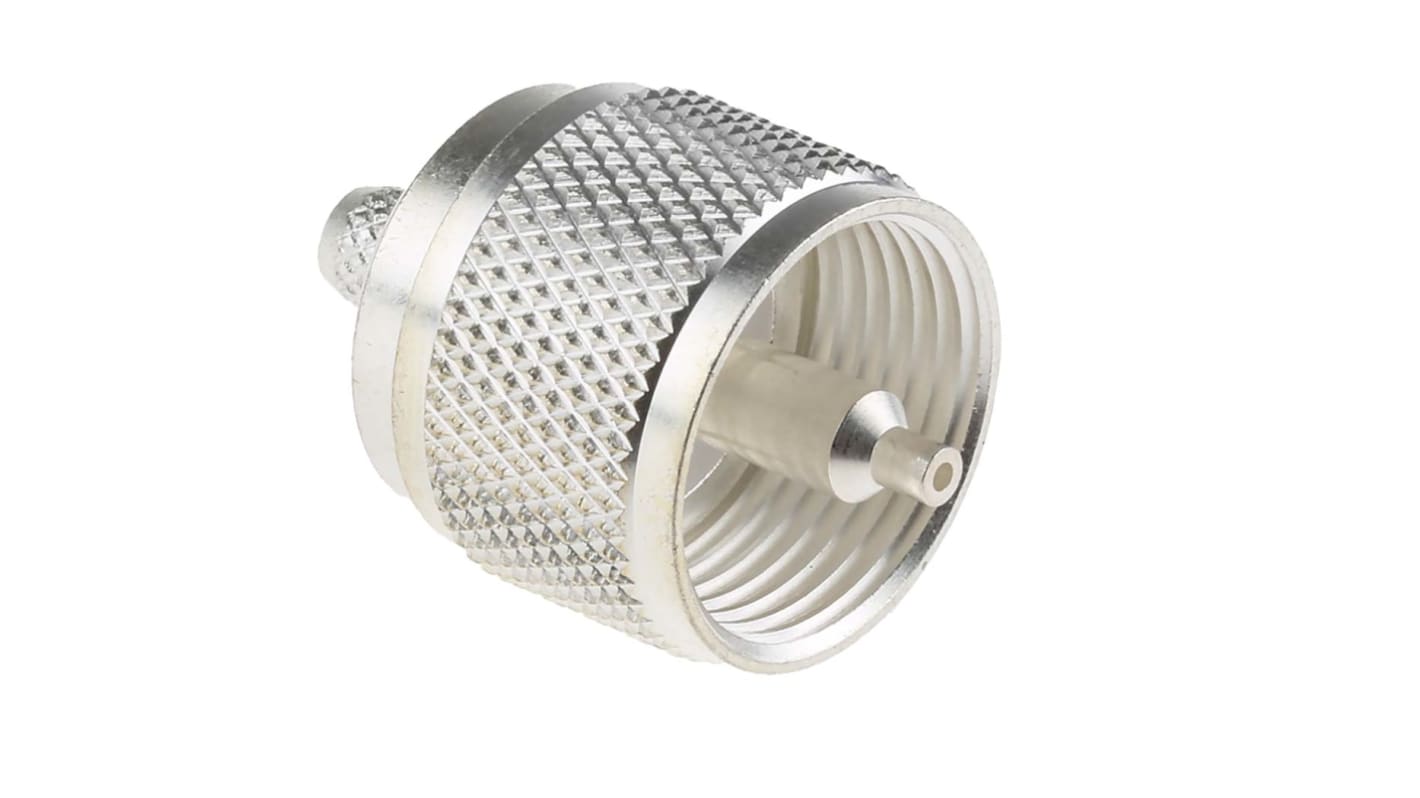

RS 50 Ohm UHF RF Coaxial Crimp Plug Connector

50 Ohm UHF RF coaxial plug connector with a crimp termination. This 50 Ohm RF coax plug has a silver plated brass body and centre contact and is for use with RG58/U coaxial cable.

RS Standard

A series of connectors to MIL specifications with high quality materials and PTFE insulation. Non-constant impedance design, suitable for use up to 500V peak and 200MHz, or up to 500MHz with diminished performance.

For 50Ω cable use crimp tool stock no. 456-431, and for 75Ω cable use crimp stock no. 456-447 or combined tool stock no. 453-870

Specifications
Attribute Value
Coaxial Connector Type UHF Connector
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG58
Size Standard
Operating Frequency 300MHz
Body Plating Silver
Contact Material Brass
Contact Plating Silver
3527 In stock - FREE next working day delivery available
Price Each
£ 2.54
(exc. VAT)
£ 3.05
(inc. VAT)
Units
Per unit
1 - 14
£2.54
15 - 49
£2.33
50 - 99
£2.21
100 - 249
£2.09
250 +
£1.99
