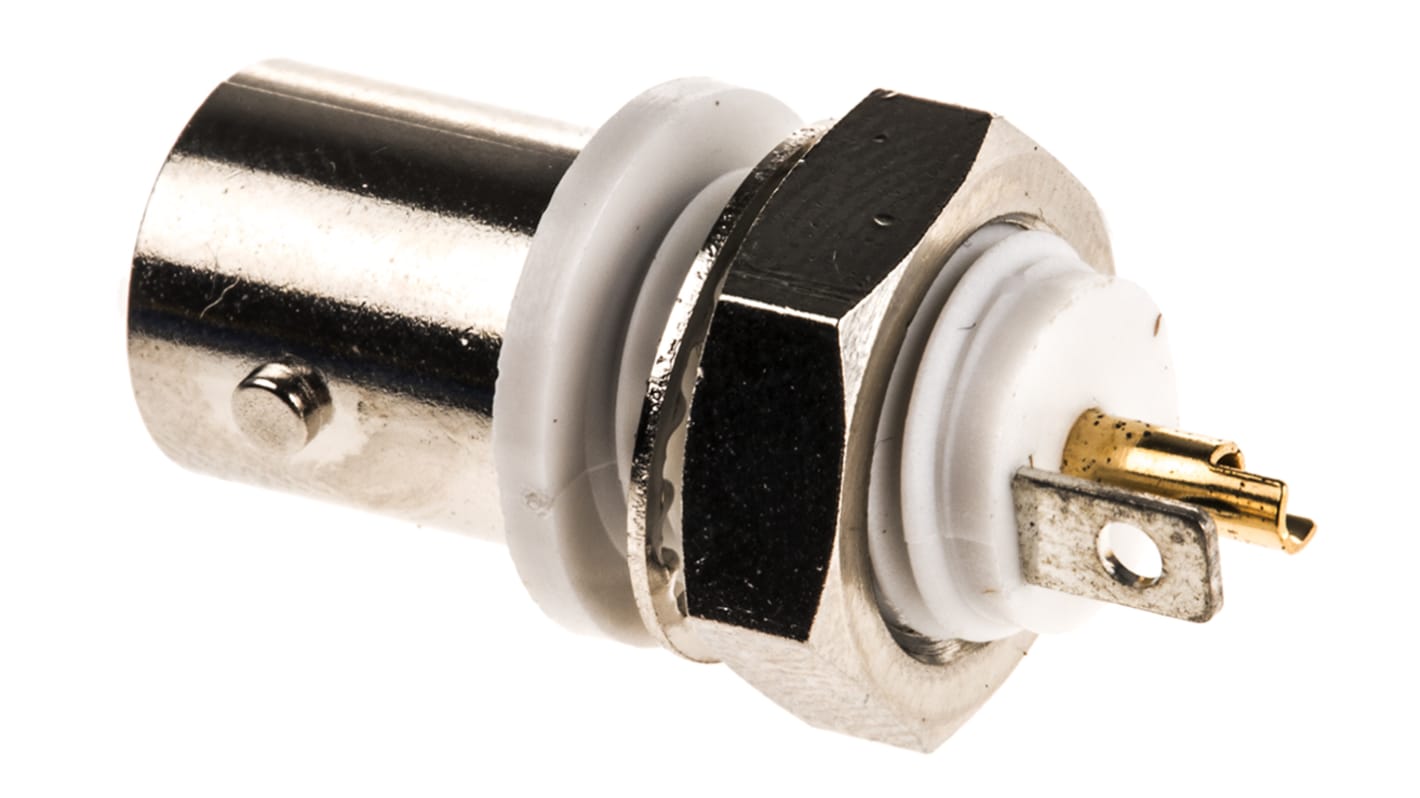

TE Connectivity Greenpar Series, jack Panel Mount BNC Connector, 75Ω, Solder Termination, Straight Body
- RS Stock No.:
- 512-1196
- Mfr. Part No.:
- 5-1634504-2
- Brand:
- TE Connectivity
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each
£3.57
(exc. VAT)
£4.28
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £3.57 |
| 10 - 24 | £3.20 |
| 25 - 49 | £2.89 |
| 50 - 99 | £2.60 |
| 100 + | £2.34 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 512-1196
- Mfr. Part No.:
- 5-1634504-2
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
TE Connectivity 75 Ohm ZDC/BNC RF Coaxial Insulated Bulkhead Socket Connector
75 Ohm ZDC BNC RF coaxial insulated bulkhead socket connectors with bayonet coupling, solder termination and ground tab. These 75 Ohm BNC RF coax insulated bulkhead socket connectors are front panel mounting with a PBT insulator, thermoplastic dielectric, a nickel plated zinc die cast body and a gold plated centre contact.
TE Connectivity BNC RF Coaxial Connectors
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | Panel Mount |
| Impedance | 75Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Bulkhead | Yes |
| Operating Frequency | 0 to 4GHz |
| Minimum Operating Temperature | -55°C |
| Body Plating | Nickel |
| Maximum Operating Temperature | +85°C |
| Series | Greenpar |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel over Copper |
