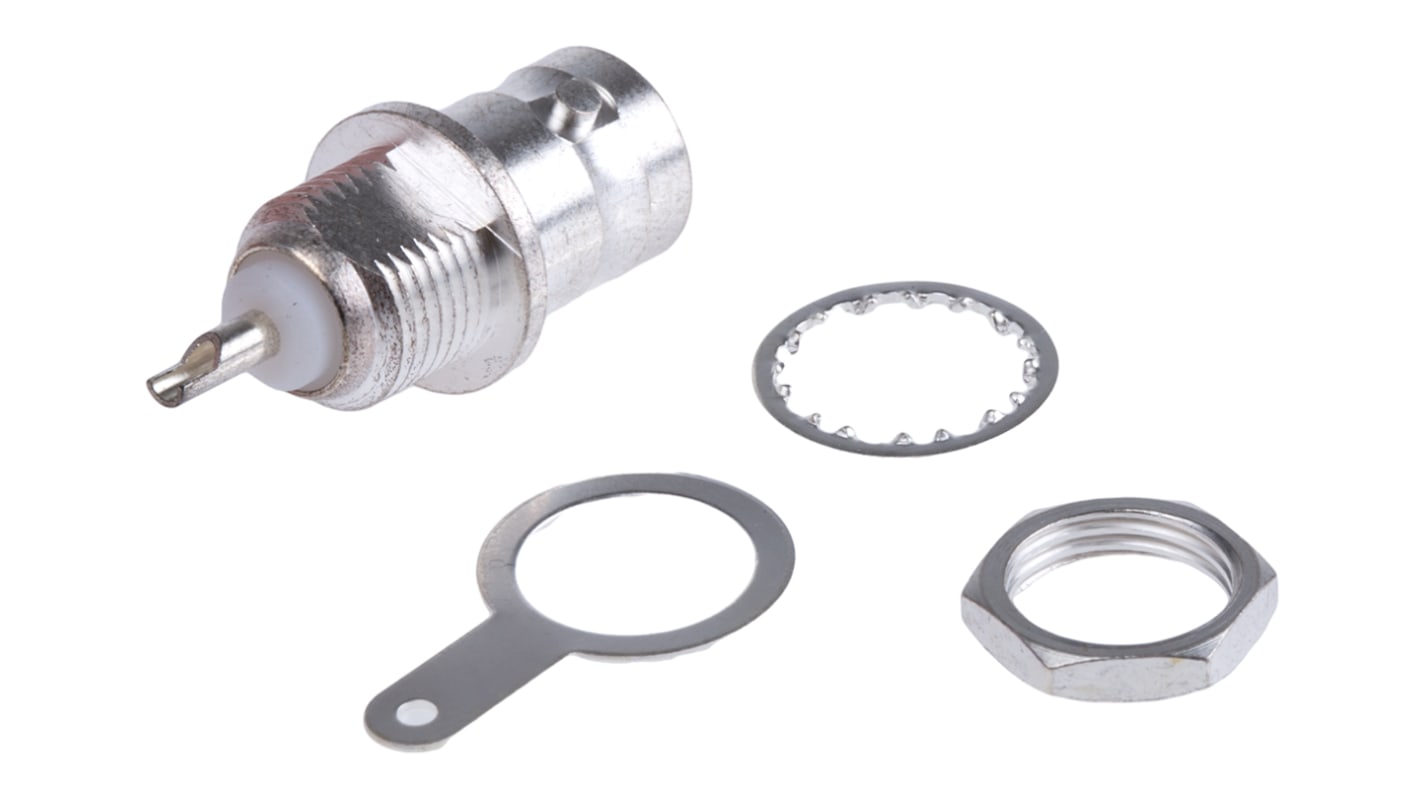

TE Connectivity, jack Panel Mount BNC Connector, 75Ω, Solder Termination, Straight Body
- RS Stock No.:
- 511-9913
- Mfr. Part No.:
- 1-1337504-0
- Brand:
- TE Connectivity
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 511-9913
- Mfr. Part No.:
- 1-1337504-0
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Bulkhead sockets
Note
Panel cut-out tooling :- stock no. 607-718 for use with Bulkhead/Insulated sockets.
TE Connectivity BNC Silver Plated
Brass bodied connectors with PTFE insulators. For information regarding appropriate crimp tooling refer to the Connector/Cable/Tooling Compatibility table at the beginning of this section.
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | Panel Mount |
| Impedance | 75Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Bulkhead | Yes |
| Operating Frequency | 0 to 2GHz |
| Minimum Operating Temperature | -65°C |
| Body Plating | Silver |
| Maximum Operating Temperature | +165°C |
| Contact Material | Brass |
| Contact Plating | Silver |
