Radiall Straight 50Ω Cable Mount Coaxial Connector, Plug, Clamp Termination, RG141, RG142, RG223, RG400, RG58

  • RS Stock No. 295-6618
  • Mfr. Part No. R161006000W
  • Brand Radiall
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

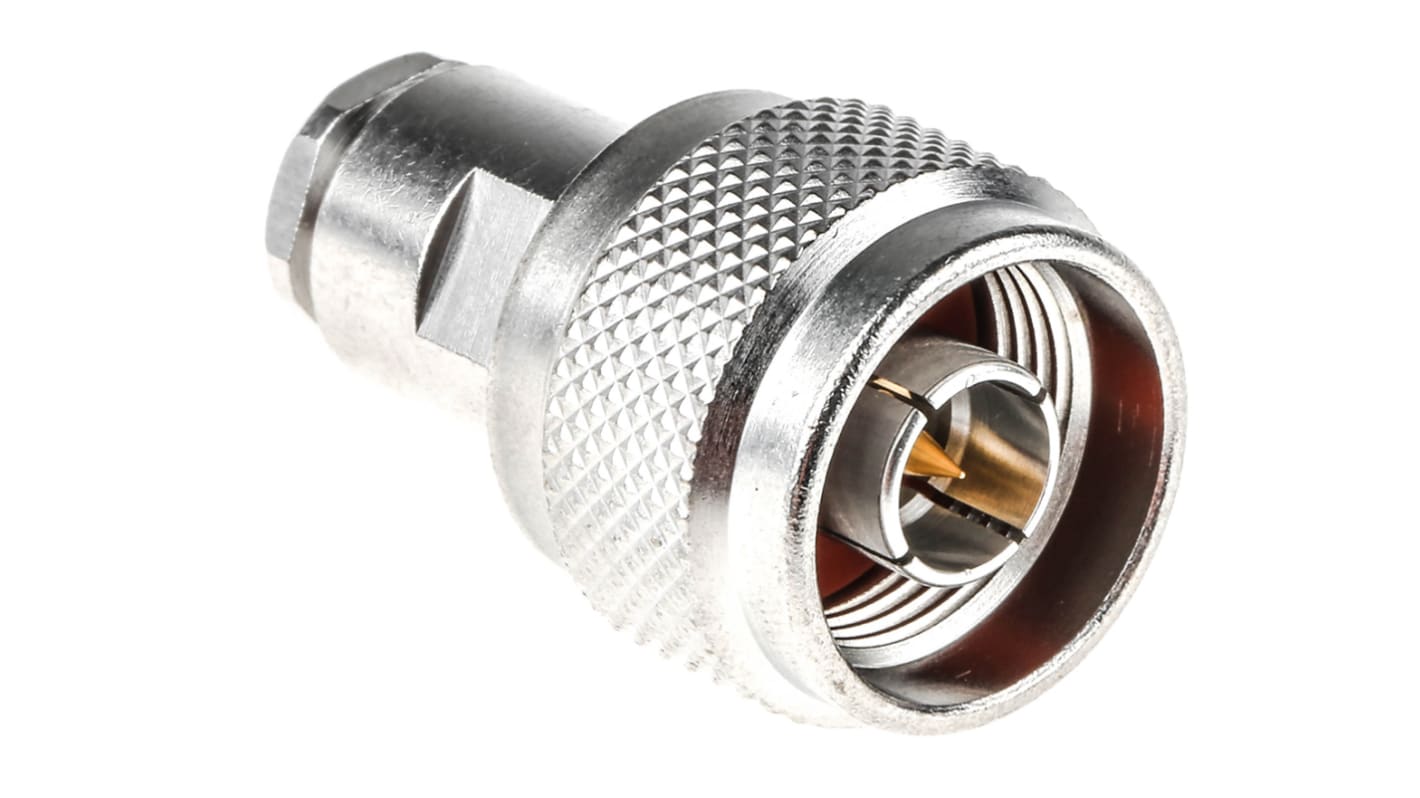

Radiall 50 Ohm N Type RF Coaxial Cable Plug, Clamp

50 Ohm N type RF coaxial cable plug with a clamp style cable termination. This 50 Ohm N type RF coaxial cable plug has a PTFE dielectric, a brass body with a BBR 2 (copper-tin-zinc base alloy) plating and a gold plated centre contact. The RF coaxial cable types that this 50 Ohm N type RF coaxial cable plug can be used with are as follows: RG-58, RG-141, RG-142, RG-142 FTX, RG-223, RG-400, KX 15. KX 23

Radiall

BBR (Bronze Blanc Radiall), white bronze plated 50Ω ’N’ connectors meet the demands for reliable, low loss performance required in high frequency communication applications.

Low intermodulation
Non-magnetic and corrosion resistant
Wear and scratch resistant

Specifications
Attribute Value
Gender Male
Coaxial Connector Type N Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Clamp
Body Orientation Straight
Cable Type RG141, RG142, RG223, RG400, RG58
Operating Frequency 0 → 11GHz
Minimum Operating Temperature -55°C
Maximum Operating Temperature 155°C
Contact Material Brass
Contact Plating Gold, Silver
811 In stock - FREE next working day delivery available
Price Each
£ 14.32
(exc. VAT)
£ 17.18
(inc. VAT)
Units
Per unit
1 - 14
£14.32
15 - 49
£11.66
50 - 99
£11.23
100 - 249
£10.79
250 +
£10.37
