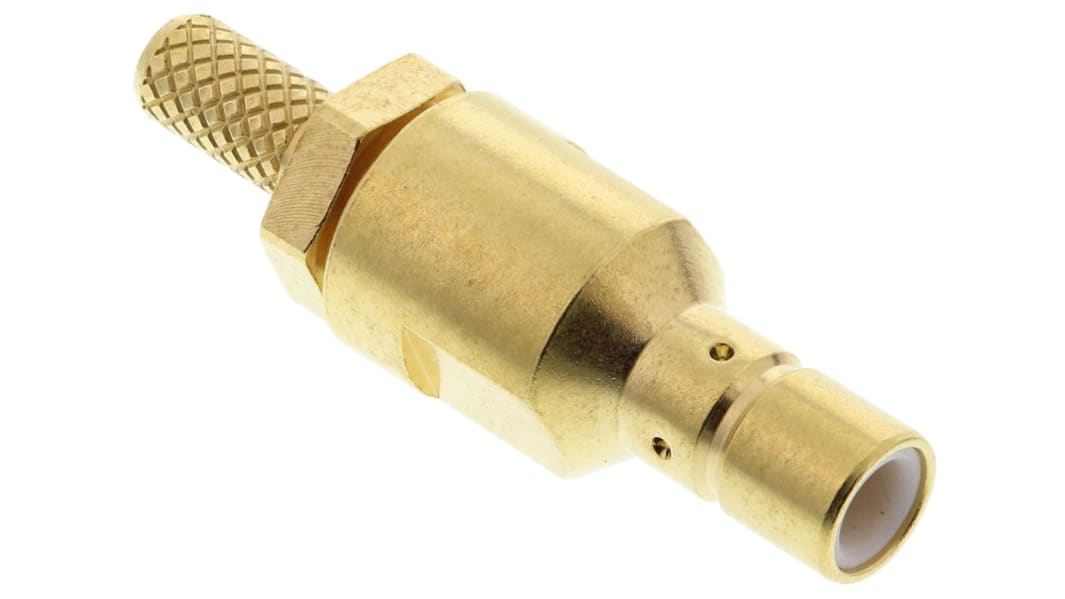

Radiall Straight 50Ω Cable Mount Coaxial Connector, jack, Gold, Crimp Termination, RG179, RG187, RG188, RG316

  • RS Stock No. 295-5621
  • Mfr. Part No. R114239000W
  • Brand Radiall
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Straight Crimp Jack

Note

Jack has male contact.

Approvals

MIL-C-309012

Radiall - SMB Gold Plated

Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.

Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778

Specifications
Attribute Value
Gender Female
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG179, RG187, RG188, RG316
Operating Frequency 0 → 4GHz
Body Plating Gold
Minimum Operating Temperature -65°C
Maximum Operating Temperature 165°C
Contact Material Brass
Contact Plating Gold over Nickel
87 In stock - FREE next working day delivery available
Price Each
£ 5.41
(exc. VAT)
£ 6.49
(inc. VAT)
Units
Per unit
1 - 14
£5.41
15 - 49
£5.00
50 - 99
£4.65
100 - 249
£4.36
250 +
£4.20
