Radiall Straight 50Ω Cable Mount Coaxial Connector, jack, Gold, Clamp Termination, RG179, RG187, RG188, RG316

  • RS Stock No. 295-5536
  • Mfr. Part No. R114205000W
  • Brand Radiall
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Radiall 50 Ohm SMB RF Coaxial Cable Clamp Jack Connector

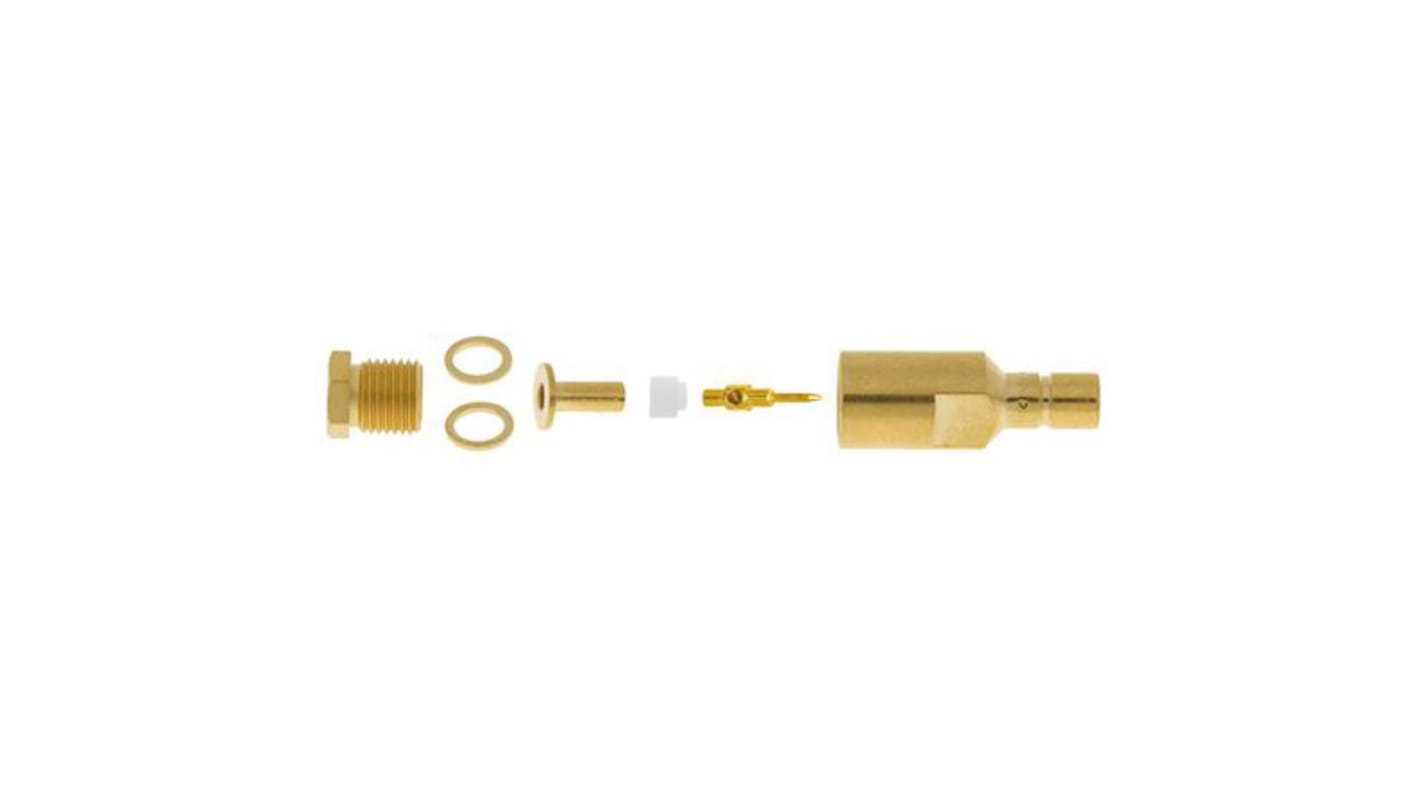

50 ohm SMB RF coaxial jack connector with snap-on mating and cable clamp connection. This RF coax SMB straight cable clamp jack has a gold plated nickel body, gold plated male centre contact and is suitable for use with various RF coaxial cable types including RG 188, RG 187, RG 179 and RG 316.

Note

Jack has male contact.

Approvals

MIL-C-309012

Radiall - SMB Gold Plated

Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.

Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778

Specifications
Attribute Value
Gender Female
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Clamp
Body Orientation Straight
Cable Type RG179, RG187, RG188, RG316
Operating Frequency 0 → 4GHz
Minimum Operating Temperature -65°C
Body Plating Gold
Maximum Operating Temperature 165°C
Contact Material Brass
Contact Plating Gold over Nickel
