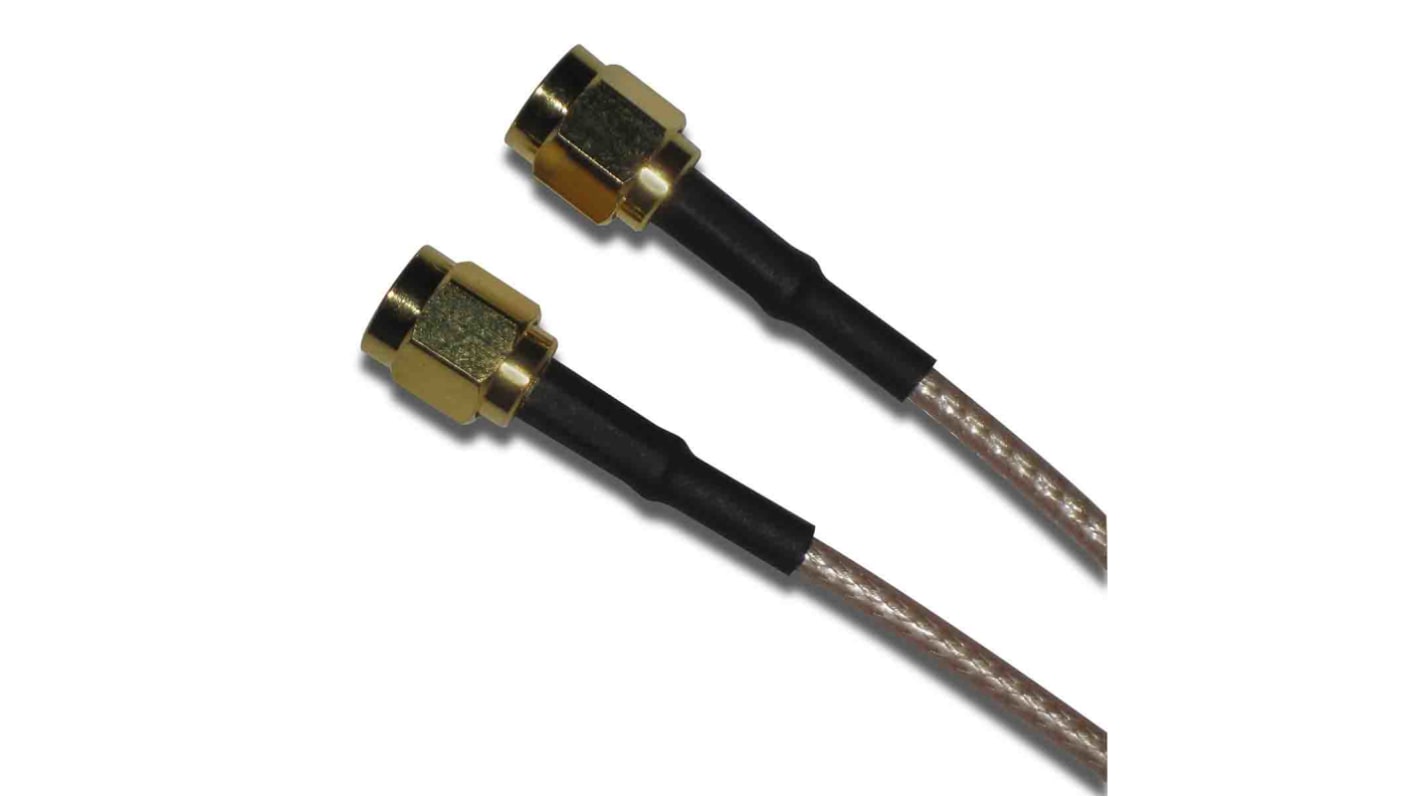

Amphenol RF SMA Series, Plug Cable Mount SMA Connector, 50Ω, Straight Body
- RS Stock No.:
- 194-3204
- Mfr. Part No.:
- 135101-01-12.00
- Brand:
- Amphenol RF
Available to back order for despatch when stock is available
Added
Price Each (In a Bag of 100)
£10.503
(exc. VAT)
£12.604
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 + | £10.503 | £1,050.30 |
| *price indicative | ||
- RS Stock No.:
- 194-3204
- Mfr. Part No.:
- 135101-01-12.00
- Brand:
- Amphenol RF
Technical Reference
Legislation and Compliance
RoHS Status: Exempt
- COO (Country of Origin):
- MX
Product Details
Amphenol SMA Series
Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 26.5 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and - 36 threaded coupling, which offers high performance in a compact design. For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Built in accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
Features and Benefits
- Light weight, compact and vibration proof design
- Low cost commercial grade (Brass SMA) available in nickel or gold plating
- Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables
Applications
- Base stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
Amphenol SMA Connectors
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | SMA Connector |
| Gender | Male |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Body Orientation | Straight |
| Cable Type | RG316 |
| Series | SMA |
