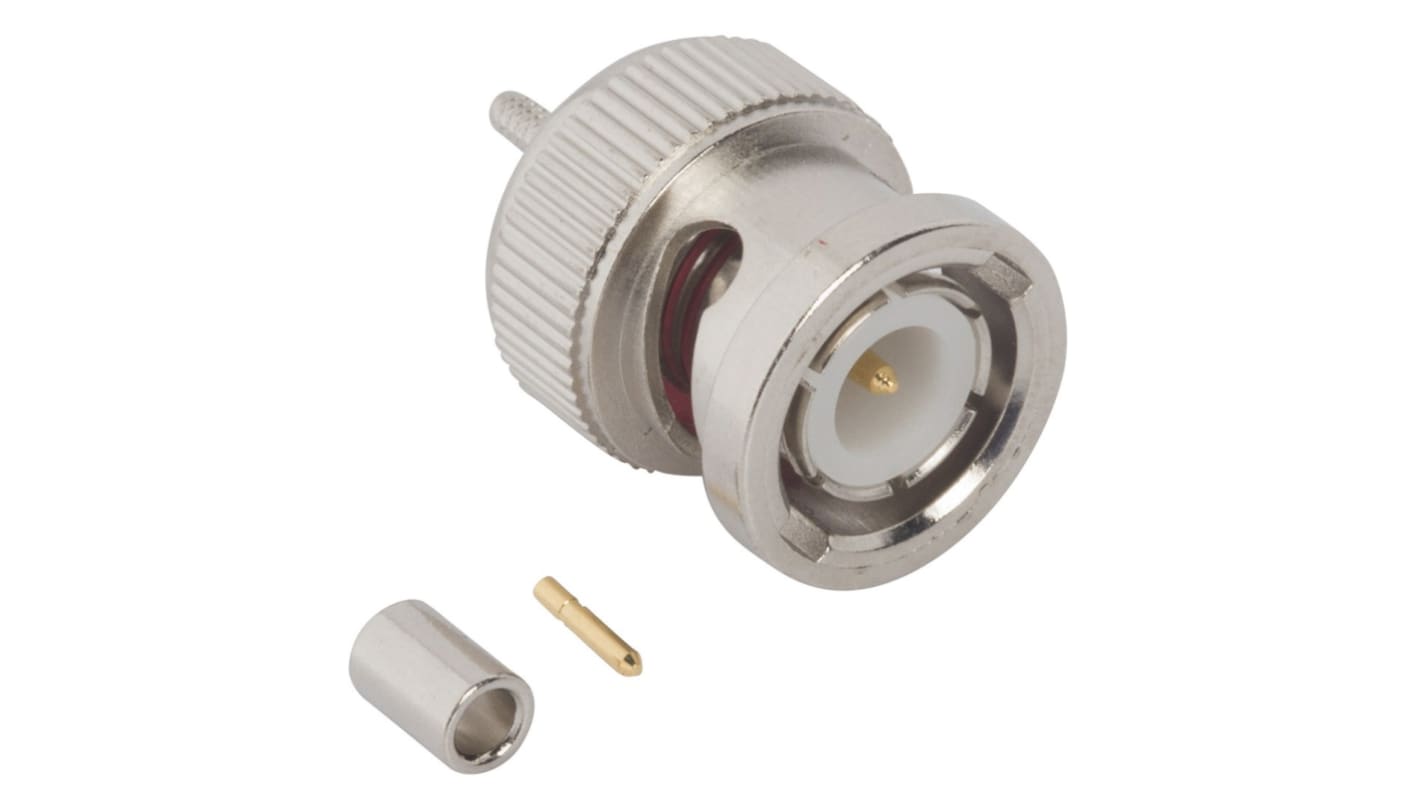

Amphenol 50Ω Straight Cable Mount BNC Connector, Plug

  • RS Stock No. 144-0896
  • Mfr. Part No. 112516
  • Brand Amphenol
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The Connex BNC connectors are made to a high quality level. Medium size coaxial connectors with bayonet lock. 50 ohm impedance for applications up to 4 GHz and 75 ohm impedance up to 2 GHz. 75 Ohm Series Within the internationally standardized BNC mating face dimensions, a perfect 75 ohm characteristic impedance cannot be realized. However, at frequencies up to 1000 MHz, the small impedance deviation is negligible for practical applications. Connex true 75 ohm connectors with a typical VSWR reading of 1.06:1 at 2000 MHz are identified by an asterisk following the part number. All 75 ohm BNC connectors and 50 ohm BNC connectors are intermateable without restrictions.

Bayonet coupling mechanism provides positive, quick mating and un-mating
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications

RF Connector, BNC Straight Crimp Plug for RG-178, RG-196, 50 Ohm

Specifications
Attribute Value
Gender Male
Coaxial Connector Type BNC Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type M17/93-RG178, RG178, RG178A, RG178B, RG196, RG196A
Size Standard
Bulkhead No
Operating Frequency 4GHz
Minimum Operating Temperature -40°C
Body Plating Nickel
Maximum Operating Temperature +85°C
Polarity Normal
Series BNC
Contact Material Phosphor Bronze
Contact Plating Gold
28 In stock - FREE next working day delivery available
Price Each
£ 2.69
(exc. VAT)
£ 3.23
(inc. VAT)
Units
Per unit
1 - 9
£2.69
10 - 19
£2.54
20 - 49
£2.47
50 - 99
£2.41
100 +
£2.36
