Rosenberger 50Ω Right Angle PCB Mount MCX ConnectorBulkhead Fitting, jack, Coaxial

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

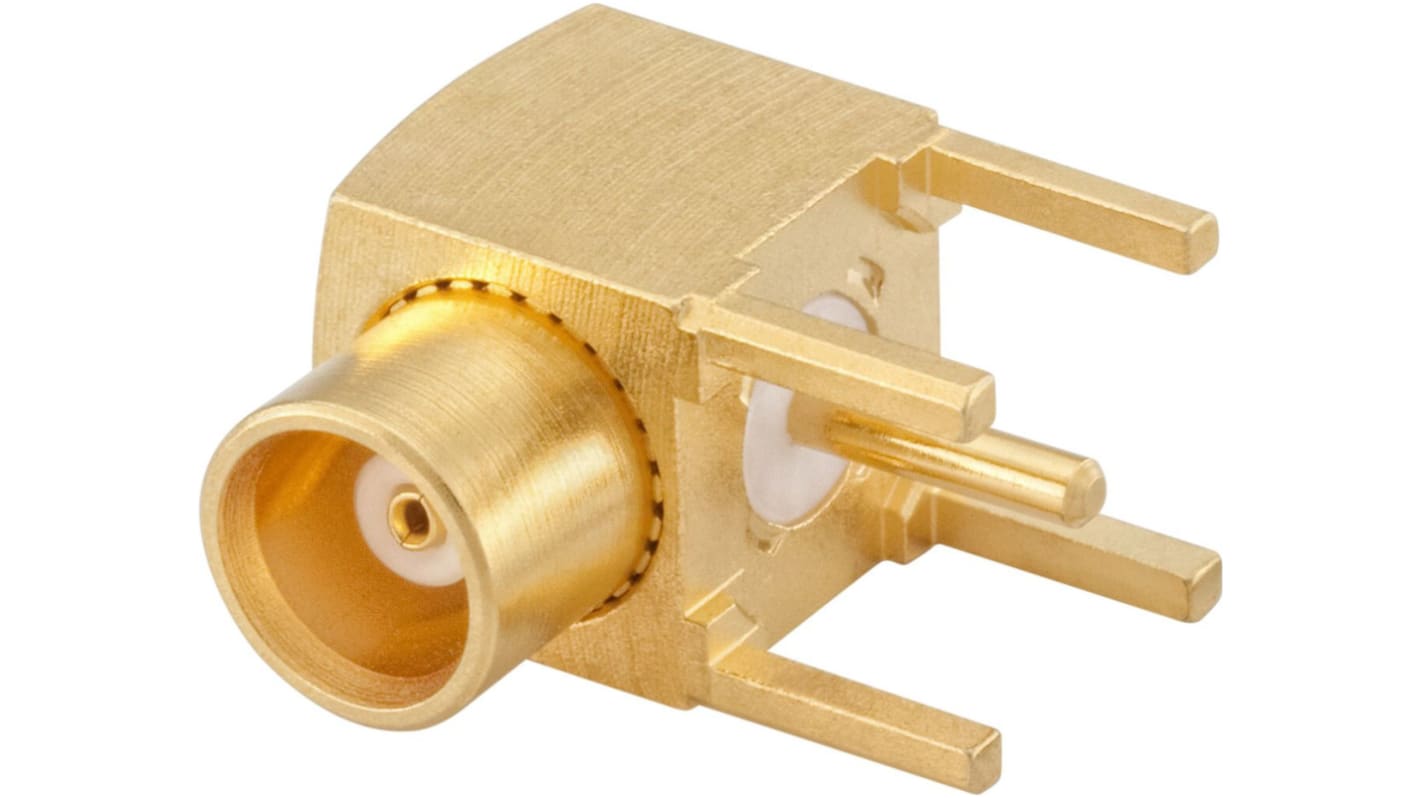

Rosenberger MCX 50Ω PCB Mount Jacks

From Rosenberger, a series of superior quality 50 Ω MCX PCB mount jacks. This range of MCX jacks have gold plated beryllium copper centre contacts and a PTFE dielectric. These micro- miniature connectors feature a secure snap together mechanism. Compact in design, 30% smaller than conventional SMB connectors making them ideal for space limited applications.

Features and Benefits

Interface according to IEC60169-36 and CECC22220
Frequency range DC to 6 GHz
Secure snap-on coupling
Compact size, 30% smaller than SMB

Applications

Instrumentation
GPS
PC/LAN
Base stations
Wireless/ networks antenna
Telecommunications
Automotive

Rosenberger MCX Range

Specifications
Attribute Value
Coaxial Connector Type MCX Connector
Gender Female
Mounting Type PCB Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Right Angle
Cable Type Coaxial
Size Standard
Bulkhead Yes
Operating Frequency DC to 6GHz
Contact Material Brass
Contact Plating Gold
Series Number 29
32 In stock - FREE next working day delivery available
Price Each
£ 8.36
(exc. VAT)
£ 10.03
(inc. VAT)
Units
Per unit
1 - 9
£8.36
10 - 24
£7.11
25 - 49
£6.27
50 +
£5.43
