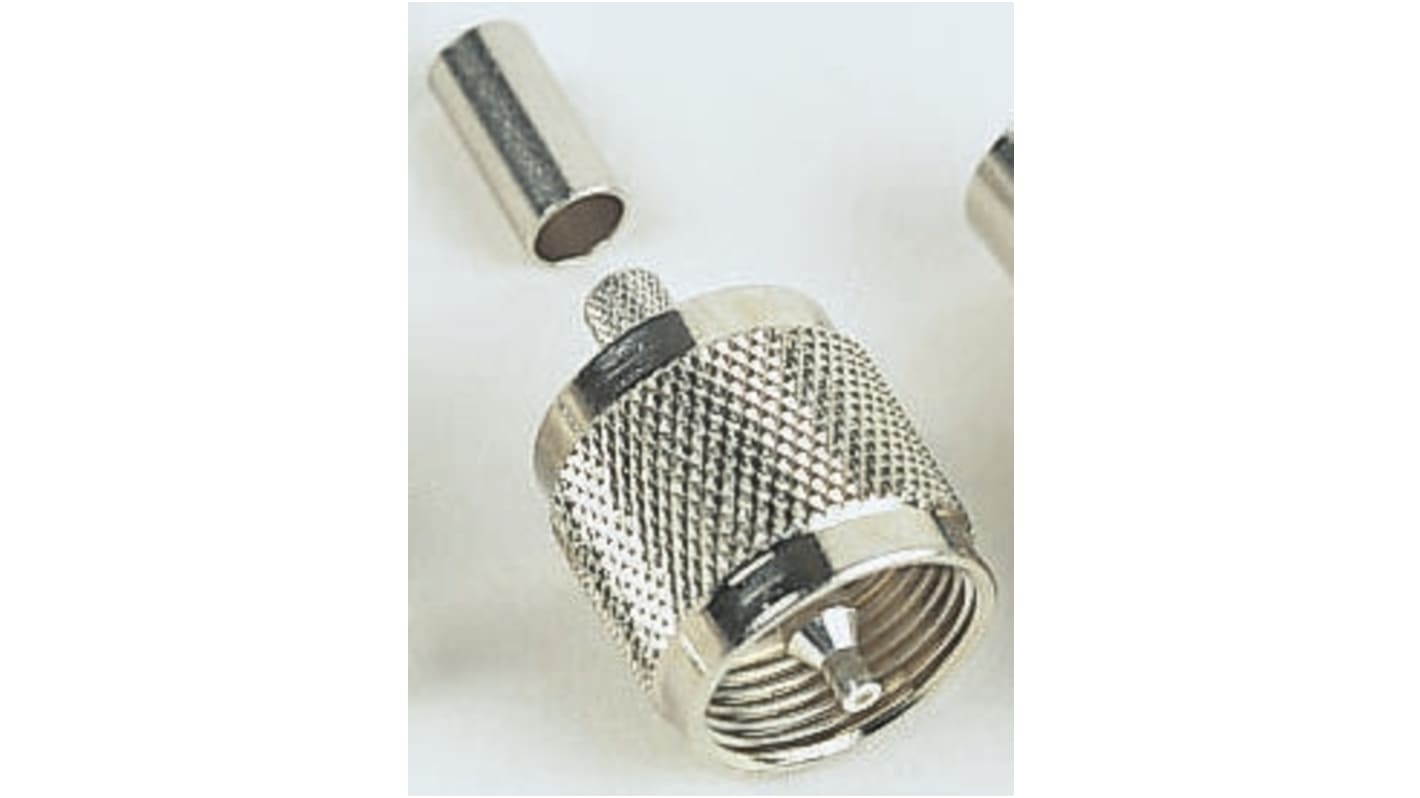

Telegartner 50Ω Straight Cable Mount UHF Connector, Plug, RG59 B/U

  • RS Stock No. 112-2583
  • Mfr. Part No. J01040A0658
  • Brand Telegartner
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

UHF plugs

//media.rs-online.com/t_line/LD112200-02.gif
//media.rs-online.com/t_line/LD112200-03.gif
//media.rs-online.com/t_line/LD112200-04.gif
//media.rs-online.com/t_line/LF112200-10.gif

IEC 169-12 nickel-plated brass UHF connectors

A wide range of low-cost connectors for low-frequency applications up to 200 MHz. These connectors are available in both crimp and locking versions, and can be used with cables of different diameters. The range of available adaptors also allows them to be used with small-diameter coaxial cables. Bodies are in nickel-plated brass and the internal contact springs are in beryllium copper.
Connectors are delivered with mounting instructions.

Specifications
Attribute Value
Coaxial Connector Type UHF Connector
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG59 B/U
Operating Frequency 200MHz
Contact Material Brass, Lead Alloy
Contact Plating Copper, Nickel Alloy, Silver Alloy
Available to back order for despatch 28/10/2020, delivery within 1 working days
Price Each
£ 9.11
(exc. VAT)
£ 10.93
(inc. VAT)
Units
Per unit
1 - 14
£9.11
15 - 49
£8.10
50 - 99
£5.35
100 - 249
£4.99
250 +
£4.07
Not available for guaranteed pre 9am/10am delivery
