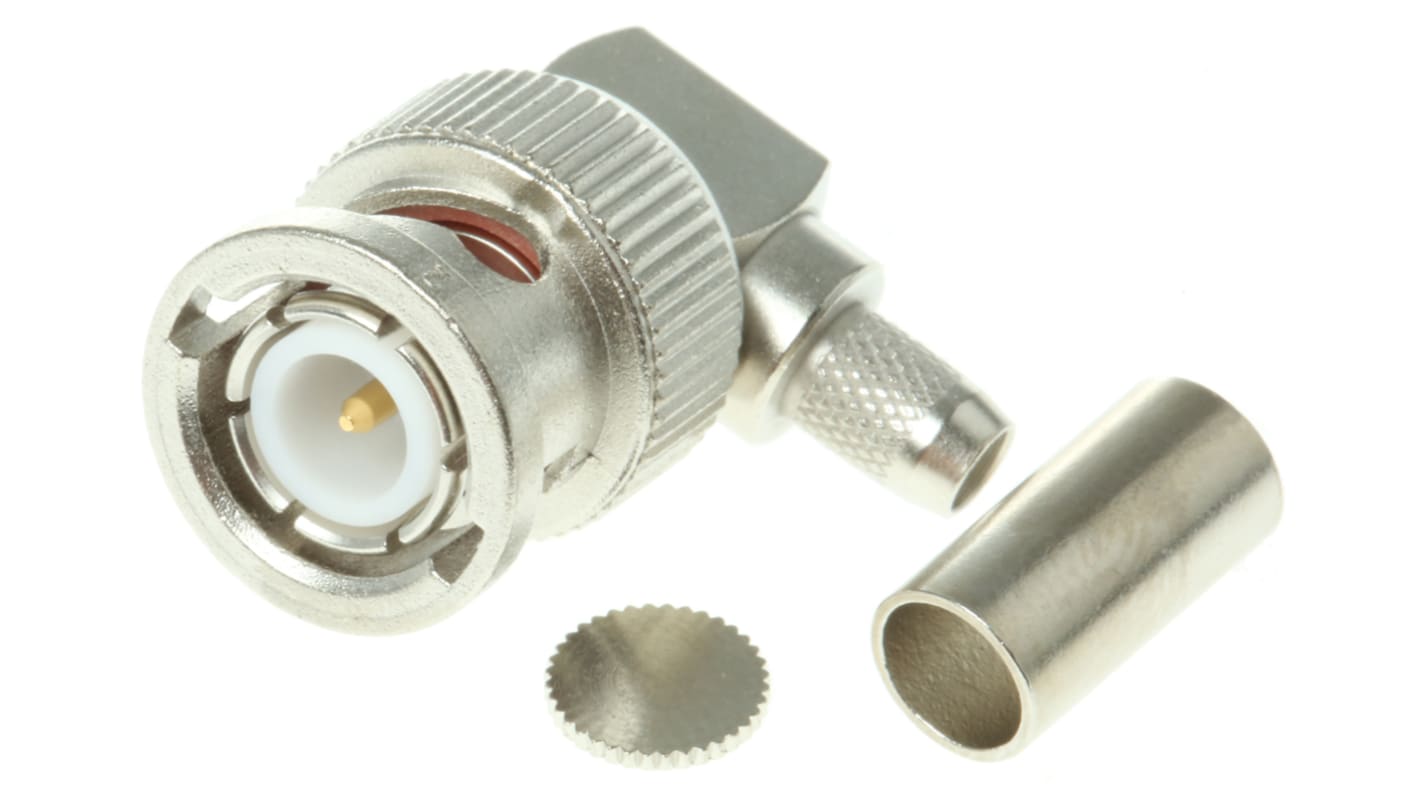

Telegartner 50Ω Right Angle Cable Mount BNC Connector, Plug, RG58 C/U

  • RS Stock No. 112-1883
  • Mfr. Part No. J01000A1257
  • Brand Telegartner
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Telegartner 50 Ω and 75 Ω Right Angled BNC Crimp Plugs

From Telegartner, a range of 50 Ω and 75 Ω BNC right angled crimp plugs. The BNC cable mount plugs have gold plated beryllium copper contacts and a PTFE insulator. Featuring a simple bayonet coupling mechanism connector can be used up to 4 GHz. Requiring only a quarter turn to connect and disconnect this connection method makes the BNC connector one of the most versatile connectors on the market today.

Features and Benefits

• Bayonet coupling
• IP54 rated between a mated plug and jack
• Up to 4 GHz

Applications

• Signal
• Data
• Video transmission

Telegärtner BNC RF Connectors

Specifications
Attribute Value
Gender Male
Coaxial Connector Type BNC Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Right Angle
Cable Type RG58 C/U
Bulkhead No
Operating Frequency 0 to 4GHz
Body Plating Nickel
Minimum Operating Temperature -65°C
Maximum Operating Temperature +165°C
Contact Material Beryllium Copper
Contact Plating Gold
475 In stock - FREE next working day delivery available
Price Each
£ 4.70
(exc. VAT)
£ 5.64
(inc. VAT)
Units
Per unit
1 - 24
£4.70
25 - 99
£4.40
100 - 249
£4.07
250 - 499
£3.92
500 +
£3.69
