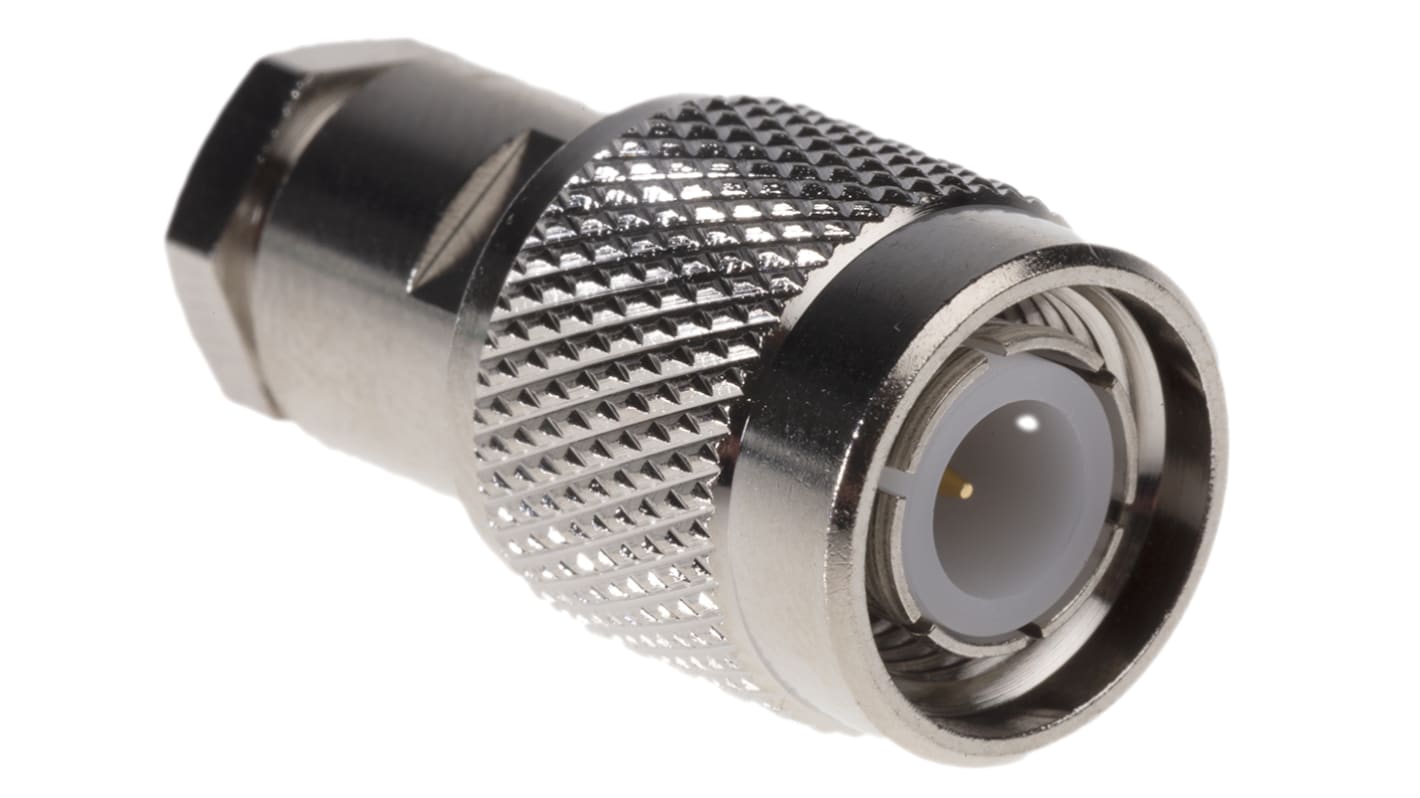

RS PRO Straight 50Ω Cable Mount Coaxial Connector, Plug, Nickel, Solder Termination, RG58/U

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

RS 50 Ohm RF Coaxial TNC Cable Clamp Plug Connectors

50 Ohm RF coaxial TNC plug connectors with a cable clamp termination. These 50 Ohm RF coax cable mount clamp plugs have a nickel plated brass body, gold plated centre contact, rubber gasket and are suitable for use with a variety of RF coaxial cable types.

Approvals

-

RS TNC RF Coaxial Connectors

A selection of popular cable and panel mount 50Ω TNC Connectors

Specifications
Attribute Value
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Straight
Cable Type RG58/U
Operating Frequency 0 → 11GHz
Body Plating Nickel
Polarity Normal
Contact Material Copper Alloy
Contact Plating Gold
691 In stock - FREE next working day delivery available
Price Each
£ 5.69
(exc. VAT)
£ 6.83
(inc. VAT)
Units
Per unit
1 - 14
£5.69
15 - 49
£5.17
50 - 99
£4.83
100 - 249
£4.38
250 +
£4.20
