- RS Stock No.:
- 194-5970
- Mfr. Part No.:
- 65503260515304
- Brand:
- Wurth Elektronik
20 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 10)
£20.99
(exc. VAT)
£25.19
(inc. VAT)
Units | Per unit | Per Bag* |
10 - 40 | £20.99 | £209.90 |
50 - 90 | £19.081 | £190.81 |
100 + | £17.484 | £174.84 |
*price indicative |
- RS Stock No.:
- 194-5970
- Mfr. Part No.:
- 65503260515304
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

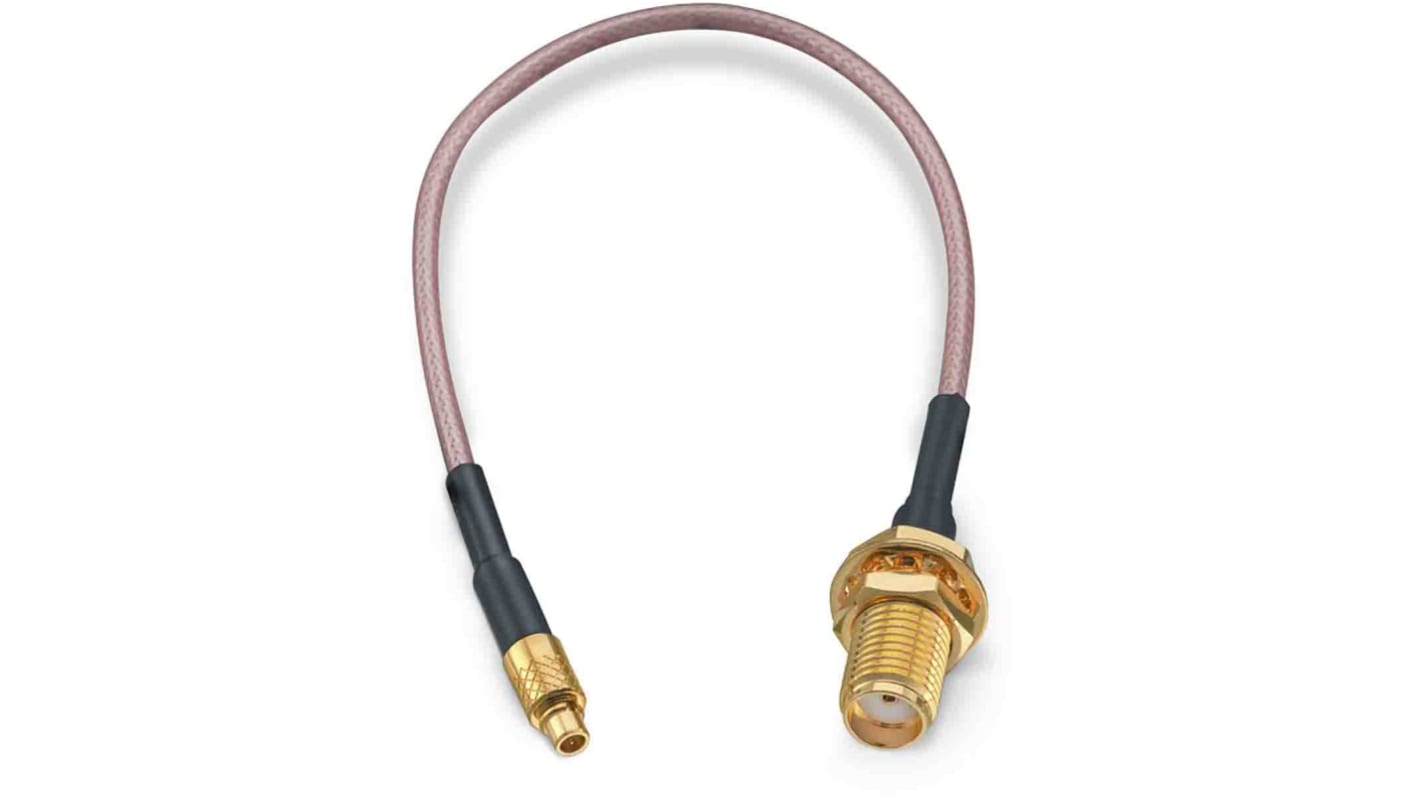

SMA Bulkhead Jack to MMCX Straight Plug, Flexible Cable RG-178/U, WR-CXASY
Flexible Cable RG-178/U with a straight SMA Jack to a straight MMCX Plug. Frequenzy is up to 3 GHz with an Impedance of 50 Ω and an Insertion Loss of 0.83 dB max.. The Cable length is 152.4 mm with a minimum Bend Radius of 10.2 mm and a Nominal Outer Cable Diameter of 1.8 mm.
Flexible Cable RG-178/U with a straight SMA Jack to a straight MMCX Plug. Frequenzy is up to 3 GHz with an Impedance of 50 Ω and an Insertion Loss of 0.83 dB max.. The Cable length is 152.4 mm with a minimum Bend Radius of 10.2 mm and a Nominal Outer Cable Diameter of 1.8 mm.
Specifications
Attribute | Value |
---|---|
Connector 1 | SMA |
Terminated/Unterminated | Terminated |
Connector 2 | MMCX |
Coaxial Type | RG178 |
Connector 1 Gender | Female |
Connector 2 Gender | Male |
Connector 1 Orientation | Straight |
Outer Diameter | 1.8mm |
Characteristic Impedance | 50 Ω |
Attenuation | 0.83 dB |
Length | 152.4mm |
Operating Temperature Range | -55 → +155 °C |
Minimum Operating Temperature | -55°C |
Conductor Material | Beryllium Copper |
Insulation Material | PTFE |
Shielding | Braid |
Maximum Operating Temperature | +155°C |
