- RS Stock No.:
- 181-0084
- Mfr. Part No.:
- 65503503615305
- Brand:
- Wurth Elektronik
- RS Stock No.:
- 181-0084
- Mfr. Part No.:
- 65503503615305
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

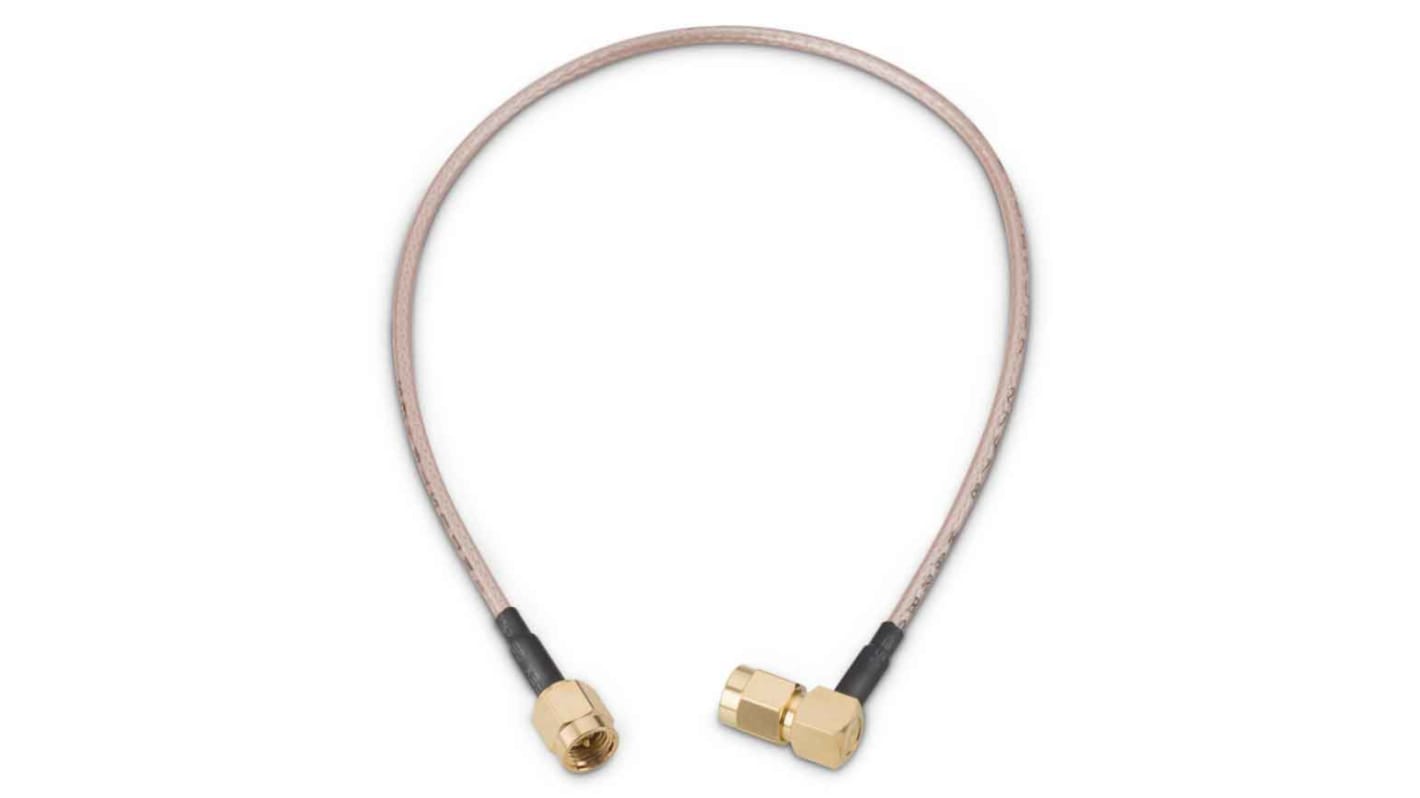

The Wurth Elektronic WR-CXASY is a straight SMA plug to right angle SMA plug, RG-316/U flexible cable having a braid cable shielding and a length of 152.4 mm. It has a brass body material.
RoHS compliant
Operating temperature ranges between -55°C upto +165°C
500 mating cycle
Minimum bend radius : 12.7 mm
Operating temperature ranges between -55°C upto +165°C
500 mating cycle
Minimum bend radius : 12.7 mm
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Terminated |
Connector 1 | SMA |
Coaxial Type | RG316 |
Connector 2 | SMA |
Connector 1 Gender | Male |
Connector 2 Gender | Male |
Outer Diameter | 2.49mm |
Characteristic Impedance | 50 Ω |
Attenuation | 0.7 dB |
Length | 152.4mm |
Sheath Colour | White |
Voltage Rating | 250 V ac |
Insulation Material | PTFE |
Minimum Operating Temperature | -55°C |
Shielding | Braid |
Maximum Operating Temperature | +165°C |
Operating Temperature Range | -55 → +165 °C |
Conductor Material | Brass |
