CAE Groupe Black Unterminated to Unterminated RG11A/U Coaxial Cable, 75 Ω 10.3mm OD 100m

  • RS Stock No. 227-062
  • Mfr. Part No. RG11AU
  • Brand CAE Groupe
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

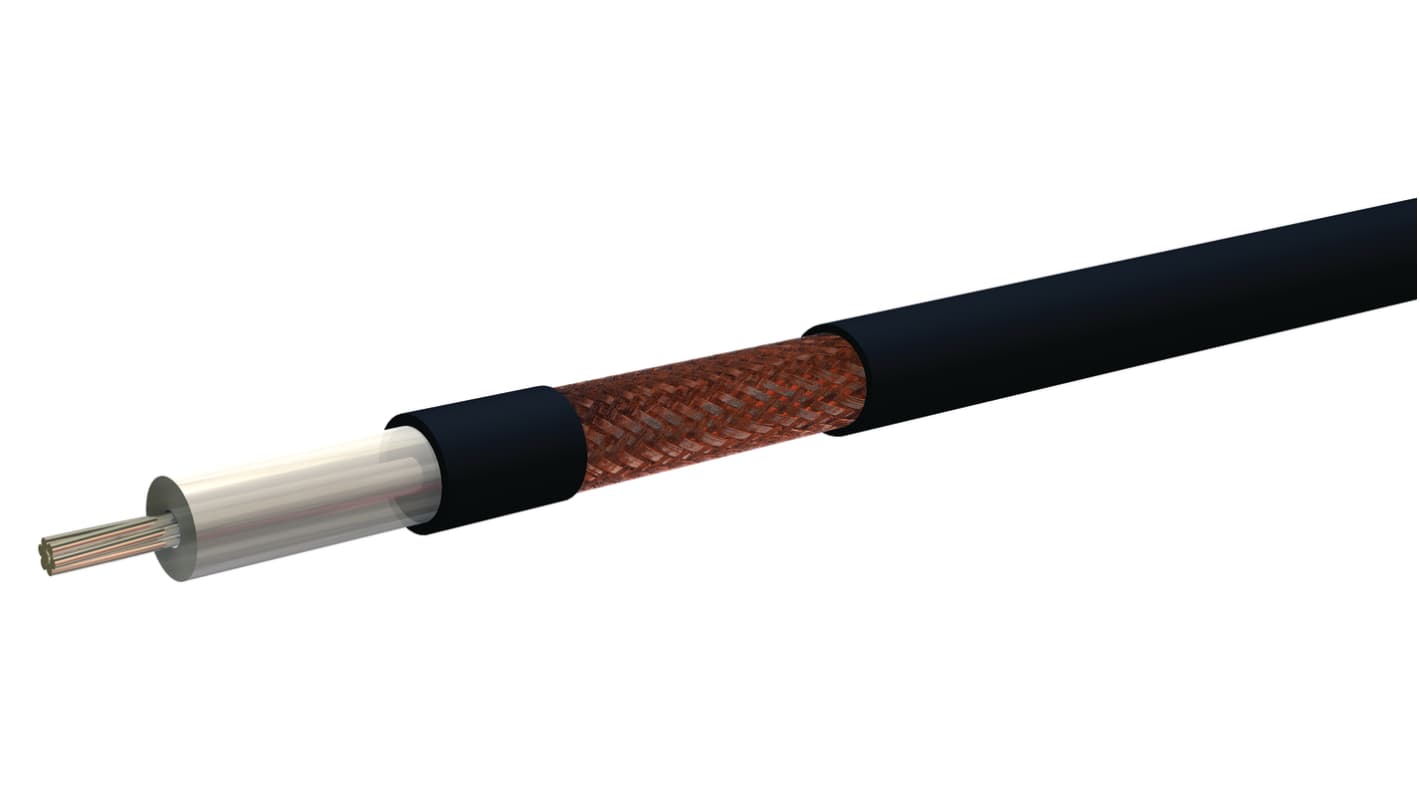

RG 11 A / U coaxial cable

Coaxial cable used for signal transmission in video-analog and video surveillance applications.

Standards

MIL-C-17

Specifications
Attribute Value
Terminated/Unterminated Unterminated
Connector A Unterminated
Connector B Unterminated
Coaxial Type RG11A/U
Characteristic Impedance 75 Ω
Outer Diameter 10.3mm
Sheath Colour Black
Conductor Strand Type Stranded
Attenuation 9.4 dB/100m @ 200MHz, 14.1 dB/100m @ 400MHz, 21.9 dB/100m @ 800MHz, 25.5 dB/100m @ 1GHz
Fire Behaviour Flame Retardant, Self-extinguishing
Reel Length 100m
3 in stock for FREE next working day delivery
8 available from Europe for delivery within 1 working day(s).
Price 1 Reel of 100 Metre(s)
£ 138.38
(exc. VAT)
£ 166.06
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 +
£138.38
£1.384
*price indicative
