- RS Stock No.:
- 295-7992
- Mfr. Part No.:
- R141704000W
- Brand:
- Radiall
- RS Stock No.:
- 295-7992
- Mfr. Part No.:
- R141704000W
- Brand:
- Radiall
Legislation and Compliance
Product Details

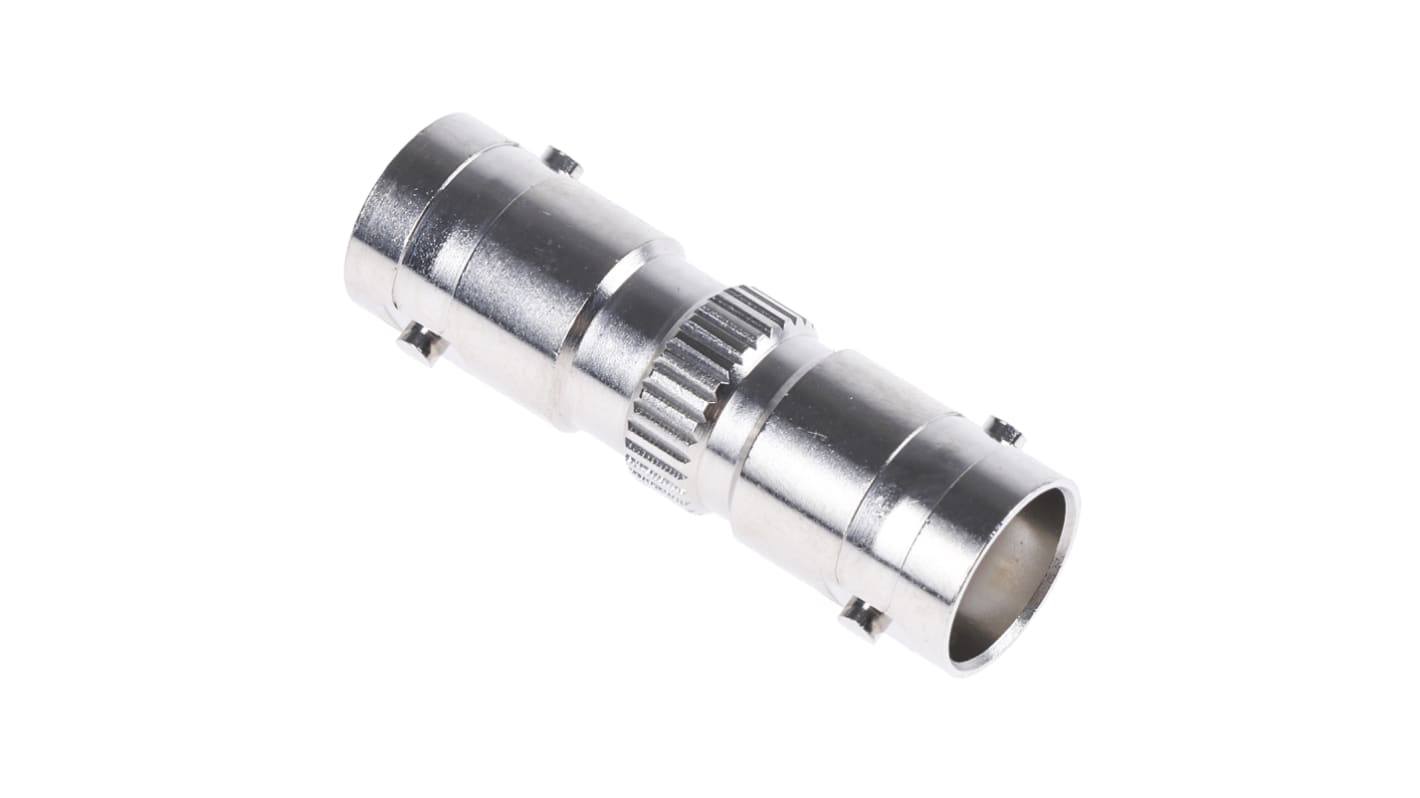

Radiall 50 Ohm BNC RF Coaxial Female-Female Adapter
50 Ohm BNC RF coaxial female-female adapter with a PTFE dielectric, nickel plated brass body and gold plated center contact.
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
Specifications
Attribute | Value |
---|---|
Adapter Type | BNC Socket to BNC Socket |
Adapter Type A | BNC |
Adapter Type B | BNC |
Gender A | Female |
Gender B | Female |
Impedance | 50Ω |
Body Orientation | Straight |
Operating Frequency | 4GHz |
Contact Plating | Gold |
Length | 32.5mm |
Body Plating | Nickel |
Contact Material | Beryllium Copper |
