Straight 75Ω Coaxial Adapter BNC Plug to BNC Socket 6GHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

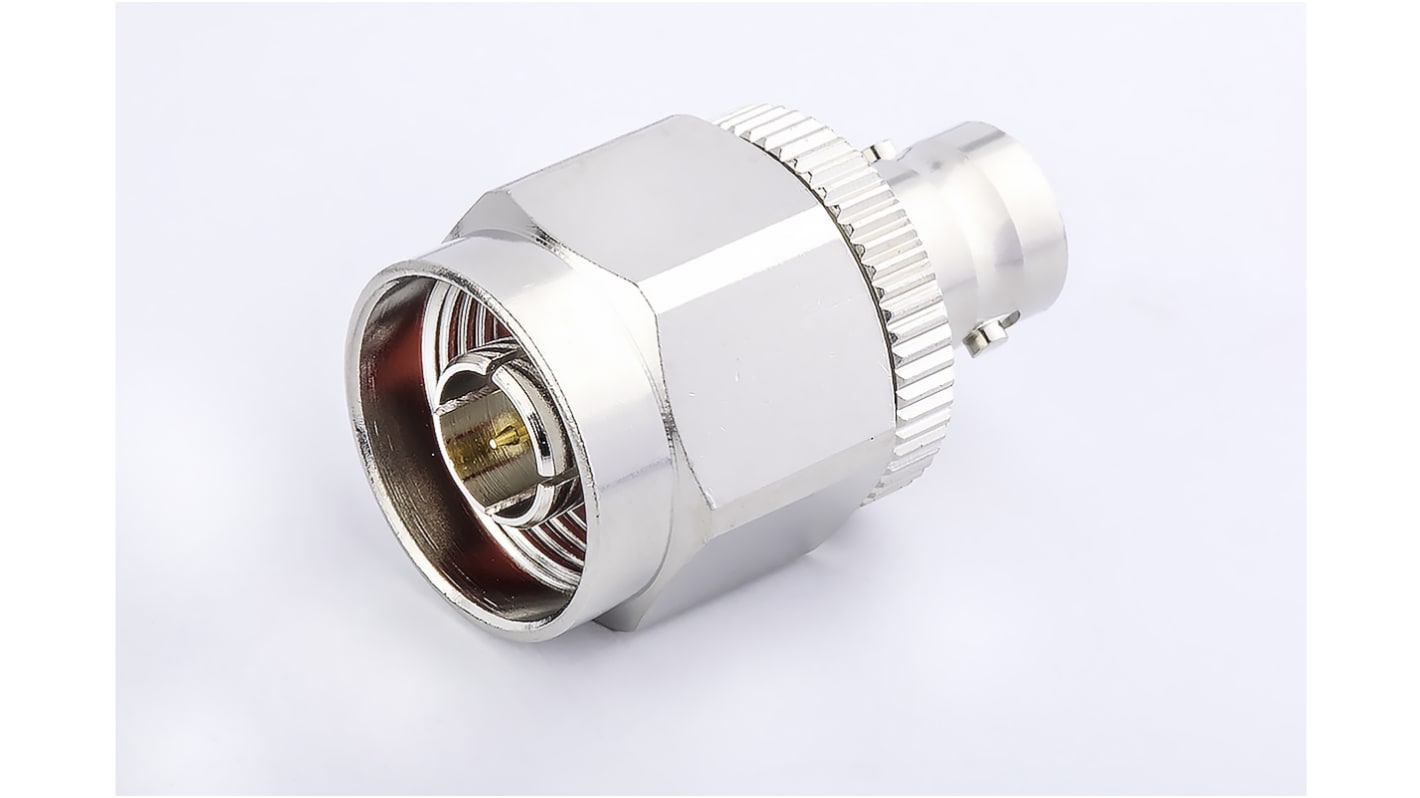

RS PRO Straight N Plug, BNC Jack Adapter

From RS PRO this straight N plug to BNC jack adaptor that gives excellent performance. It has excellent performance form DC to 6GHz.The body is made of Brass with Nickel plating; the centre contact is made of beryllium copper with gold plating. This component is used for high speed, high definition video applications.

Features and Benefits

• Temperature -65 to 165° C
• Impedance 75 OHM
• Gold plated centre contact and nickel-plated body
• Teflon insulation

Applications

• High speed, high definition video applications

Specifications
Attribute Value
Adapter Type N Plug to BNC Jack
Adapter Type A BNC
Adapter Type B BNC
Gender A Male
Gender B Female
Impedance 75Ω
Body Orientation Straight
Polarity Normal
Operating Frequency 6GHz
Contact Plating Gold
Length 31.9mm
Body Plating Nickel
Contact Material Beryllium Copper
142 In stock - FREE next working day delivery available
Price Each
£ 8.57
(exc. VAT)
£ 10.28
(inc. VAT)
Units
Per unit
1 - 9
£8.57
10 - 24
£7.88
25 - 49
£7.48
50 - 99
£7.11
100 +
£6.66
