- RS Stock No.:
- 170-2479
- Mfr. Part No.:
- R141703000
- Brand:
- Radiall
- RS Stock No.:
- 170-2479
- Mfr. Part No.:
- R141703000
- Brand:
- Radiall
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

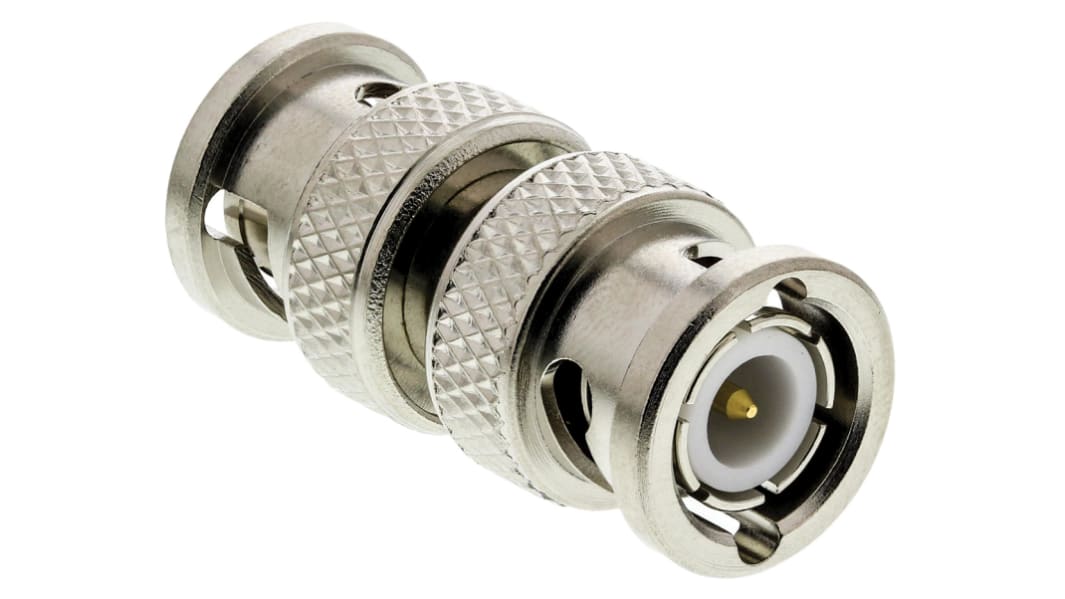

BNC connectors
Series of BNC connectors for all types of BNC-BNC adaptation.
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
Specifications
Attribute | Value |
---|---|
Adapter Type | BNC Plug to BNC Plug |
Adapter Type A | BNC |
Adapter Type B | BNC |
Gender A | Male |
Gender B | Male |
Impedance | 50Ω |
Body Orientation | Straight |
Operating Frequency | 4GHz |
Contact Plating | Gold |
Length | 32mm |
Body Plating | Nickel |
Contact Material | Brass |
