Fluke 374 FC Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V With RS Calibration

RS Stock No.:: 905-6982
Mfr. Part No.:: FLUKE-374 FC
Brand:: Fluke

Fluke 374 FC Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V With RS Calibration

Subtotal (1 unit)*

£561.00

(exc. VAT)

£673.20

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

36 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£561.00

*price indicative

RS Stock No.:: 905-6982
Mfr. Part No.:: FLUKE-374 FC
Brand:: Fluke

Fluke 370 FC Series True RMS Wireless AC/DC Clamp Meters

Fluke 370 FC clamp meters are CAT IV 600 V, CAT III 1000 V safety-rated instruments offering advanced troubleshooting performance to capture a wide range of measurements with a single tool. The 370 FC clamp meters log measurements to pinpoint intermittent faults precisely, without the need for the technician to be present. The measurements can then be wirelessly transmitted to the Fluke Connect app on smartphones or tablets and automatically uploaded to the cloud. This improves safety by keeping technicians outside the arc flash zone and away from dangerous moving machinery.

Fluke 370 FC models are:
374 FC ( 905-5911 ) 600 A, 6000 Ω
375 FC ( 905-5917 ) 600 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz
376 FC ( 905-5914 ) 999.9 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz.

Features & Benefits

• Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• True RMS voltage and current for accurate measurements on non-linear signals
• Expanded measurement range to 2500 A ac with the iFlex flexible current probes, which provide access to large conductors in tight spaces
• Integrated variable frequency drive low pass filter for accurate motor drive measurements (376 FC and 375 FC models only)
• 500 mV dc measurement range to interface with other accessories (376 FC and 375 FC models only)
• Connect your meter to your smartphone with Fluke Connect Measurements
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• Compatible with TPAK magnetic hanging strap

Supplied with

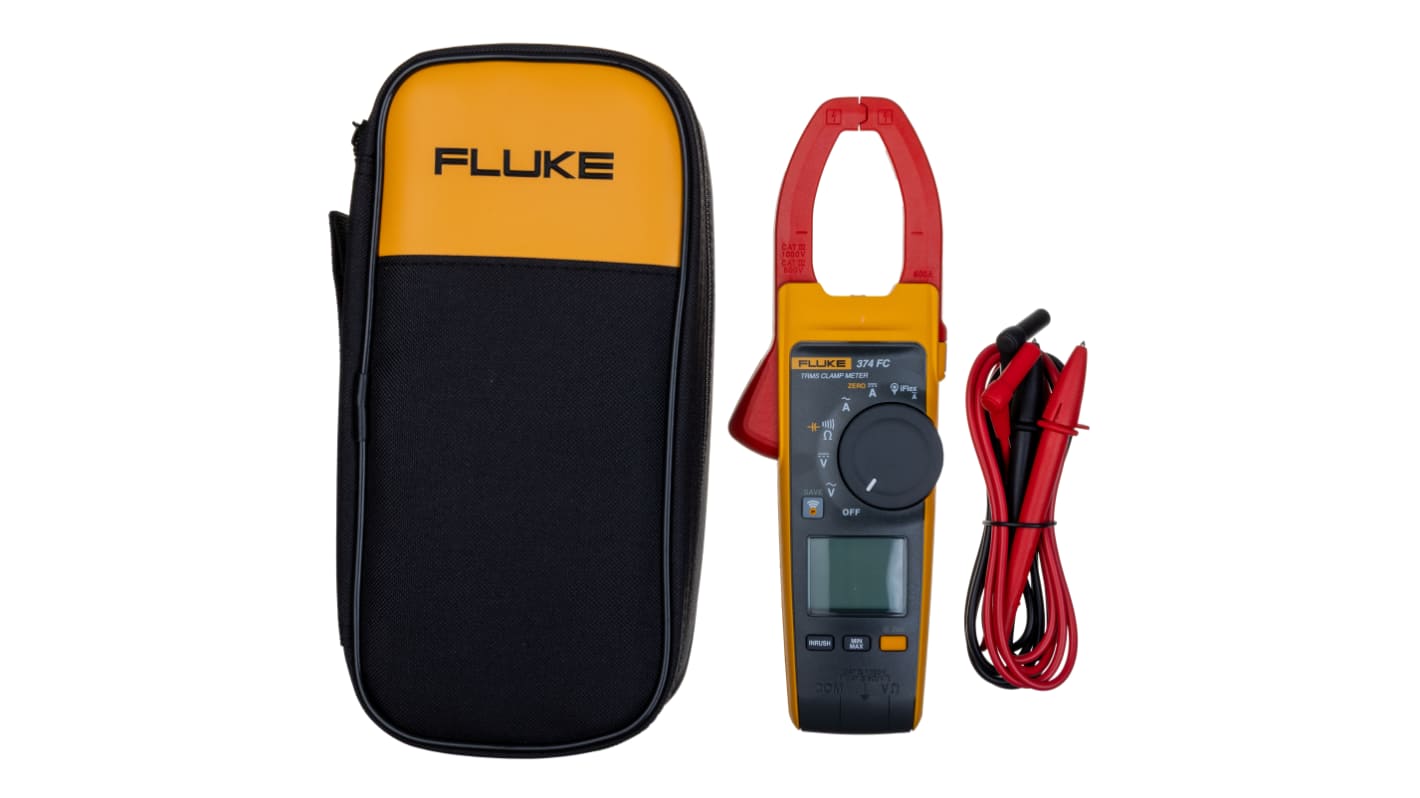

TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)

FLUKE 374 FC Clamp Meter, 1000V Maximum Voltage, Bluetooth Connectivity - 370 FC Series

Make troubleshooting and reporting a breeze with the 374 FC clamp meter from FLUKE. It lets you pinpoint and analyse intermittent faults in your electrical system with zero hassle. The clever tool takes true-RMS measurements of AC and DC voltage and current, as well as frequency, resistance and capacitance. You simply connect it to your phone using the Fluke Connect Measurements app to check readings from a safe distance and save them on the Fluke Cloud. You can also create reports in the field and share them via email or ShareLive video calls.

Fluke 374 FC Clamp Meter Features & Benefits

• Measures AC and DC current up to 600A for versatile use
• Runs on two AA batteries, included in the set
• Backlit LCD display for clear readings
• FLUKE's in-rush measurement tech filters out noise to show you the motor starting current as the circuit protection sees it
• Wide operating temperature range of -10°C to +50°C

Applications

• HVAC systems
• Factory buildings
• Industrial automation

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Absolute Maximum AC Current Measurement	600A ac
	Absolute Maximum DC Current Measurement	600A dc
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum Resistance Measurement	6000Ω
	Connectivity	Bluetooth
	Model Number	374 FC
	Calibrated	RSCAL
	AC Current Measurement Resolution	100mA
	DC Current Measurement Resolution	100mA
	Best DC Current Accuracy	±(2% rdg +5 Digits)
	Clamp Meter Type	AC/DC Clamp Meter
	Best AC Current Accuracy	2% ±5 Digits (Jaw), 3% ±5 (Probe)
	Best AC Voltage Accuracy	1.5% ±5 Digits
	Best DC Voltage Accuracy	1% ±5 Digits
	True RMS	Yes
	Jaw Capacity Busbars	34mm
	Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	Safety Category Level	CAT III, CAT IV
	AC Voltage Measurement Resolution	100mV
	Height	43mm
	Display Type	Backlit LCD
	Safety Category	CAT III 1000 V, CAT IV 600V
	Best Resistance Measurement Accuracy	1% ±5 Digits
	Weight	388g
	AC Voltage Measurement Range	1000 V
	DC Voltage Measurement Resolution	100mV
	Minimum Operating Temperature	-10°C
	AC Current Measurement Range	600 A
	Maximum Operating Temperature	+50°C
	Resistance Measurement Resolution	100mΩ
	Width	83mm
	Power Source	Battery
	Length	246mm
	Battery Type	2 AA, IEC LR6, NEDA 15A
	Dimensions	246 x 83 x 43mm
	Safety Category Voltage	600 V, 1000V

	Select all
	Brand Fluke
	Absolute Maximum AC Current Measurement 600A ac
	Absolute Maximum DC Current Measurement 600A dc
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum Resistance Measurement 6000Ω
	Connectivity Bluetooth
	Model Number 374 FC
	Calibrated RSCAL
	AC Current Measurement Resolution 100mA
	DC Current Measurement Resolution 100mA
	Best DC Current Accuracy ±(2% rdg +5 Digits)
	Clamp Meter Type AC/DC Clamp Meter
	Best AC Current Accuracy 2% ±5 Digits (Jaw), 3% ±5 (Probe)
	Best AC Voltage Accuracy 1.5% ±5 Digits
	Best DC Voltage Accuracy 1% ±5 Digits
	True RMS Yes
	Jaw Capacity Busbars 34mm
	Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	Safety Category Level CAT III, CAT IV
	AC Voltage Measurement Resolution 100mV
	Height 43mm
	Display Type Backlit LCD
	Safety Category CAT III 1000 V, CAT IV 600V
	Best Resistance Measurement Accuracy 1% ±5 Digits
	Weight 388g
	AC Voltage Measurement Range 1000 V
	DC Voltage Measurement Resolution 100mV
	Minimum Operating Temperature -10°C
	AC Current Measurement Range 600 A
	Maximum Operating Temperature +50°C
	Resistance Measurement Resolution 100mΩ
	Width 83mm
	Power Source Battery
	Length 246mm
	Battery Type 2 AA, IEC LR6, NEDA 15A
	Dimensions 246 x 83 x 43mm
	Safety Category Voltage 600 V, 1000V
