Fluke 376 FC Voltage & Current Tester Clamp Meter, Max Current 2.5 (Probe) kA ac, 999.9 (Jaw) A ac, 999.9A dc CAT III

  • RS Stock No. 905-6936
  • Mfr. Part No. FLUKE-376 FC
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Fluke 370 FC Series True RMS Wireless AC/DC Clampmeters

Fluke 370 FC clampmeters are CAT IV 600 V, CAT III 1000 V safety-rated instruments offering advanced troubleshooting performance to capture a wide range of measurements with a single tool. Some of the most frustrating tasks for electricians and maintenance technicians involve troubleshooting intermittent faults because these rarely occur at convenient times. The 370 FC clampmeters log measurements to pinpoint intermittent faults precisely, without the need for the technician to be present. The measurements can then be wirelessly transmitted to the Fluke Connect app on smartphones or tablets and automatically uploaded to the cloud. This improves safety by keeping technicians outside the arc flash zone and away from dangerous moving machinery. Fluke 370 FC models are: 374 FC ( 905-5911 ) 600 A, 6000 Ω; 375 FC ( 905-5917 ) 600 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz; 376 FC ( 905-5914 ) 999.9 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz.

Features & Benefits

• Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• True RMS voltage and current for accurate measurements on non-linear signals
• Expanded measurement range to 2500 A ac with the iFlex flexible current probes, which provide access to large conductors in tight spaces
• Integrated variable frequency drive low pass filter for accurate motor drive measurements (376 FC and 375 FC models only)
• 500 mV dc measurement range to interface with other accessories (376 FC and 375 FC models only)
• Connect your meter to your smartphone with Fluke Connect Measurements
• Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
• Record results directly to your phone and the Cloud
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• Compatible with TPAK magnetic hanging strap
• Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• CAT IV 600 V, CAT III 1000 V safety rating
• Soft carrying case

Note

Measurement data from 370 FC Series clampmeters and other test tools can be wirelessly transmitted to smartphones for storage on the Fluke Cloud™ and for team access from the field (subject to wireless service area, plan pricing and other criteria).

Supplied with

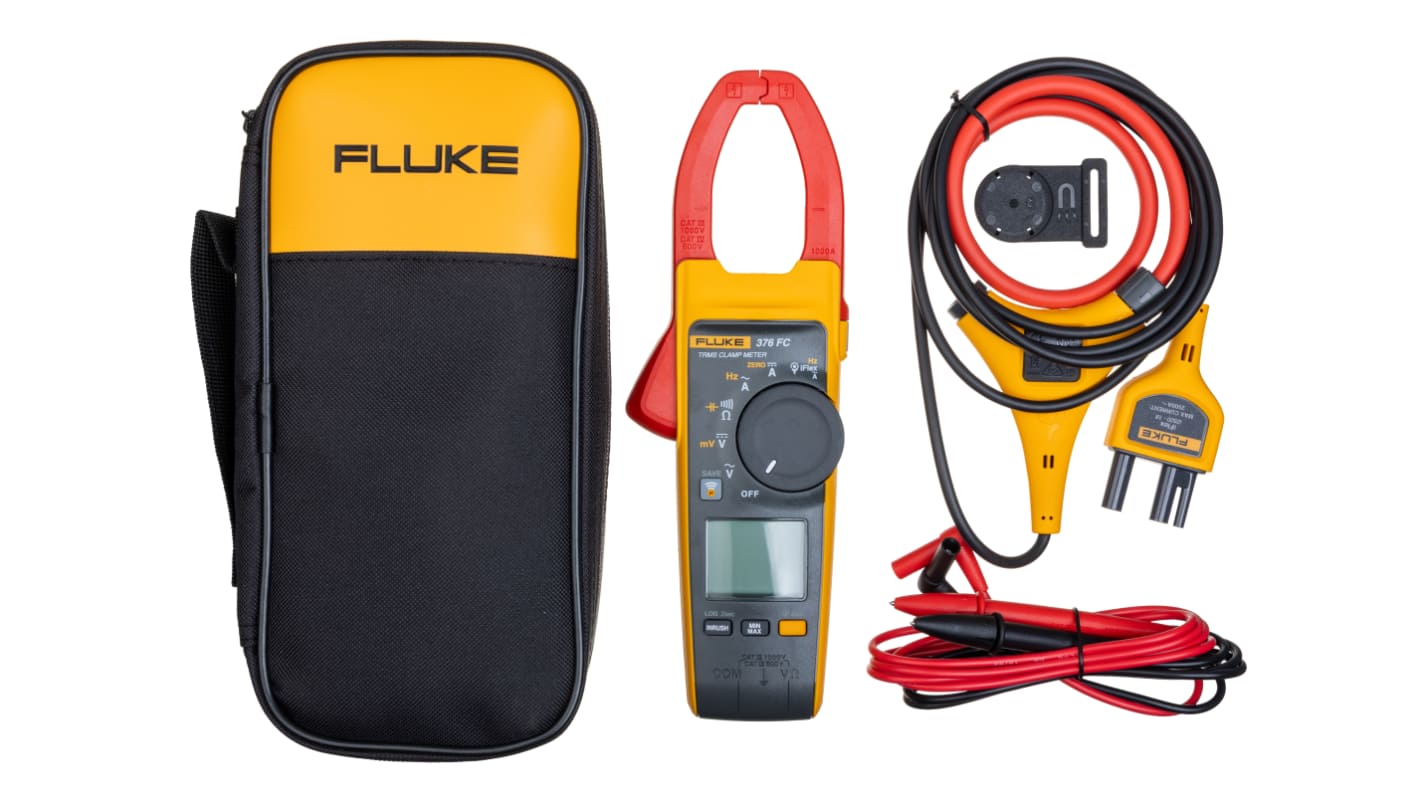

TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)

Fluke True-RMS Clamp Meter

The Fluke True-RMS clamp meter measures current up to 999.9A AC/DC via jaw, 2500A AC via iFlex and voltage up to 1000VAC/DC. It enables you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity. Connect your meter to your smartphone using Fluke connect measurements app to increase the troubleshooting power of clamp. Note:Measurement data from 370 FC Series clamp meters and other test tools can be wirelessly transmitted to smartphones for storage on the Fluke Cloud™ and for team access from the field (subject to the wireless service area, plan pricing and other criteria).Supplied with:TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)

Features and Benefits

60kohm resistance measurement with continuity detection Frequency measurement up to 500Hz with both, jaw and iFlex Minimum, maximum, average and inrush recording to capture variations automatically True RMS AC voltage and current for accurate measurements on non-linear signals 500mV DC measurement range to interface with other accessories 1000μF capacitance measurement Connect your meter to your smartphone with fluke connect measurements Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks Records result directly to your phone and the cloud Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement Compatible with TPAK magnetic hanging strap Low pass filter for stable readings in noisy environments Hold button Soft carrying case

Applications

Electricians Commercial sites Residential plant maintenance Home inspections HVAC/R

Certifications

CE certified cUS approved TUV approved IEC/EN 61010-1:2001

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 2.5 (Probe) kA ac, 999.9 (Jaw) A ac
Absolute Maximum DC Current Measurement 999.9A dc
Absolute Maximum AC Voltage Measurement 1000V ac
Absolute Maximum DC Voltage Measurement 1000V dc
Absolute Maximum Resistance Measurement 60kΩ
Model Number 376 FC
Calibrated RSCAL
AC Current Measurement Resolution 0.1 (Jaw) A ac, 1 (Probe) A ac
DC Current Measurement Resolution 0.1A dc
Best DC Current Accuracy 2% ±5 Digits
Clamp Meter Type Voltage & Current Tester
Best AC Current Accuracy 2% ±5 Digits (Jaw), 3% ±5 (Probe)
Best AC Voltage Accuracy 1.5% ±5 Digits
Best DC Voltage Accuracy 1% ±5 Digits
Resistance Measurement Resolution
Minimum Operating Temperature -10°C
Height 43mm
AC Voltage Measurement Resolution 1V ac
Weight 388g
Safety Category Level CAT III, CAT IV
Length 246mm
Width 83mm
Safety Category Voltage 600 V, 1000 V
Battery Type IEC LR6, NEDA 15A, 2 AA
Power Source Battery
Safety Category CAT III 1000 V, CAT IV 600 V
Maximum Operating Temperature +50°C
Display Type Backlit LCD
Dimensions 246 x 83 x 43mm
Best Resistance Measurement Accuracy 1% ±5 Digits
True RMS Yes
DC Voltage Measurement Resolution 1V dc
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
277 In stock for delivery within 2 working days
Price Each
£ 530.00
(exc. VAT)
£ 636.00
(inc. VAT)
Units
Per unit
1 +
£530.00
Not available for guaranteed pre 9am/10am delivery
