- RS Stock No.:
- 905-6730
- Mfr. Part No.:
- 0590 7703
- Brand:
- Testo
18 In stock for delivery within 3 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£232.00
(exc. VAT)
£278.40
(inc. VAT)
Units | Per unit |
1 + | £232.00 |
- RS Stock No.:
- 905-6730
- Mfr. Part No.:
- 0590 7703
- Brand:
- Testo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

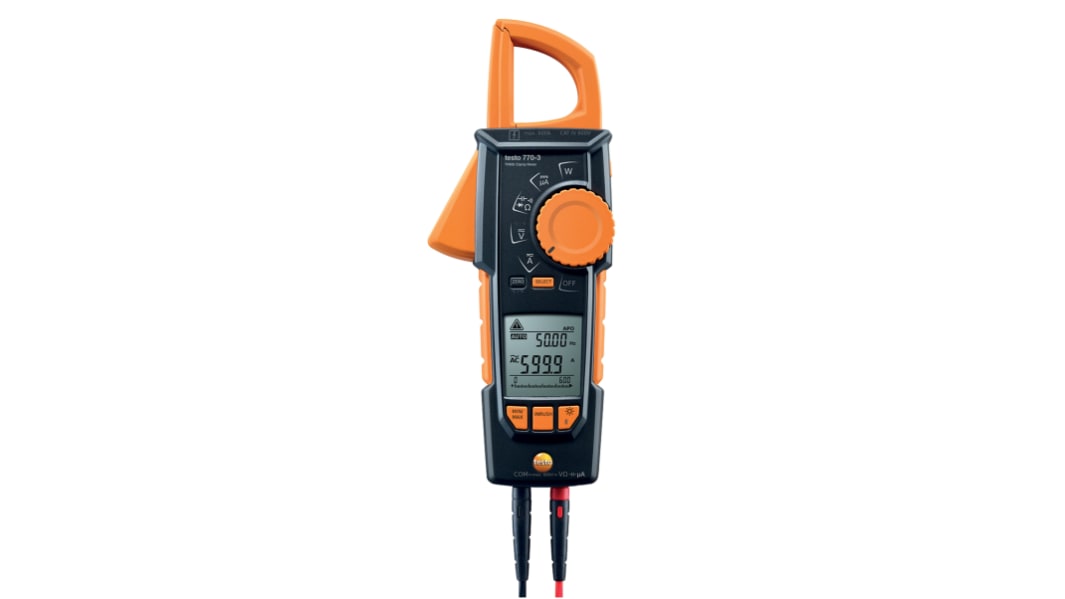

Testo 770-3 Clamp Meter With Retractable Arm, 600V AC/DC, Bluetooth-Enabled
Safely measure current and voltage transmission in your cables with the 770-3 clamp meter from Testo. Its hinged jaw reads current directly, eliminating the need to cut the wire or turn off the circuit for added convenience. It's compatible with both AC (alternating current) and DC (direct current), so you can use it for a range of applications. This unit also measures resistance, frequency, capacitance and temperature for increased versatility. As it's a true RMS (root mean square) measuring unit, it effectively reads both regular and irregular loads for enhanced accuracy.
Features & Benefits
• Bluetooth capability for simple remote access to data
• Broad operating temperature range of -10°C to +50°C for use in harsh environments
• Clear LCD (liquid-crystal display) ensures values are easy to read
• Supplied with measuring cables for an extended reach
• Light weight of 302g for portability and ease of handling
• Broad operating temperature range of -10°C to +50°C for use in harsh environments
• Clear LCD (liquid-crystal display) ensures values are easy to read
• Supplied with measuring cables for an extended reach
• Light weight of 302g for portability and ease of handling
Applications
• Manufacturing industry
• Equipment maintenance
• Electrical system installation
• Equipment maintenance
• Electrical system installation
Where can I use the 770-3 clamp meter?
This clamp meter is particularly suitable for use in tight, hard-to-reach places thanks to its retractable arm. This makes it a good choice for use in switching cabinets, crowded control panels and server racks.
Specifications
Attribute | Value |
---|---|
Absolute Maximum AC Current Measurement | 600A ac |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum Resistance Measurement | 60MΩ |
Connectivity | Bluetooth |
Model Number | 770-3 |
Calibrated | RSCAL |
AC Current Measurement Resolution | 0.1µA |
DC Current Measurement Resolution | 0.1µA |
Best DC Current Accuracy | 0.1 % |
Clamp Meter Type | AC/DC Clamp Meter |
Best AC Current Accuracy | 0.1 % |
Best AC Voltage Accuracy | 0.1 % |
True RMS | Yes |
Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature |
Best DC Voltage Accuracy | 0.1 % |
Best Temperature Measurement Accuracy | 0.1 % |
DC Voltage Measurement Resolution | 1mV |
Dimensions | 243 x 96 x 43mm |
DC Current Measurement Range | 0.1 → 600 A |
Resistance Measurement Resolution | 0.01Ω |
Length | 243mm |
Width | 96mm |
Power Source | Battery |
Maximum Operating Temperature | +50°C |
Display Type | LCD |
Safety Category | CAT III 1000 V, CAT IV 600V |
Best Resistance Measurement Accuracy | 0.1 % |
Absolute Maximum Temperature Measurement | +500°C |
Battery Type | AAA |
Safety Category Voltage | 600 V, 1000V |
Temperature Measurement Resolution | 0.2°C |
Height | 43mm |
Minimum Operating Temperature | -10°C |
Safety Category Level | CAT III, CAT IV |
Weight | 378g |
AC Voltage Measurement Range | 0.001 → 600 V |
AC Current Measurement Range | 0.1 → 600 A |
AC Voltage Measurement Resolution | 1mV |
