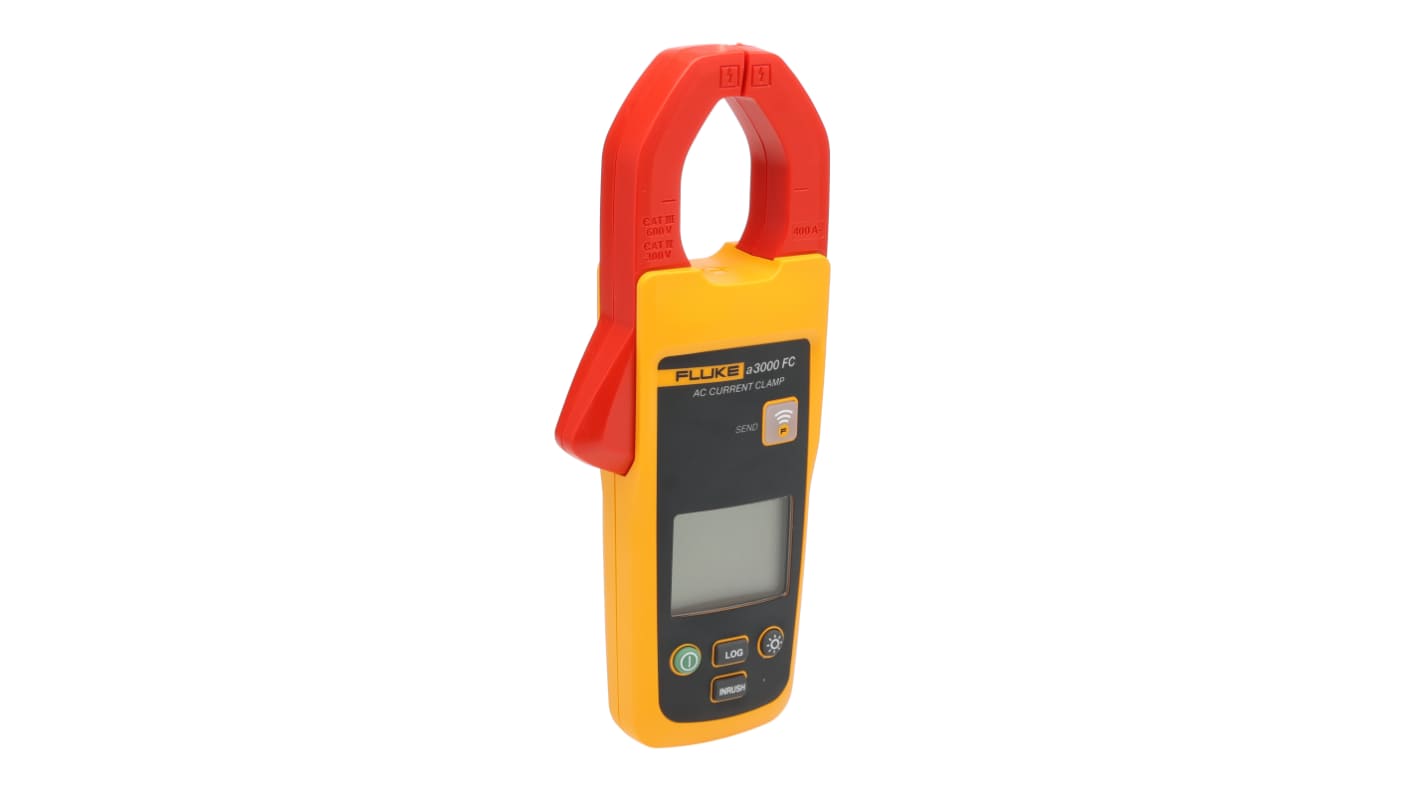

Fluke A3000 FC Current Clamp Meter, Max Current 400A ac CAT III 600 V With UKAS Calibration

  • RS Stock No. 810-9039
  • Mfr. Part No. FLK-A3000 FC
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Fluke a3000 FC Wireless AC Current Clamp Module Fluke CONNECT™

The Fluke a3000 FC Wireless AC Current Clamp Module is a functional true-RMS current clamp meter that wirelessly relays measurements to other Fluke Connect™ enabled master units.

The Fluke a3000 FC Wireless AC Current Clamp Module has all the essentials for convenient test and measurement troubleshooting
True-RMS AC clamp meter
Measure up to 400 A AC
Use as a standalone meter or as part of the system
Logging function for recording and saving up to 65,000 readings
Inrush function

Fluke Clamp Meter

The Fluke 3000 FC series True-RMS wireless clamp meter measures the current range between 0.5A to 400A AC. This meter has detachable clamp with an extension cable for measurements in tight locations.Fluke CONNECT™Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more. Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. (Not compatible with Fluke CNX test tools).

Features and Benefits

Best in class of 0.2% accuracy Jaw opening: 4.5mm Use as a standalone meter or a part of the system Logging function for the recording and saving up to 65,000 measurements Send data to your laptop and go from logging to analysis and diagnosis Record overtime to monitor circuit load changes for an hour, a shift or a week Connect the wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call LCD w/backlight: 3-1/2 digits Operating temperature ranges between -10°C and 50°C

Applications

Petrochemical industry Oil and gas Food and beverages Pharmaceuticals

Certifications

CE cCSAus CSA FCC: T68-FBLE IC: 6627A-FBLE IP30 rated EN 61326-1:2013 IEC 61010-1 The safety rating of CAT III 600V, CAT IV 300V

Fluke CONNECT™

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field.
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 400A ac
Model Number A3000 FC
Calibrated UKAS
AC Current Measurement Resolution 100mA ac
Clamp Meter Type Current
Best AC Current Accuracy ±2% + 5 Digits, ±2.5 % + 5 Digits
Weight 220g
Jaw Capacity Busbars 34mm
Maximum Operating Temperature +50°C
Safety Category Level CAT III
Length 203mm
Width 74.9mm
Power Source Battery
Battery Life 400 h
Height 35.6mm
Minimum Operating Temperature -10°C
True RMS Yes
Functions Measured AC Current
Display Type LCD
Safety Category CAT III 600 V
Battery Type AA
Safety Category Voltage 600V
Dimensions 203 x 74.9 x 35.6mm
17 In stock for delivery within 2 working days
Price Each
£ 232.00
(exc. VAT)
£ 278.40
(inc. VAT)
Units
Per unit
1 +
£232.00
Not available for guaranteed pre 9am/10am delivery
