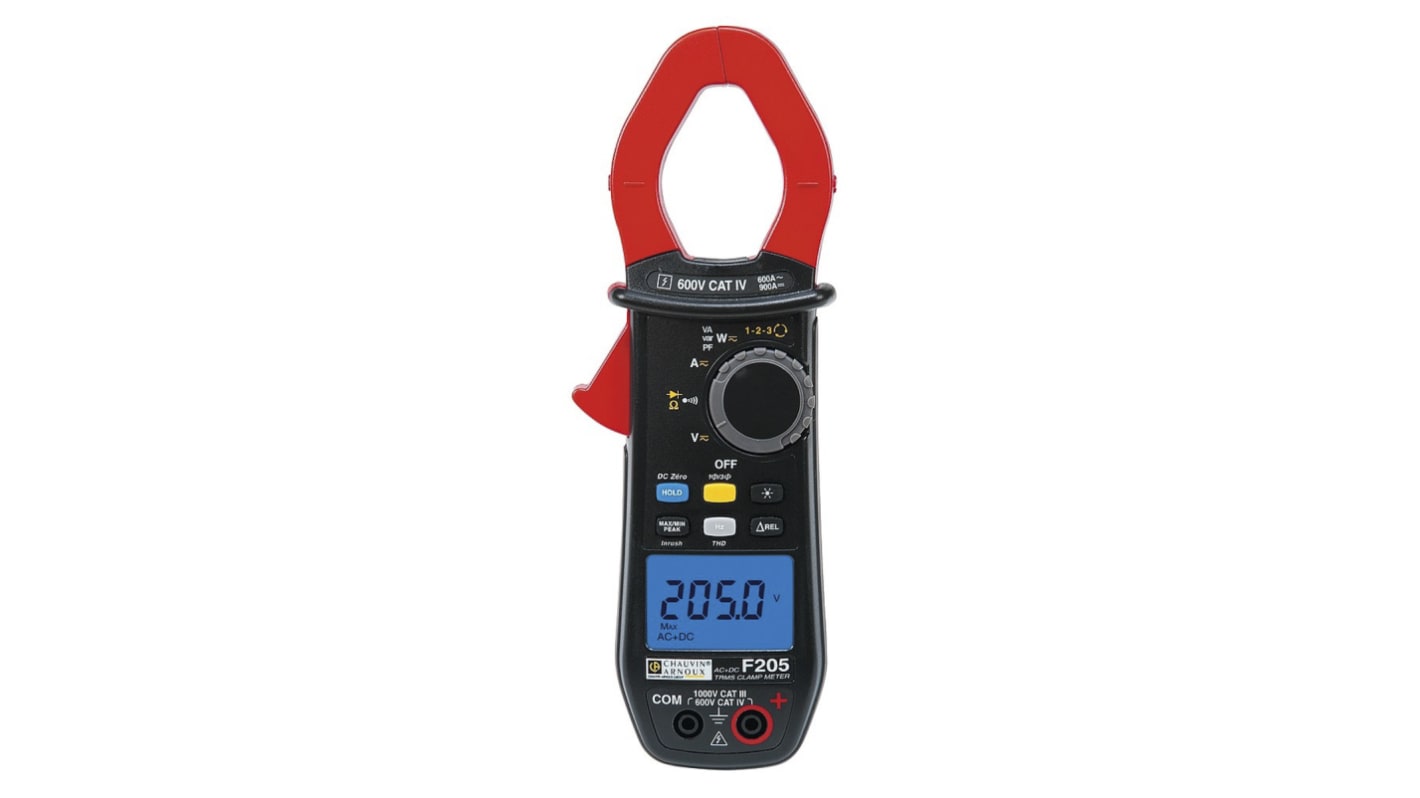

Chauvin Arnoux F205 Multifunction Clamp Clamp Meter, Max Current 600A ac, 900A dc CAT III 1000 V, CAT IV 600 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

F205 AC+DC TRMS Clampmeter

The F205 clamp multimeter is ideal for the needs of self-employed electricians and small and medium-sized business and industries in the electrical sector
Simple to use, the clampmeter offers all the necessary functions in a single, compact solution
Equiped with a fast 12-bit TRMS digital acquisition system
Current: 600 AAC/ 900 ADC
AC and DC voltage up to 1000 V
W/VA/var, PF and DPF power values
THD-f and THD-r
Resistance and audible continuity
Min and Max analysis
Relative and differential measurements
TrueInrush current measurements
Phase rotation
IP54 protection

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 600A ac
Absolute Maximum DC Current Measurement 900A dc
Absolute Maximum AC Voltage Measurement 1000V ac
Absolute Maximum DC Voltage Measurement 1000V dc
Absolute Maximum Resistance Measurement 59.99kΩ
Model Number F205
Best DC Current Accuracy ±(1% rdg + 3dgts)
Clamp Meter Type Multifunction Clamp
Best AC Current Accuracy ±(1% rdg + 3dgts)
Best AC Voltage Accuracy ±(1% rdg + 3dgts)
Best DC Voltage Accuracy ±(1% rdg + 3dgts)
Resistance Measurement Resolution 100mΩ
Dimensions 78 x 42 x 222mm
Width 42mm
Length 78mm
Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Phase rotation, Power, Power Factor, Resistance
True RMS Yes
Height 222mm
Maximum Conductor Size 34mm
Battery Life 130 h
Jaw Capacity Busbars 34mm
Weight 354g
Safety Category Level CAT IV
Display Type Backlit LCD
Maximum Operating Temperature +55°C
Safety Category Voltage 600V
Battery Type LF22
Safety Category CAT III 1000 V, CAT IV 600 V
Best Resistance Measurement Accuracy ±1 % + 5 digits
Power Source Battery, Mains
6 in stock for FREE next working day delivery
33 available from Europe for delivery within 1 working day(s).
Price Each
Was £277.00
£ 241.78
(exc. VAT)
£ 290.14
(inc. VAT)
Units
Per unit
1 +
£241.78
