Fluke 325 Current, Voltage Clamp Meter, Max Current 400A ac, 400A dc CAT III 600V, CAT IV 300V With UKAS Calibration

  • RS Stock No. 765-7035
  • Mfr. Part No. FLUKE 325
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Fluke 325 Clampmeter

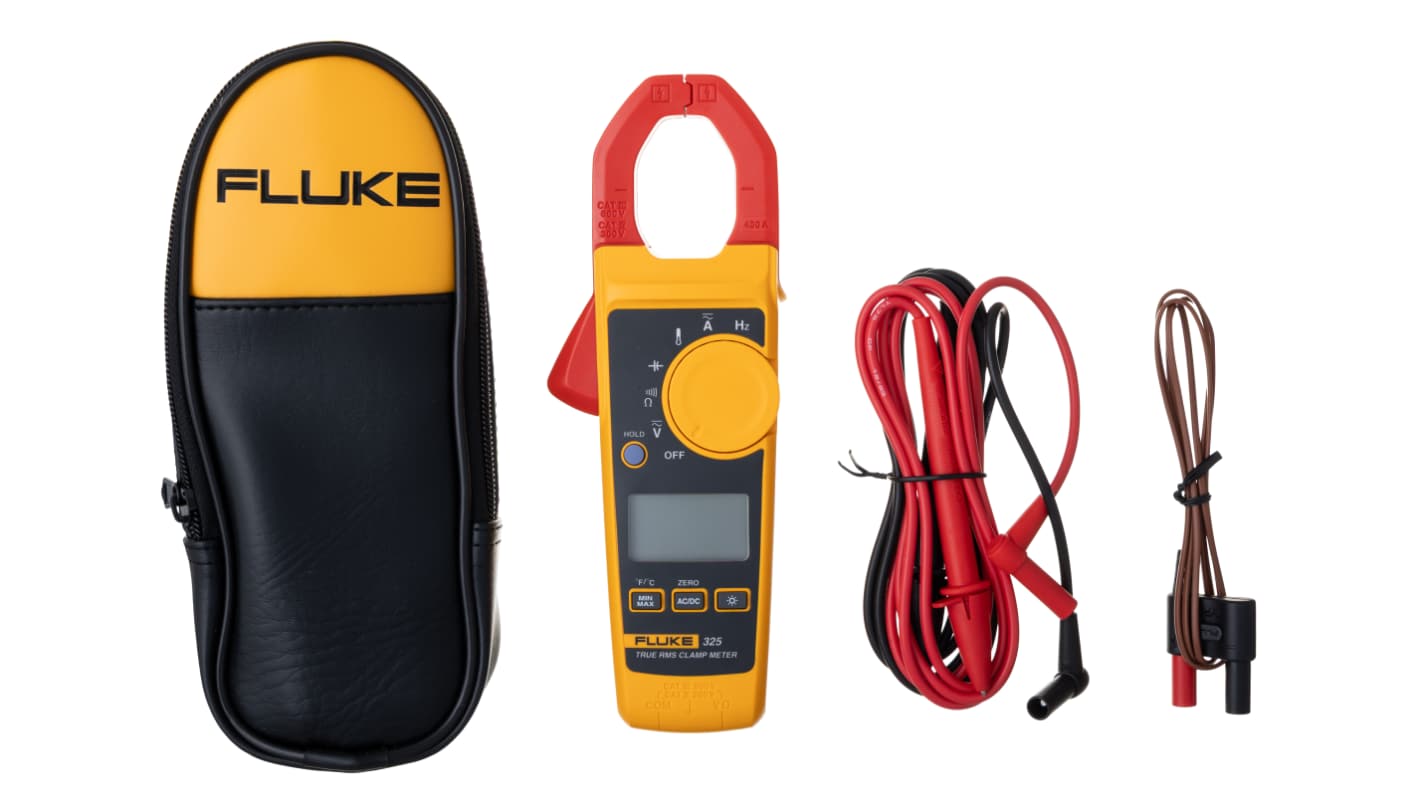

From Fluke, the 325 Clamp Meter features true-rms measurements and optimized ergonomics, and is an ideal troubleshooting tool for commercial and residential electricians. The 325 is designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. This small and rugged clamp meters is ideally suited for current measurements up to 400 A in tight cable compartments. The Fluke 325 also offers DC current and frequency measurements, and is supplied with test leads, a soft case and a user manual.

Features and Benefits

• Best in class 400 A true RMS clamp meters
• True RMS AC Voltage and current for accurate measurements on non-linear signals
• The 325 also supports DC current measurement and min / max
• Ergonomic thinner design
• Improved functionality
• Large, easy to read back light display (324 and 325 only)
• CAT IV 300 V / CAT III 600 V safety rating

Fluke True-RMS Clamp Meter

The Fluke 320 series True-RMS clamp meter measures current up to 400A AC/DC and voltage up to 600V AC/DC. This product is designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. It also offers DC and frequency measurements and is supplied with test leads, a soft case and a user manual. You can trust the 325 to help you confidently diagnose all kinds of electrical problems. It is an ideal troubleshooting tool for commercial and residential electricians.

Features and Benefits

• 40kohm resistance measurement
• True RMS AC voltage and current for accurate measurements on non-linear signals
• Temperature and capacitance measurement
• Operating temperature ranges between -10°C and 50°C
• Frequency measurement
• Slim, ergonomic design
• Large, easy to read backlight display

• Hold button

Applications


Electricians
• Commercial sites
• Residential plant maintenance
• Home inspections

Certifications


CE certified
• cUS approved
• TUV approved

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 400A ac
Absolute Maximum DC Current Measurement 400A dc
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 40kΩ
Model Number 325
Calibrated UKAS
AC Current Measurement Resolution 10mA ac
DC Current Measurement Resolution 10mA dc
Clamp Meter Type Current, Voltage
Width 75mm
Minimum Operating Temperature -10°C
AC Voltage Measurement Resolution 0.1V ac
Safety Category Level CAT III, CAT IV
Dimensions 207 x 75 x 34mm
Resistance Measurement Resolution 100mΩ
Maximum Operating Temperature +50°C
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance, Temperature
Height 34mm
Safety Category CAT III 600V, CAT IV 300V
Safety Category Voltage 300 V, 600 V
Weight 283g
Battery Type AAA
Temperature Measurement Resolution 0.1°C
DC Voltage Measurement Resolution 0.1V
Absolute Maximum Temperature Measurement +400°C
Maximum Conductor Size 30mm
Length 207mm
Display Type LCD
Power Source Battery
