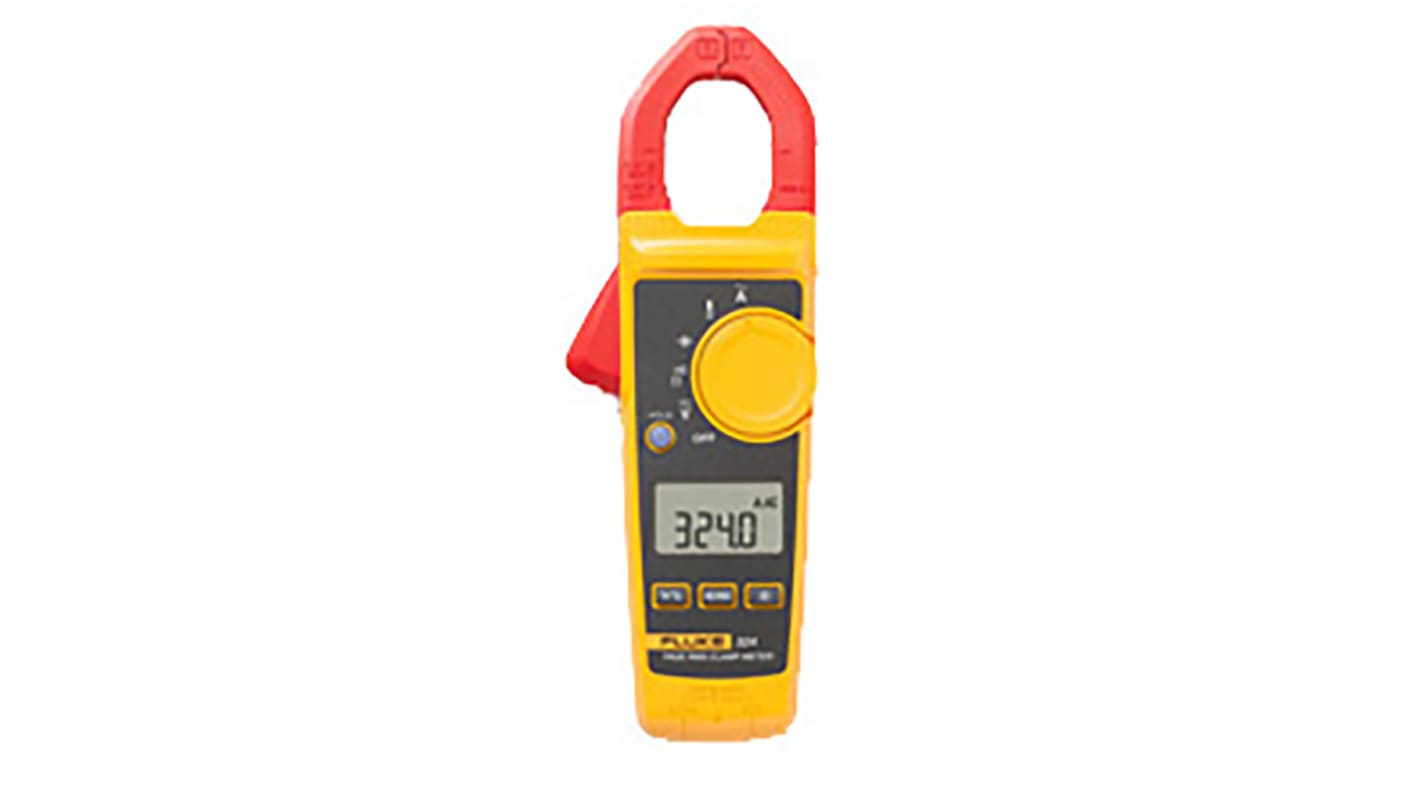

Fluke 324 Clamp Meter, Max Current 400A ac CAT III 600V With RS Calibration
- RS Stock No.:
- 765-7013
- Mfr. Part No.:
- FLUKE 324
- Brand:
- Fluke
Available to back order for despatch when stock is available
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£249.00
(exc. VAT)
£298.80
(inc. VAT)
| Units | Per unit |
| 1 + | £249.00 |
- RS Stock No.:
- 765-7013
- Mfr. Part No.:
- FLUKE 324
- Brand:
- Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
Fluke 320 Series True RMS Clamp Meters
The Fluke 323, 324 and 325 Clamp Meters are designed to perform in the toughest environments and provide noise-free, reliable results to diagnose problems. True RMS measurements and optimised ergonomics make the 320 Series the best and easiest-to-use general troubleshooting tools for commercial and residential electricians.
Fluke 320 series Clamp Meters include:
Fluke 323 – 7653658 – For general troubleshooting
Fluke 324 – 7653667 – With temperature and capacitance capabilities
Fluke 325 – 7653660 – AC/DC features, temperature, capacitance, frequency
Fluke 320 series Clamp Meters include:
Fluke 323 – 7653658 – For general troubleshooting
Fluke 324 – 7653667 – With temperature and capacitance capabilities
Fluke 325 – 7653660 – AC/DC features, temperature, capacitance, frequency
Features & Benefits
True RMS AC voltage and current for accurate measurements on non-linear signals
The Fluke 325 (RS 765-3660) also supports DC current measurement and min / max
Ergonomic, slender design
Improved functionality
Large, easy-to-read backlight display (324 RS 765-3667 and 325 RS 765-3660 only)
CAT IV 300 V/CAT III 600 V safety rating
The Fluke 325 (RS 765-3660) also supports DC current measurement and min / max
Ergonomic, slender design
Improved functionality
Large, easy-to-read backlight display (324 RS 765-3667 and 325 RS 765-3660 only)
CAT IV 300 V/CAT III 600 V safety rating
Supplied with
Clamp meter, Test leads, Soft case, user manual.
FLUKE Clamp Meter, 4kΩ Maximum Resistance Measurement, 208g Weight - 320 Series - FLUKE 324
Trust the 324 clamp meter from FLUKE to give you a hand with all your HVAC troubleshooting tasks. As you can use it to monitor capacitance and temperature, it's just the tool for heating and ventilation maintenance. It also offers true-RMS AC voltage and current measurements, giving you the benefit of spot-on accuracy when testing non-linear signals. Thanks to a large backlit display, the unit's readings are a cinch to see in most light conditions. A hold function lets you conveniently capture measurements on the screen for analysis.
Features & Benefits
• Includes test leads and a type K thermocouple for convenience
• Ergonomic design fits comfortably into your hand
• Comes with a soft carry case for safe storage
• Light weight of 208g makes it easy to carry around
• Ergonomic design fits comfortably into your hand
• Comes with a soft carry case for safe storage
• Light weight of 208g makes it easy to carry around
Applications
• Factory buildings
• Maintenance technicians
• HVAC installers
• Construction industry
• Maintenance technicians
• HVAC installers
• Construction industry
What temperature range can this clamp meter measure?
The handy tool is accurate in extreme locations, thanks to its wide temperature measurement range between -10°C and +400°C.
Can this clamp meter fit into small electrical enclosures?
A compact size of 207 (H) x 75 (W) x 34mm (D) means you can count on this meter to fit into constricted spaces.
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 400Ω |
| Model Number | 324 |
| Calibrated | RSCAL |
| AC Current Measurement Resolution | 10mA |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | ±(1.5% rdg +5 Digits) |
| Best AC Voltage Accuracy | ±(1.5% rdg +5 Digits) |
| Jaw Capacity Busbars | 30mm |
| Best DC Voltage Accuracy | ±(1% rdg +5 Digits) |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Resistance, Temperature |
| Height | 34mm |
| AC Voltage Measurement Resolution | 100mV |
| AC Voltage Measurement Range | 600 V |
| Maximum Conductor Size | 30mm |
| Weight | 208g |
| Safety Category Level | CAT III, CAT IV |
| Resistance Measurement Resolution | 100mΩ |
| Safety Category | CAT III 600 V, CAT IV 300V |
| Temperature Measurement Resolution | 0.1°C |
| Safety Category Voltage | 300 V, 600V |
| Battery Type | AAA |
| Absolute Maximum Temperature Measurement | +400°C |
| Length | 207mm |
| Minimum Operating Temperature | -10°C |
| Dimensions | 207 x 75 x 34mm |
| Maximum Operating Temperature | +50°C |
| Display Type | LCD |
| Width | 75mm |
| Power Source | Battery |
| DC Voltage Measurement Resolution | 100mV |
| AC Current Measurement Range | 40 A, 400 A |
