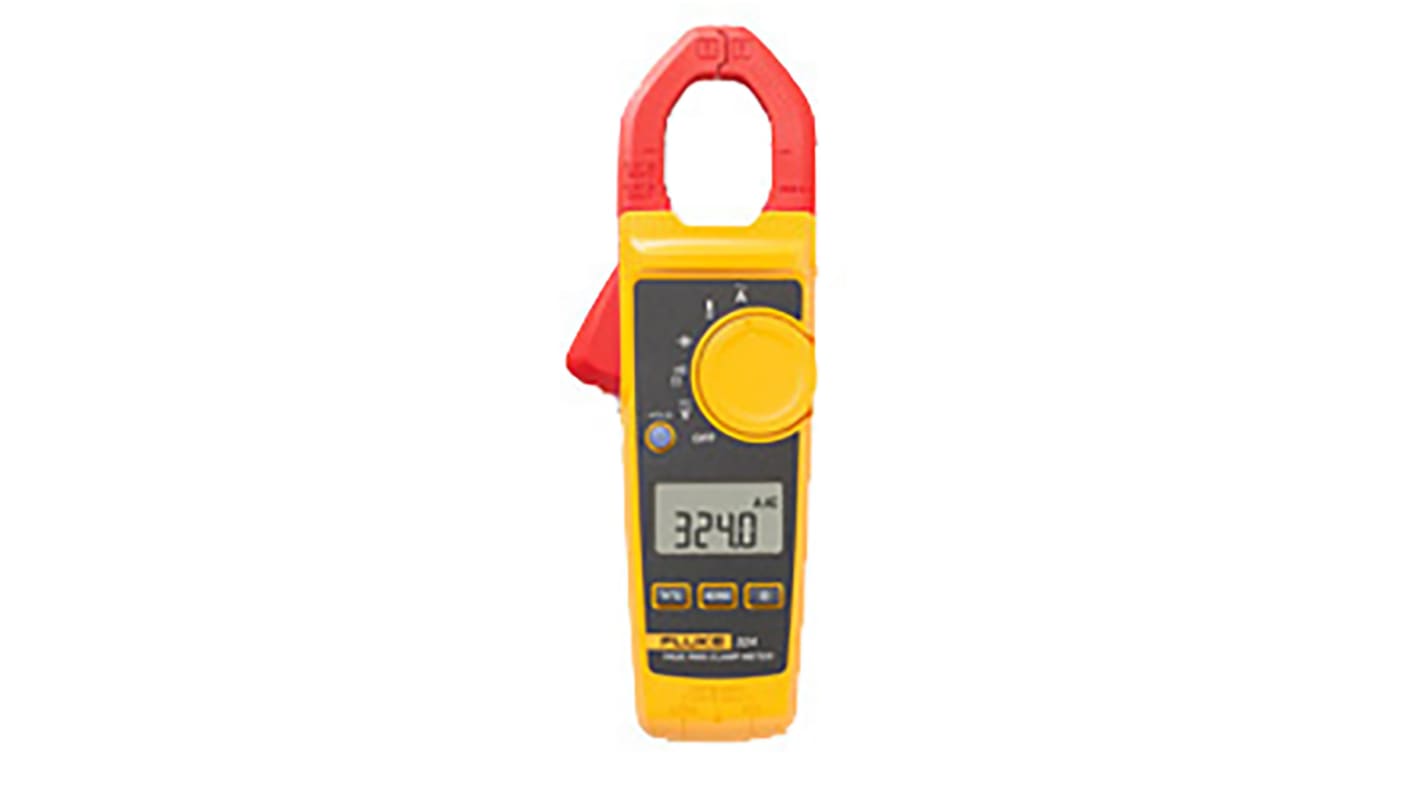

Fluke 324 Current, Voltage Clamp Meter, Max Current 400A ac CAT III 600V, CAT IV 300V With UKAS Calibration

  • RS Stock No. 765-7004
  • Mfr. Part No. FLUKE 324
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Fluke 320 Series True RMS Clampmeters

The Fluke 323, 324 and 325 are designed to perform in the toughest environments and provide noise-free, reliable results to diagnose problems. True RMS measurements and optimised ergonomics make the 320 Series the best and easiest-to-use general troubleshooting tools for commercial and residential electricians.

Features & Benefits

True RMS AC voltage and current for accurate measurements on non-linear signals The 325 also supports DC current measurement and min / max
Ergonomic, slender design
Improved functionality
Large, easy-to-read backlight display (324 and 325 only)
CAT IV 300 V/CAT III 600 V safety rating

Supplied with

Clamp meter, Test leads, Soft case, user manual.

Fluke True-RMS Clamp Meter

The Fluke 320 series True-RMS clamp meter with UKAS calibration measures current up to 400A AC and voltage up to 600V AC/DC. This product is designed to verify the presence of load current, AC voltage, and continuity of circuits, switches, fuses, and contacts. It also offers DC and frequency measurements and is supplied with test leads, a soft case and a user manual. You can trust the 324 to help you confidently diagnose all kinds of electrical problems. It is an ideal troubleshooting tool for commercial and residential electricians.

Features and Benefits

400ohm resistance measurement True RMS AC voltage and current for accurate measurements on non-linear signals Operating temperature ranges between -10°C and 50° Frequency measurement Slim, ergonomic design Large, easy to read backlight display Hold button

Applications

Electricians Commercial sites Residential plant maintenance Home inspections HVAC/R

Certifications

CE certified cUS approved TUV approved

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 400A ac
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 400Ω
Model Number 324
Calibrated UKAS
AC Current Measurement Resolution 10mA ac
Clamp Meter Type Current, Voltage
AC Voltage Measurement Resolution 0.1V ac
Maximum Conductor Size 30mm
Weight 208g
Safety Category Level CAT III, CAT IV
DC Voltage Measurement Resolution 0.1V
Power Source Battery
Width 75mm
Length 207mm
Temperature Measurement Resolution 0.1°C
Safety Category Voltage 300 V, 600 V
Battery Type AAA
Absolute Maximum Temperature Measurement +400°C
Dimensions 207 x 75 x 34mm
Safety Category CAT III 600V, CAT IV 300V
Resistance Measurement Resolution 100mΩ
Display Type LCD
Maximum Operating Temperature +50°C
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Resistance, Temperature
Minimum Operating Temperature -10°C
Height 34mm
