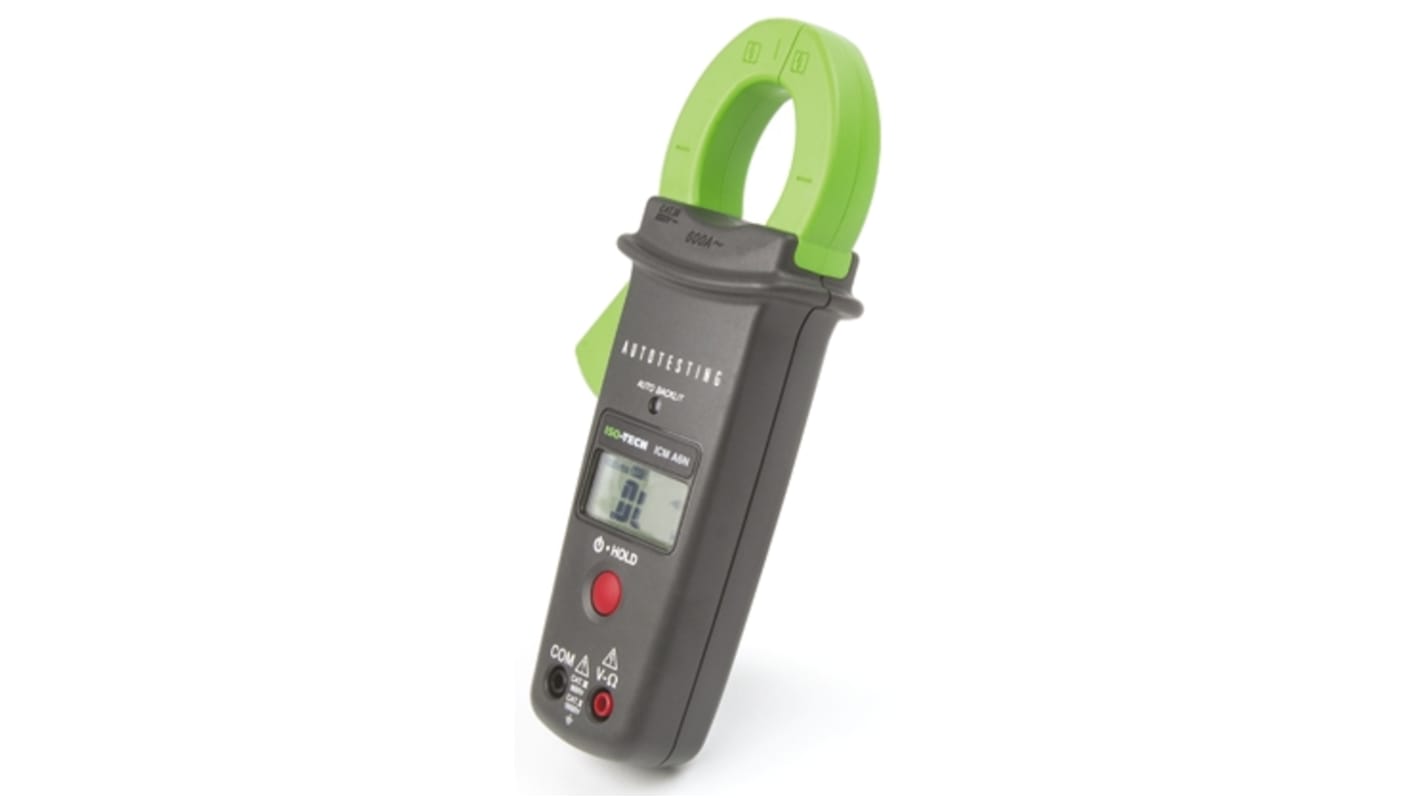

ISO-TECH ICMA6 Clamp Meter, Max Current 600A ac CAT II 1000 V CAT III 600 V With UKAS Calibration
- RS Stock No.:
- 699-1139
- Brand:
- ISO-TECH
Discontinued product
- RS Stock No.:
- 699-1139
- Brand:
- ISO-TECH
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details
ICM A6 Automatic Electrical Tester, 600A
Fully automatic intelligent tester that selects the measuring function dependant on input terminal and current clamp conditions. No range of function selection is necessary by the user. The priority is AC voltage, DC voltage, resistance then AC current.
10000 counts LCD display with annunciators
Auto sensing on ACV, DCV, Ω, ACA
600A ac measurement capability
750V ac/ 1000Vdc measurement range
2kΩ resistance range
Continuity and Diode Test
32mm conductor jaw capacity
Display hold
Auto–power off
Conforms to EN61010-1 (safety rating) CAT III 600V, CAT II 1000V
Auto sensing on ACV, DCV, Ω, ACA
600A ac measurement capability
750V ac/ 1000Vdc measurement range
2kΩ resistance range
Continuity and Diode Test
32mm conductor jaw capacity
Display hold
Auto–power off
Conforms to EN61010-1 (safety rating) CAT III 600V, CAT II 1000V
Supplied with
carry case, 2 x AA batteries, users instructions & test leads.
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 999.9V dc |
| Absolute Maximum Resistance Measurement | 10000Ω |
| Model Number | ICMA6 |
| Calibrated | UKAS |
| AC Current Measurement Resolution | 100mA ac |
| Clamp Meter Type | Continuity, Current, Diode, Resistance, Voltage |
| Best AC Current Accuracy | ±1.9% +5 digits |
| Best AC Voltage Accuracy | ±1.5% + 3 Digits |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode, Resistance |
| Best DC Voltage Accuracy | ±1% + 2 Digits |
| Safety Category | CAT II 1000 V CAT III 600 V |
| Best Resistance Measurement Accuracy | ±2% + 2 Digits |
| Display Type | LCD |
| Maximum Operating Temperature | +30 °C, +40 °C, +50°C |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | AAA |
| Power Source | Battery |
| Width | 83mm |
| Length | 200mm |
| Resistance Measurement Resolution | 1Ω |
| Dimensions | 200 x 83 x 48mm |
| DC Voltage Measurement Resolution | 0.1V dc |
| Minimum Operating Temperature | +30 °C, +40°C |
| Height | 48mm |
| AC Voltage Measurement Resolution | 0.1V ac |
| Maximum Conductor Size | 16mm |
| Battery Life | 250 h |
| Weight | 375g |
| Safety Category Level | CAT IV, CAT III |
