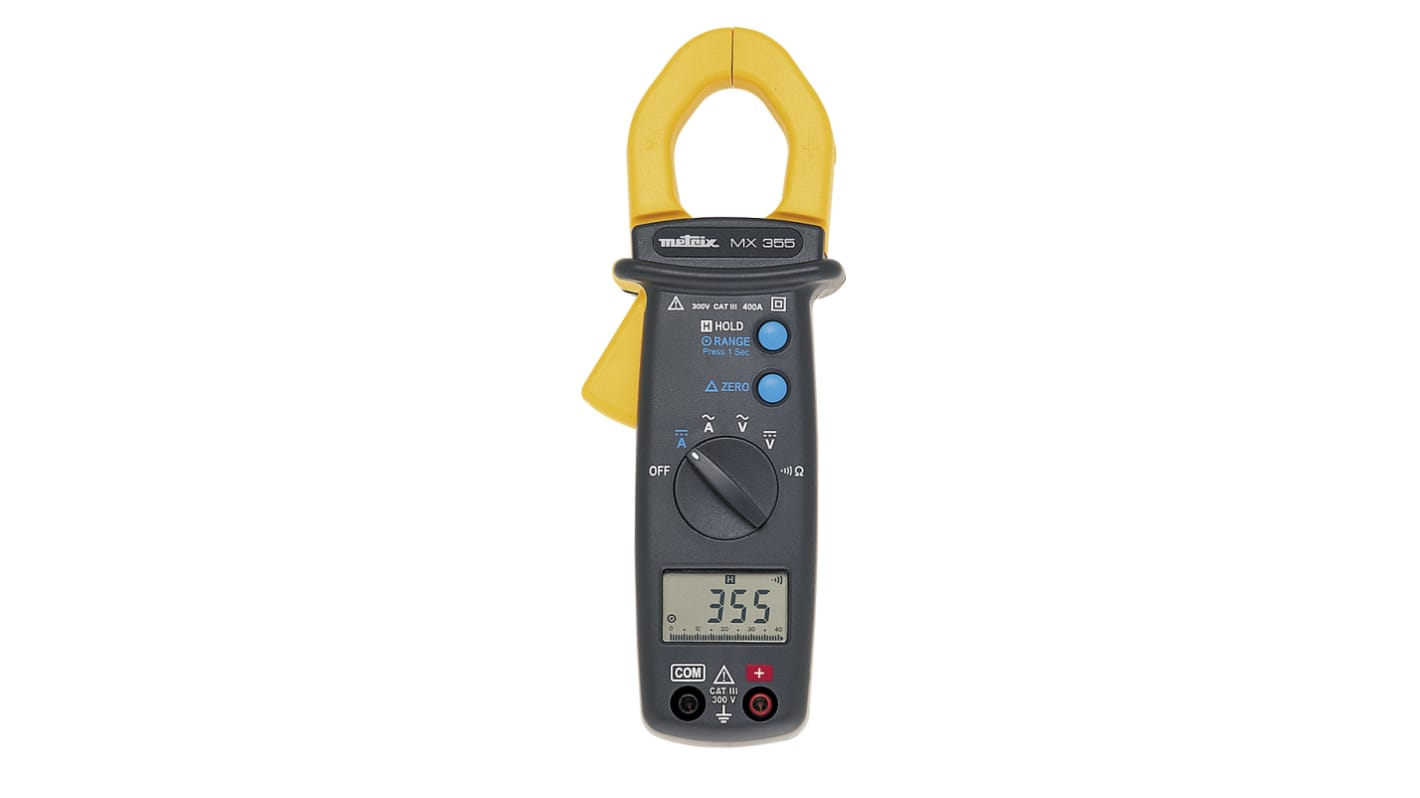

Metrix MX 355 Clamp Meter, 400A dc, Max Current 400A ac CAT III 600V With RS Calibration
- RS Stock No.:
- 192-5776
- Mfr. Part No.:
- MX0355-Z
- Brand:
- Metrix
Available to back order for despatch when stock is available
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£272.00
(exc. VAT)
£326.40
(inc. VAT)
| Units | Per unit |
| 1 + | £272.00 |
- RS Stock No.:
- 192-5776
- Mfr. Part No.:
- MX0355-Z
- Brand:
- Metrix
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Pocket clamp multimeters MX 350 and MX 355
Clamp-on ammeters for data acquisition.
Ergonomic, with 6000 count display, to measure voltage and AC and DC currents.
The hold function holds the measured value in difficult access or low-light conditions for analysis at a later time.
Combines different functions:multimeter, voltage and AC current measurement, ohmmeter and continuity testing.
The MX355's Δ Zero function allows the Zero dc to be automatically set, and can also be used for differential measurements.
Supplied with two batteries, a set of test leads and a carry case.
Available in calibrated version.
Ergonomic, with 6000 count display, to measure voltage and AC and DC currents.
The hold function holds the measured value in difficult access or low-light conditions for analysis at a later time.
Combines different functions:multimeter, voltage and AC current measurement, ohmmeter and continuity testing.
The MX355's Δ Zero function allows the Zero dc to be automatically set, and can also be used for differential measurements.
Supplied with two batteries, a set of test leads and a carry case.
Available in calibrated version.
Approvals
IEC 61010-1 and IEC 61010-2-032 Cat. III, 300 V - Cat. II, 600 V
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum DC Current Measurement | 400A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 399.9Ω |
| Model Number | MX 355 |
| Calibrated | RSCAL |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(2.5% rdg + 10dgts) |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | ±(2% rdg + 10dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
| Jaw Capacity Busbars | 30mm |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance |
| Best DC Voltage Accuracy | ±(1% rdg + 2dgts) |
| True RMS | Yes |
| Dimensions | 193 x 50 x 28mm |
| Maximum Operating Temperature | +40°C |
| Display Type | LCD |
| Best Resistance Measurement Accuracy | ±1% + 2 Digits |
| Safety Category | CAT III 600V |
| Battery Life | 40 h |
| Maximum Conductor Size | 30mm |
| Length | 193mm |
| Battery Type | AAA |
| Safety Category Voltage | 600V |
| DC Voltage Measurement Resolution | 100mV |
| Safety Category Level | CAT III |
| Weight | 243g |
| AC Voltage Measurement Resolution | 100mV |
| Width | 75mm |
| Power Source | Battery |
| Minimum Operating Temperature | 0°C |
| Height | 28mm |
- RS Stock No.:
- 192-5776
- Mfr. Part No.:
- MX0355-Z
- Brand:
- Metrix
