RS PRO RS380 AC/DC Clamp Meter, Max Current 400A ac CAT III 600 V With RS Calibration

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

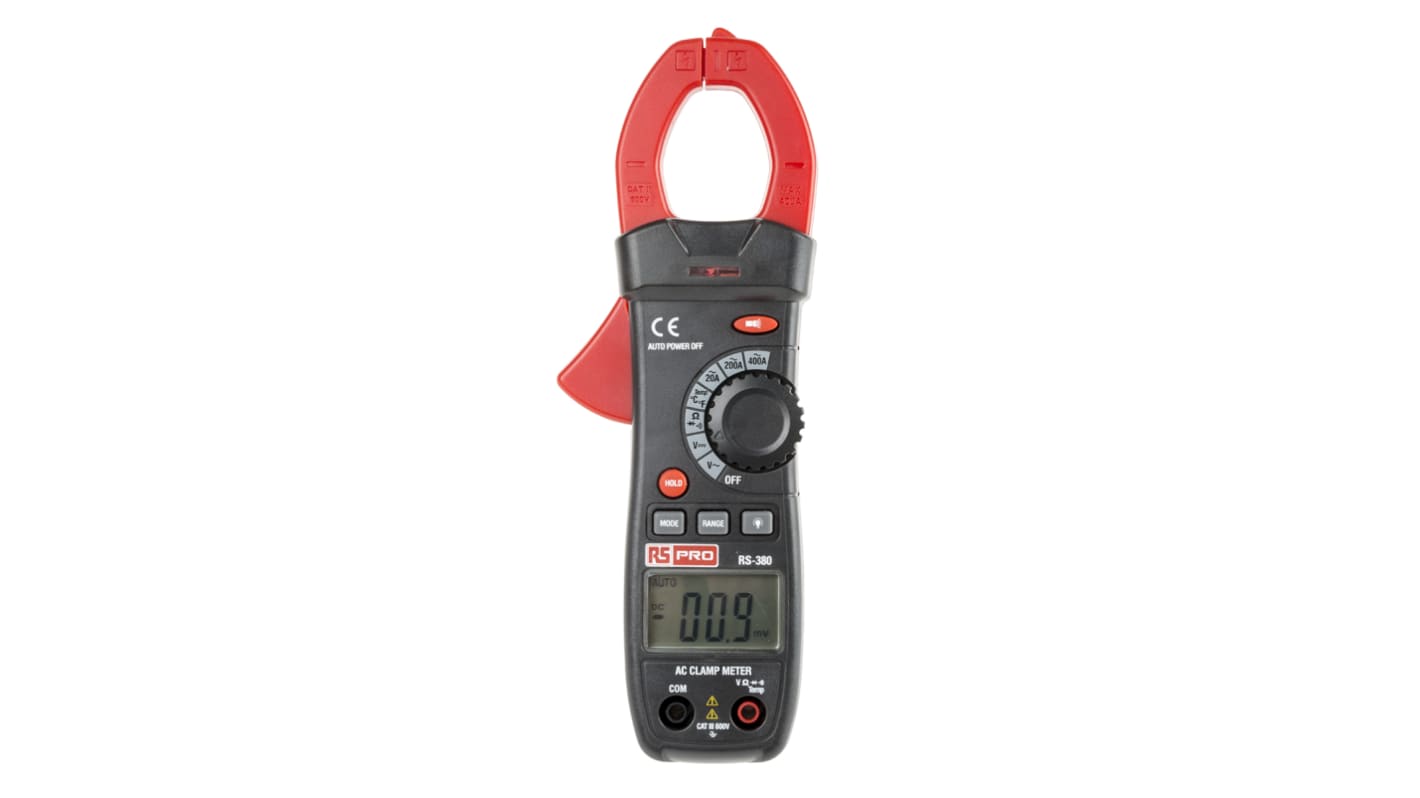

RS PRO RS380 Compact AC Auto-ranging Clamp Meter

A clamp meter is an electrical test tool that combines a basic digital multimeter with a current sensor. Clamps measure current such as AC current, AC and DC voltage, resistance, continuity, and, with some models, DC current, capacitance, temperature, frequency and more. Due to the hinged jaw, this tool allows the user to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure the current without disconnecting it.

The RS380 is a great value meter with a small body and jaw which opens 30mm (1.2"). Also available with this multimeter is test leads, a carrying case, temperature probe, 2 x AAA 1.5 V batteries and a user manual. There is also a “hold” function available in the compact design making it very user friendly

Features and Benefits:

• 400 A AC Current Measurement
• 2000 Counts LCD display
• Auto power off
• Low battery indicator
• Non-contact voltage detection
• Resistance measurement, test measurement, Continuity and diode check
• Overvoltage Category III 600 V

Dimensions: 197 mm x 70 mm x 40 mm

Supplied with

Test leads, carrying case, temperature probe, AAA 1.5 V batteries x2 and user manual

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 400A ac
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 20MΩ
Model Number RS380
Calibrated RSCAL
AC Current Measurement Resolution 0.01A ac
Clamp Meter Type AC/DC Clamp Meter
Best AC Current Accuracy ±2.5% ± 5 Digits
Best AC Voltage Accuracy ±1.5% ± 10 Digits
Best DC Voltage Accuracy ±1.5% ± 2 Digits
Width 40mm
Best Temperature Measurement Accuracy ±3% ± 5 Digits
True RMS Yes
Non-Contact Voltage Detector Yes
Best Resistance Measurement Accuracy ±1% ± 4 Digits
Height 230mm
Safety Category CAT III 600 V
Weight 230g
Safety Category Voltage 600V
Length 82mm
Display Type LCD
Temperature Measurement Resolution 1 °C, 1 °F
DC Voltage Measurement Resolution 0.1mV dc
Absolute Maximum Temperature Measurement +760 °C, +1400 °F
Power Source Battery
Minimum Operating Temperature +5°C
AC Voltage Measurement Resolution 0.1mV ac
Safety Category Level CAT III
Dimensions 82 x 40 x 230mm
Resistance Measurement Resolution 100mΩ
Jaw Capacity Busbars 30mm
Maximum Operating Temperature +40°C
Functions Measured AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance, Temperature
Battery Type AAA
