Martindale CM69 Clamp Meter, Max Current 60A ac CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT IV 600

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): TW
Product Details

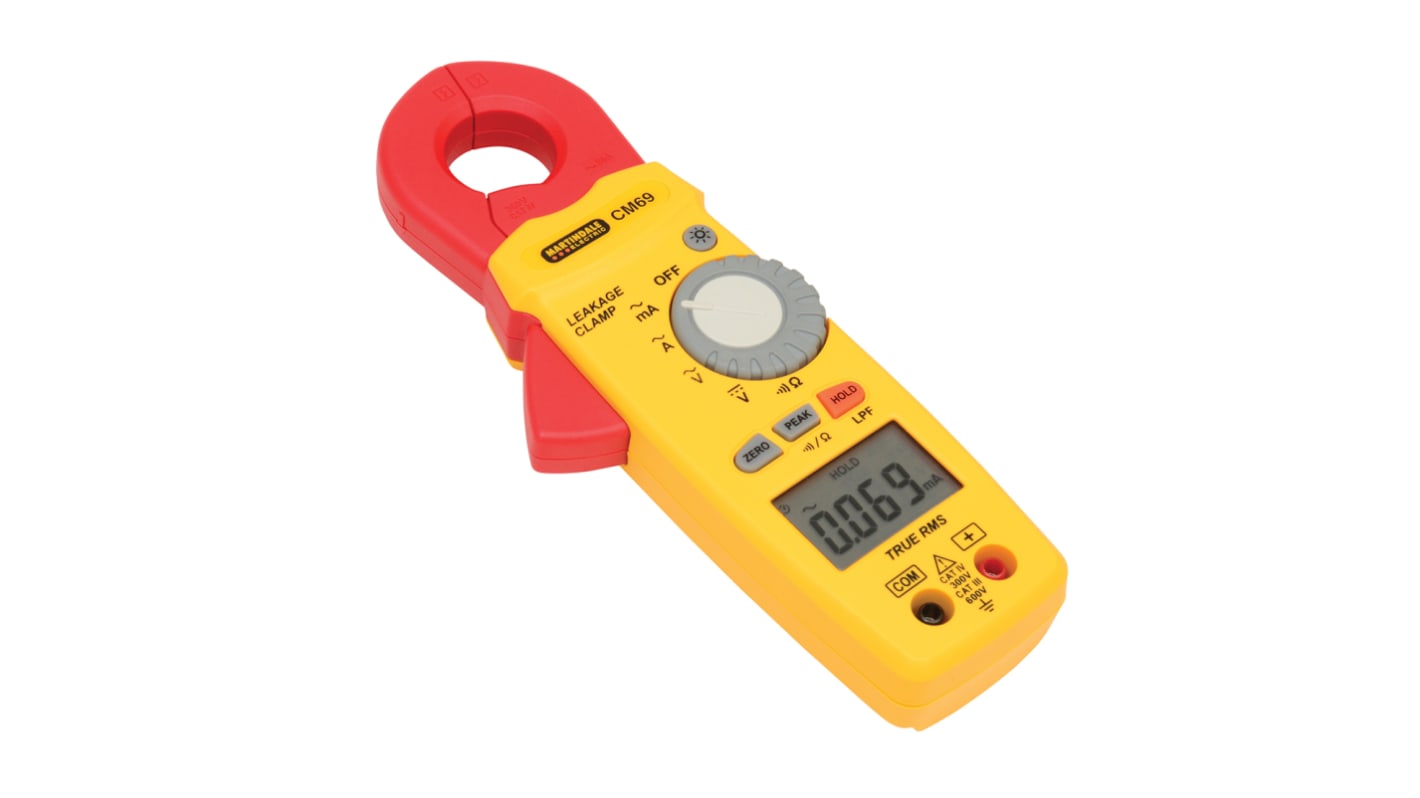

Martindale CM69 TRMS AC Earth Leakage Clampmeter

CM69 is a high performance TRMS AC Leakage clamp meter with outstanding low current capability. The pocket sized clamp also measures AC-DC voltage and resistance. The advanced jaw design minimises the influence of conductor position and shields against external fields from other conductors to give more accurate and consistent results.

Earth leakage clamps operate by clamping around both the live and neutral conductors. They also measure the difference between the currents flowing, allowing the "leakage value" to be displayed. Alternatively clamping around the earth conductor displays the earth leakage current.

Features and Benefits

Peak hold
Switchable low pass filter
TRMS measurement
Troubleshooting of RCD nuisance tripping
Periodic measurement of leakage current @ 50 Hz to check for insulation deterioration
Accurate measurement of triple neutral currents and other distorted waveforms
Differential current measurement for appliance testing
Auto ranging
High contrast backlit display

Supplied with

TL16 test leads, soft carry case, alkaline batteries and manual

Martindale Trms AC Earth Leakage Clamp Meter

The Martindale AC earth leakage clamp meter is a new age device measures the current up to 60A AC/DC and voltage up to 600VAC/DC. The advanced jaw design minimises the influence of conductor position and shields against external fields from other conductors to give more accurate and consistent results. They also measure the difference between the currents flowing by displaying the ’leakage value’. Alternatively, clamping around the earth conductor displays the earth leakage current.
It includes TL16 test leads, a soft carry case, 2 x 1.5V alkaline batteries, and a user’s manual.

Features and Benefits

• 600kohm resistance measurement with a continuity
• Peak hold
• Switchable low pass filter
• Troubleshooting of RCD nuisance tripping
• Periodic measurement of leakage current at 50Hz to check for insulation deterioration
• Accurate measurement of triple neutral currents and other distorted waveforms
• Differential current measurement for appliance testing
• Auto ranging
• True RMS measurement
• Auto power off and low battery indicator
• High contrast backlit display
• Operating temperature ranges between 0°C and 40°C

Applications

• Petrochemical
• Oil and gas
• Food and beverage
• Pharmaceutical

Certifications

• EN 61010-1
• EN 61010-2-032
• CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT IV 600 V

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 60A ac
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 600kΩ
Model Number CM69
Calibrated UKAS
AC Current Measurement Resolution 0.001mA
Best AC Current Accuracy 1 % + 8 Digits
Best AC Voltage Accuracy 1 % + 3 Digits
Best DC Voltage Accuracy 1 % + 2 Digits
Width 76mm
True RMS Yes
Battery Type AAA, Alkaline, 1.5 V
Safety Category CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT IV 600 V
Height 33.5mm
Best Resistance Measurement Accuracy 1 % + 2 Digits
Functions Measured AC Current, AC Voltage, Continuity, DC Voltage, Resistance
Maximum Operating Temperature +40°C
Jaw Capacity Busbars 23mm
Resistance Measurement Resolution 100mΩ
Dimensions 206 x 76 x 33.5mm
Safety Category Level CAT II, CAT III, CAT IV
AC Voltage Measurement Resolution 0.01V
Minimum Operating Temperature 0°C
Length 206mm
Power Source Battery
Weight 262g
Safety Category Voltage 300 V, 600 V, 1000 V
Display Type Backlit LCD
Maximum Conductor Size 20mm
Battery Life 40 h @ AC, 60 h @ DC
DC Voltage Measurement Resolution 0.01V
12 In stock for delivery within 2 working days
Price Each
Was £327.39
£ 298.00
(exc. VAT)
£ 357.60
(inc. VAT)
Units
Per unit
1 +
£298.00
Not available for guaranteed pre 9am/10am delivery
