Fluke 345 Current, Frequency, Harmonics, Kilowatt Hour, Power, Power Factor, Voltage Clampmeter, Max Current 1.4kA ac,

  • RS Stock No. 327-784
  • Mfr. Part No. Fluke 345
  • Warranty 2 Year
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): MY
Product Details

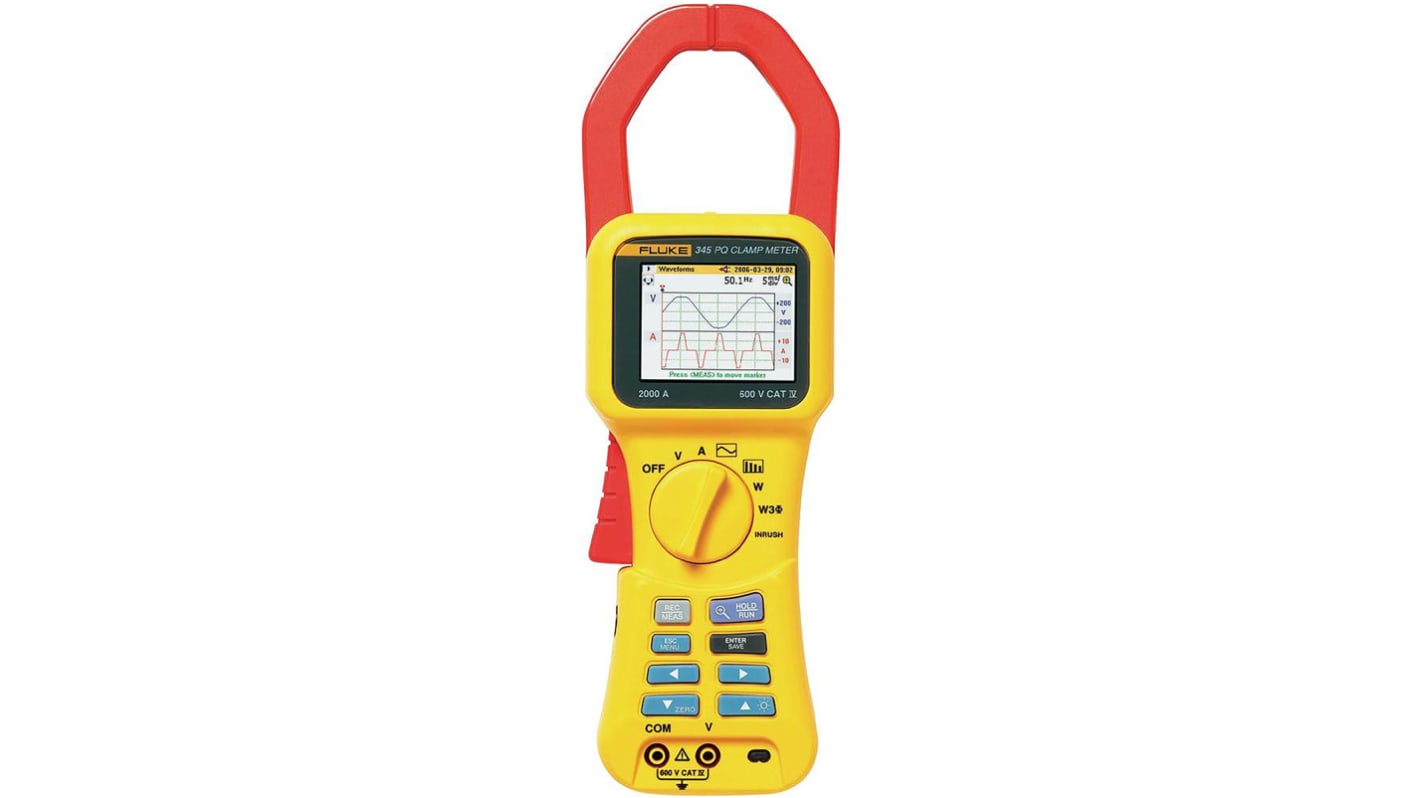

Fluke 345 Power Quality Clamp Meter

The Fluke 345 measures a wide range of electrical parameters for troubleshooting power disturbances in single- and three phase electrical loads. With a bright colour display to see waveforms and trends, a low-pass filter to remove high frequency noise, and a high EMC immunity design, the Fluke 345 is ideal for measurements on switching loads such as variable speed drives, electronic lighting and UPS systems.

Clamp-on measurement of ac current up to 1400A rms and dc current up to 2000A without breaking the circuit
Low pass filter ensures the clamp meter is accurate in noisy environments even with distorted waveforms present on electronic loads
Identify intermittent faults by logging any power quality parameter for minutes, or over a month, including harmonics
Direct measurement of dc ripple (%) for battery and dc systems
Analyse and log harmonics digitally or graphically
Inrush current measurement to capture and analyse nuisance tripping, from 3 to 300 seconds
Large backlit colour display of waveforms (scope function) and trends
Balanced 3-phase power measurement capability
Power Log software supplied to view graphs and generate reports on a PC
USB interface
Harmonic analysis: Analyse, display and log harmonics up to the 30th harmonic (40th harmonic for 15Hz to 22Hz)
Verify batteries: Direct measurement of dc ripple (%) for battery and dc systems
EN61010 safety rating: 600V CAT IV / 1000V CAT III rated for use at the service entrance

Supplied with

Test Leads, Power Log software on CD-ROM, USB lead, batteries(fitted), mains adaptor, carry case & instructions.

Fluke Power Quality Clamp Meter

The Fluke power quality clamp meter is the ideal meter for commissioning and troubleshooting modern electrical loads. With a bright colour display to analyse the harmonic spectrum, a low-pass filter to remove high-frequency noise, and a high EMC immunity design, the Fluke 345 is ideal for measurements on switching loads such as variable frequency drives, electronic lighting and UPS systems. Additionally, the Hall Effect measurement system makes the measurement of DC possible without the need to break the circuit, and the internal memory enables long-term logging for analysis of trends or intermittent problems. Clamp-on measurement of AC up to 1400A RMS and DC up to 2000A without breaking the circuit. This meter contains test leads, power log software on CD-ROM, USB lead, batteries (fitted), mains adaptor, carry case and instructions.

Features and Benefits

• Voltage measurement is 825V AC/DC
• Minimum, maximum, average and inrush recording to capture variations automatically
• Logs any power quality parameter, including harmonics for minutes or for over a month to help identify intermittent faults
• The low-pass filter to smooth out noisy loads and stabilize readings
• Verifies batteries with direct measurement of DC ripple (%) for battery and DC systems
• Analyses and logs harmonics digitally or graphically
• Downloads logged data via USB with Power Log application software making it easy to view trends and screenshots, analyse and create reports
• Powers the instrument without using the battery when performing extended logging sessions
• Provides built-in three-phase power measurement capability for balanced loads
• USB interface
• Display HOLD
• Operating temperature ranges between 0°C and 50°C

Applications

• Set up and troubleshoot variable frequency drives and UPS systems
• Harmonics measurement
• Inrush capture
• Load studies

Certifications

• CE
• cCSAus
• IEC/EN 61326-1:1997 class B
• IEC/EN 61326-1:1997
• CAT IV 600V safety rating

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 1.4kA ac
Absolute Maximum DC Current Measurement 2000A dc
Absolute Maximum AC Voltage Measurement 825V ac
Absolute Maximum DC Voltage Measurement 825V dc
Model Number 345
Calibrated RSCAL
AC Current Measurement Resolution 10mA ac
DC Current Measurement Resolution 10mA dc
Best DC Current Accuracy ±1.5% + 5 Digits
Clamp Meter Type Current, Frequency, Harmonics, Kilowatt Hour, Power, Power Factor, Voltage
Best AC Current Accuracy ±1.5% +5 digits
Best AC Voltage Accuracy ±1.5% + 5 Digits
Best DC Voltage Accuracy ±1.5% + 5 Digits
Width 98mm
True RMS Yes
Battery Type AA
AC Voltage Measurement Resolution 1mV ac
Safety Category Level CAT IV
Dimensions 300 x 98 x 52mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
Height 52mm
Weight 820g
Battery Life 10 (Backlight On) h, 12 (Backlight Off) h
Maximum Conductor Size 58mm
Safety Category CAT IV 600 V
Safety Category Voltage 600V
DC Voltage Measurement Resolution 1mV dc
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Harmonics, Kilowatt Hour, Power, Power Factor, VAR, Voltage
Length 300mm
Display Type LCD
Power Source Battery
8 In stock for delivery within 2 working days
Price Each
£ 1,431.00
(exc. VAT)
£ 1,717.20
(inc. VAT)
