ABCIRP Series Connector Seal Backshell, Shell Size 22 for use with ABCIRP Series

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

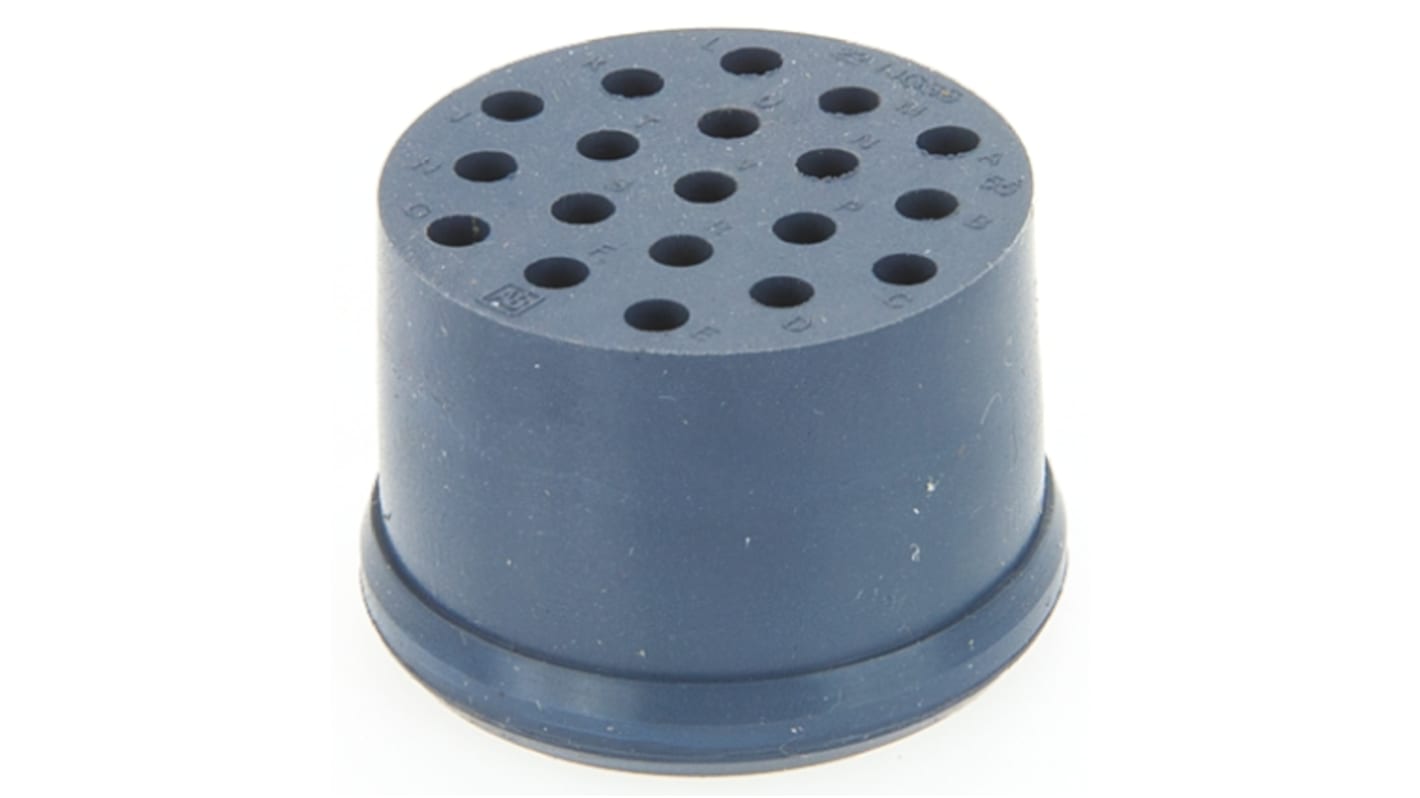

AB Connectors ABCIRP Connector Grommet Seal

A comprehensive range of male and female contact wire sealing grommets suitable for use with the ABCIRP range of MIL-C-5015 square flange receptacle mount connectors and cable mount plug connectors, featuring a low fire hazard rubber which has been tested to NFF 16101 norm and to meet BS 6853.

AB Connectors, ABCIRP Connector Range

Specifications
Attribute Value
Seal Type Backshell
Shell Size 22
For Use With ABCIRP Series
IP Rating IP67
Series ABCIRP
Contact Size 16
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
491 In stock for FREE next working day delivery
Price Each
£ 2.27
(exc. VAT)
£ 2.72
(inc. VAT)
Units
Per unit
1 - 4
£2.27
5 - 9
£2.03
10 - 24
£1.82
25 - 49
£1.64
50 +
£1.48
