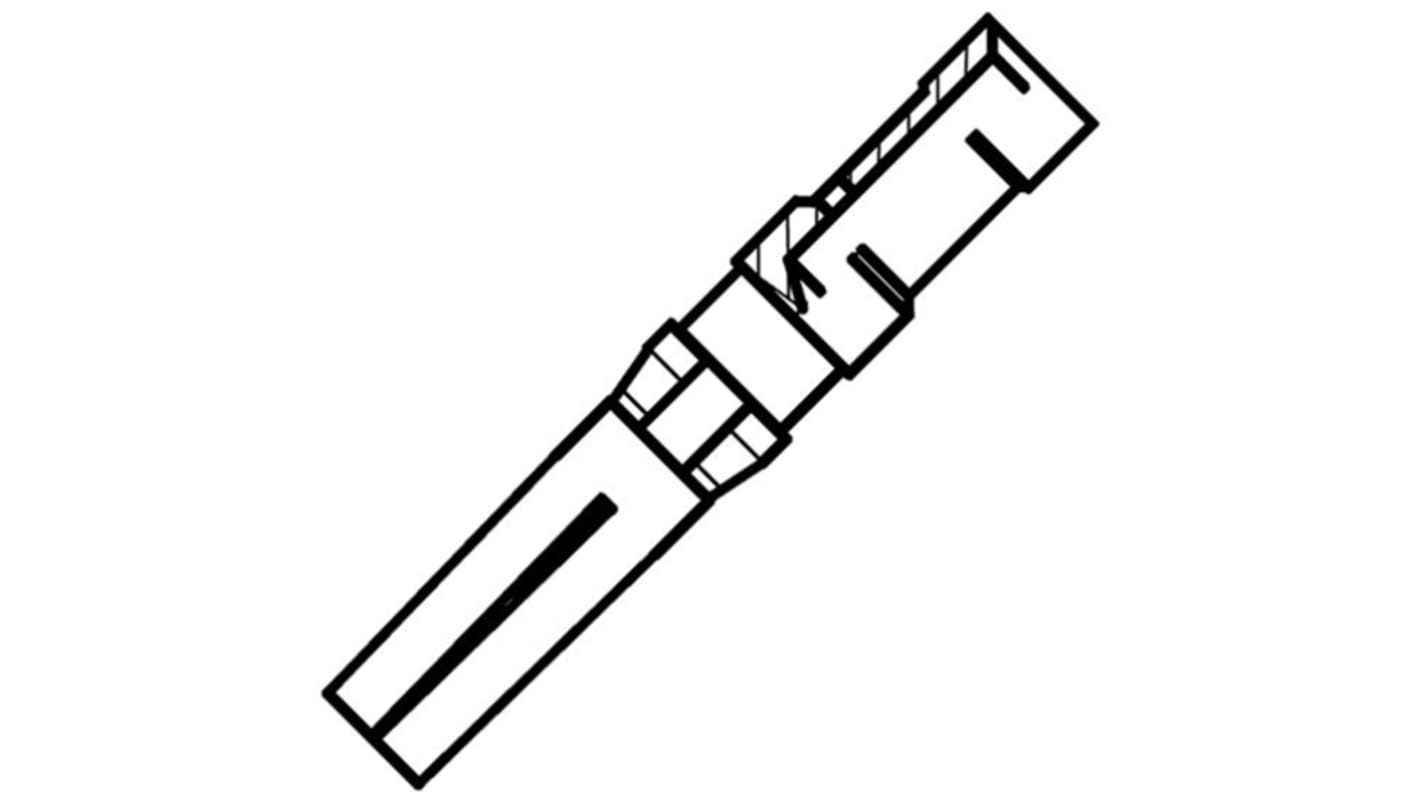

Souriau Female Crimp Circular Connector Contact, Contact Size 12, Wire Size 14 AWG
- RS Stock No.:
- 851-0249
- Mfr. Part No.:
- 82911464K
- Brand:
- Souriau Sunbank by Eaton
Discontinued product
- RS Stock No.:
- 851-0249
- Mfr. Part No.:
- 82911464K
- Brand:
- Souriau Sunbank by Eaton
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Souriau 8291 Series
The 8291 Series from Souriau offers customers the opportunity to reduce the number of connectors when combining signal and high current applications into 1 connector. The signal cavities accept the full range of TRIM TRIO size 16 contacts for applications up to 13 A.
For use with the TRIM TRIO™ range
Pin and Socket contacts are solid machined crimp snap-in and sockets for heavy duty top performance requirements
Springs on both contacts are made of spring tempered, heat-treated beryllium copper
Pin and Socket contacts are solid machined crimp snap-in and sockets for heavy duty top performance requirements
Springs on both contacts are made of spring tempered, heat-treated beryllium copper
Souriau 8291 Series
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Contact Size | 12 |
| Wire Size | 14 AWG |
| Termination Method | Crimp |
| For Use With | Trim Trio Connectors |
| Current Rating | 26A |
| Contact Plating | Gold over Nickel |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | ≤5mΩ |
| Mounting Type | Cable Mount |
