- RS Stock No.:
- 160-0932
- Mfr. Part No.:
- 163086-1
- Brand:
- TE Connectivity
850 In stock - FREE next working day delivery available
650 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 50)
£1.393
(exc. VAT)
£1.672
(inc. VAT)
Units | Per unit | Per Pack* |
50 - 1200 | £1.393 | £69.65 |
1250 - 3700 | £0.836 | £41.80 |
3750 - 9950 | £0.78 | £39.00 |
10000 - 19950 | £0.752 | £37.60 |
20000 + | £0.725 | £36.25 |
*price indicative |
- RS Stock No.:
- 160-0932
- Mfr. Part No.:
- 163086-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details

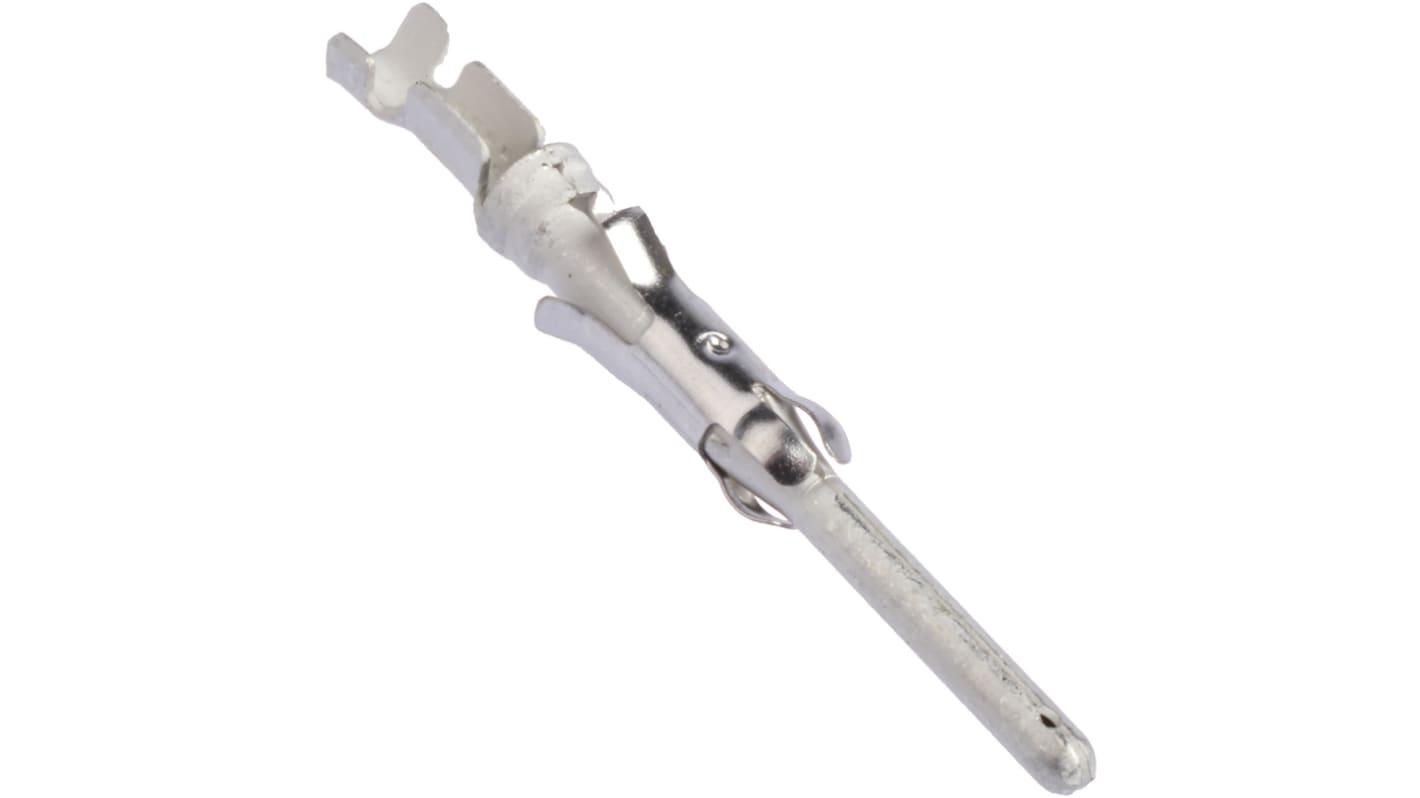

Crimp Contacts Type III+
TE Connectivity presents their range of M series crimp contacts type III+. This range includes specifically designed tinned brass contacts with stainless steel springs, insulation support and also suitable support tools such as extraction tools. These 5 mm pitch connectors are perfect for panel or free mounting with higher pinout that the TE Mate-N-Lok range.
Pins Features and Benefits
Operating Temperature Range: -55 – 90 °C
Contact Base Material: Brass
Contact Current Rating (Max) (A): 13
Contact Mating Area Plating Thickness: .76 μm [30 μin]
Contact Base Material: Brass
Contact Current Rating (Max) (A): 13
Contact Mating Area Plating Thickness: .76 μm [30 μin]
Extraction Tool Features and Benefits
Insertion & Extraction Tool Type: Contact Extraction
Insertion & Extraction Tool Application: Contact-to-Housing
Insertion & Extraction Tool Application: Contact-to-Housing
5mm Pitch connectors
For panel or free mounting
Higher pinout than the Mate-N-Lok range
For panel or free mounting
Higher pinout than the Mate-N-Lok range
Specifications
Attribute | Value |
---|---|
Gender | Male |
Contact Size | 16 |
Wire Size | 24 → 20 AWG |
Termination Method | Crimp |
Series | Type III |
Current Rating | 13A |
Length | 27.5mm |
Contact Plating | Tin |
Contact Material | Brass |
Mounting Type | Cable Mount |
