Amphenol, 97Size 10SL, 12S Straight Cable Clamp, For Use With Jacketed Cable, Wires Protected by Tubing

  • RS Stock No. 873-1793
  • Mfr. Part No. 97-3057-1004(676)
  • Brand Amphenol
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

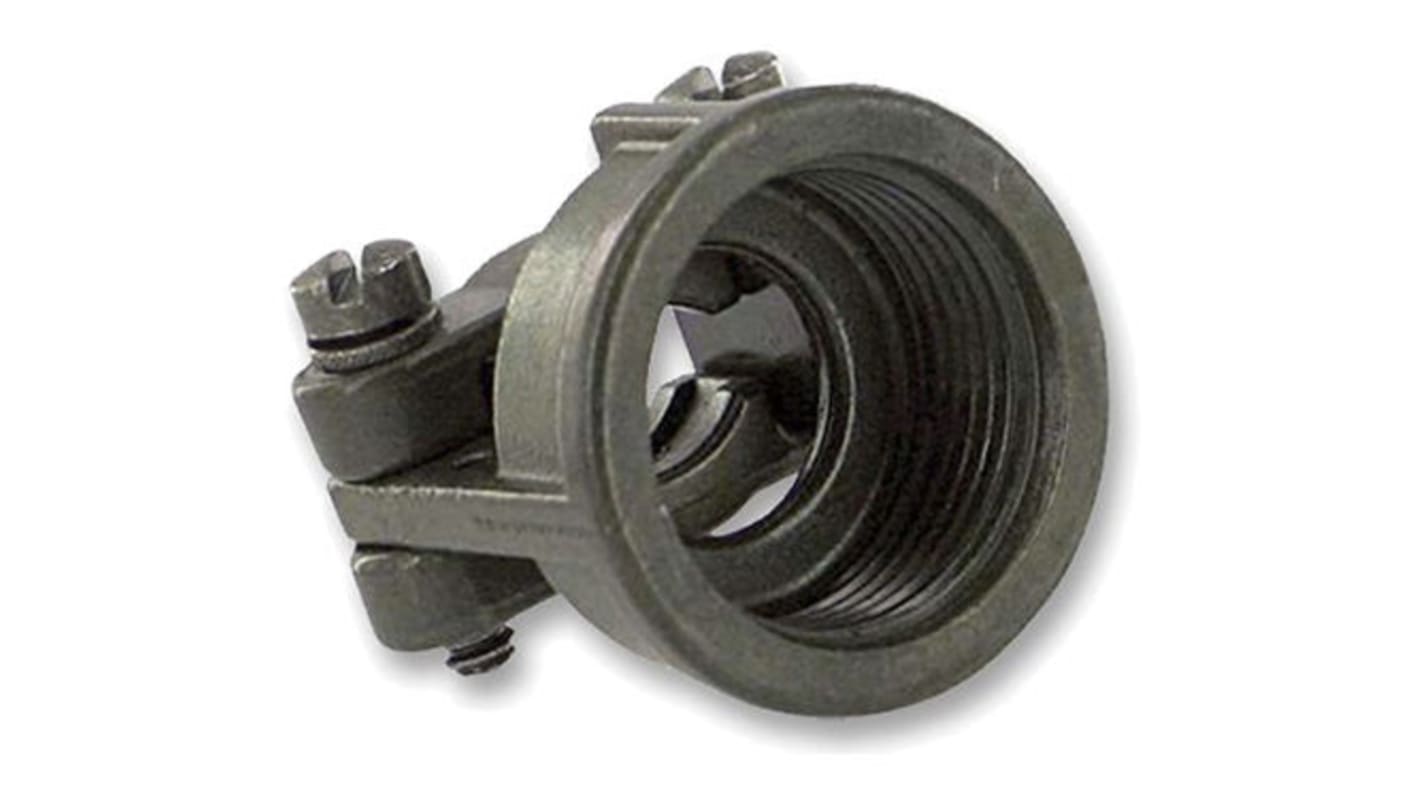

Amphenol 97 Series Cable Clamps MS3057A

Amphenol 97 series cable clamps for jacketed cable or wires protected by tubing. Both clamping halves float for maximum strain relief.

Amphenol - 97 Series

Amphenol's 97 Connector series provide the interconnection solution for low cost, general duty applications. The connectors are widely used in a range of applications such as factory automation, robotics, machine tooling, welding equipment and medical equipment. Shell components are fabricated from high grade aluminium alloy to provide strength andl protection. The series offers a wide range of shell styles. contact patterns and accessory options.

Low cost, general duty applications
Solder or crimp termination
Available in a range of shell styles and insert patterns
Shell components are fabricated from high grade aluminium alloy
Wide selection of connector finishes - cadmium or non-cadmium (environmentally friendly zinc alloy)
Available accessories for both individual wire seal and jacketed cable
Thread coupling
Hard dielectric inserts

Approvals

UL recognized and CSA recognized

Specifications
Attribute Value
For Use With Jacketed Cable, Wires Protected by Tubing
Shell Size 10SL, 12S
Body Orientation Straight
Thread Size 5/8 in - 24
Length 20.19mm
Series 97
Available to back order for despatch 14/01/2021
Price Each (In a Pack of 50)
£ 5.474
(exc. VAT)
£ 6.569
(inc. VAT)
Units
Per unit
Per Pack*
50 +
£5.474
£273.70
*price indicative
