Valsteam ADCA Brass Sight Glass Sight Glass 3/4 in Rp Female

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): PT
Product Details

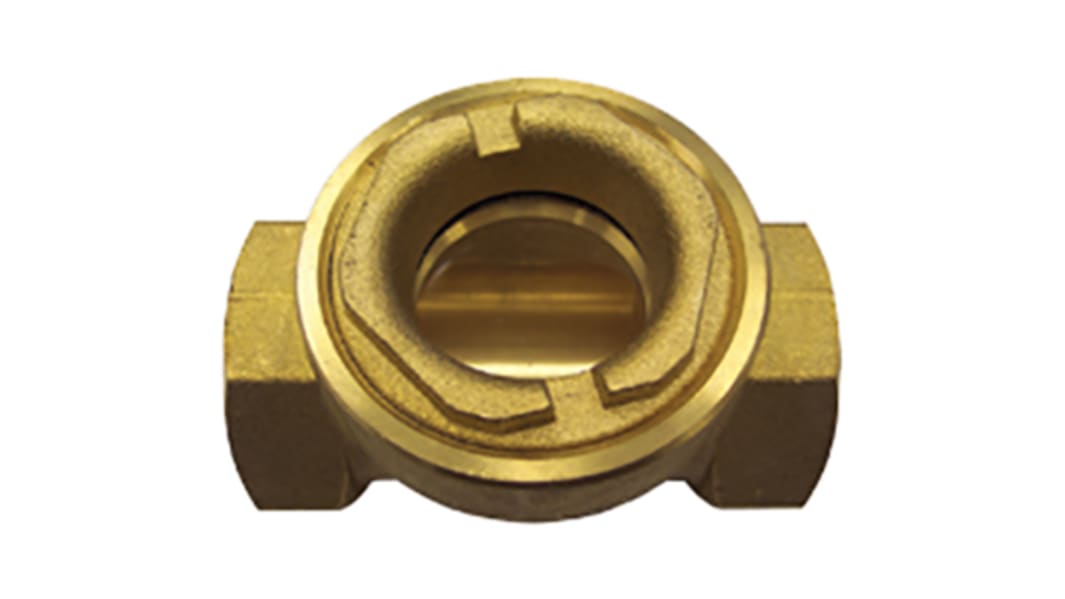

Single Window Sight Glass

A single window sight glass used to visually check the condition and leakage of steam traps. It is recommended that a sight glass be installed downstream of the steam trap, which is exactly how this one has been designed. The body and glass nut are made of brass and the gasket is non-asbestos, with a borosilicate glass window.

Features and Benefits

• Connections are female screwed
• 5 mm thick glass
• Horizontal or vertical installation

Specifications
Attribute Value
Type Sight Glass
Connection 3/4 in Rp Female
Body Material Brass
Maximum Working Pressure 12 bar
Thread Size 3/4in
Thread Standard BSP
Available to back order for despatch 02/10/2020
Price Each
£ 70.51
(exc. VAT)
£ 84.61
(inc. VAT)
Units
Per unit
1 +
£70.51
