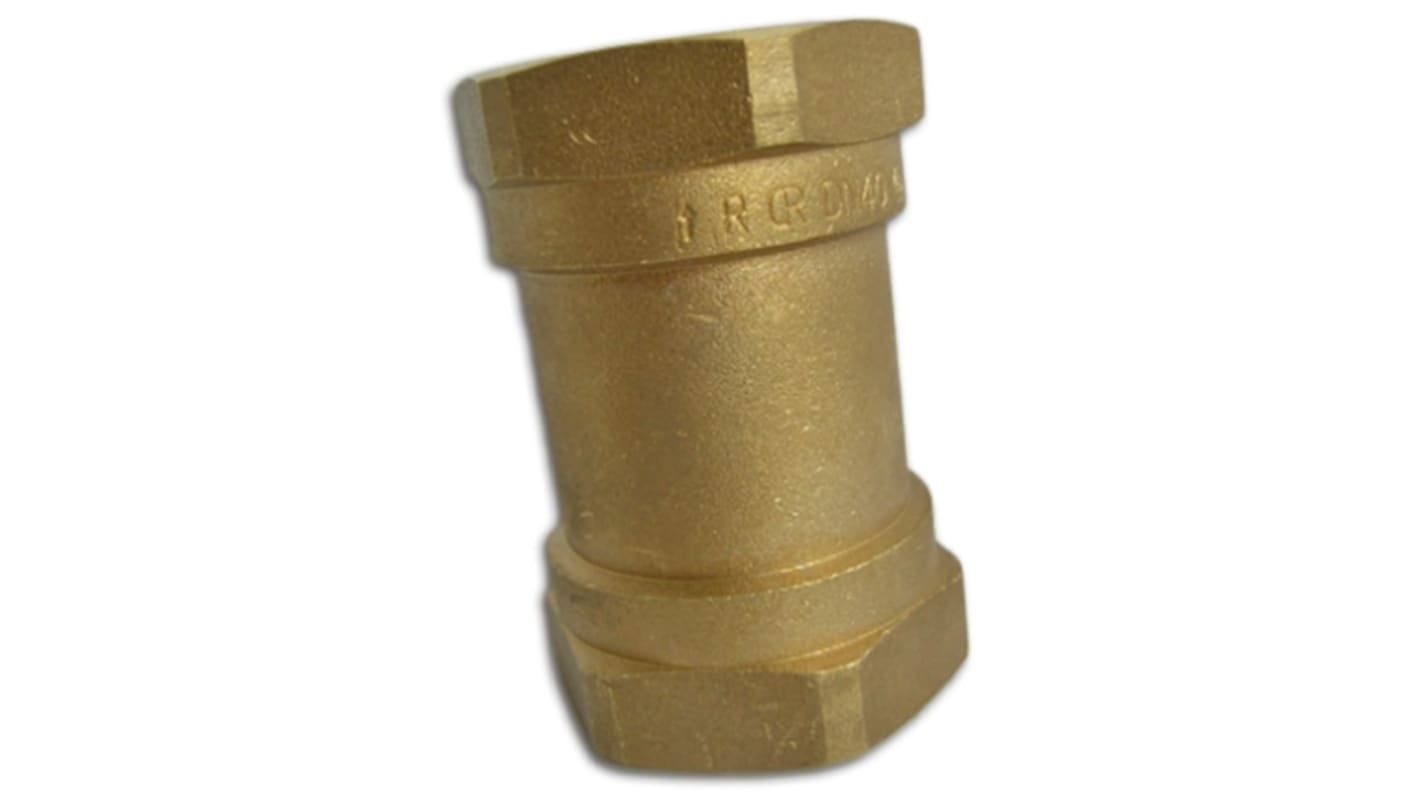

Reliance Brass Single Non Return Valve Floguard 1-1/2 in BSP Female

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Floguard® Single Check Valves

Single check valve protects against the risk of back flow and back syphonage contaminations
Compact lightweight construction for easy installation
Minimum pressure drop giving good flow rates
Ideal for all Class 2 contamination risks as per Water Supply (water fittings) Regulations 1999
Available with a comprehensive selection of FBSP and compression connections
Body: DZR Brass
Seals: NBR Elastomor
Check Cartridges: Acetyl Copolymer
Spring: Stainless Steel

Approvals

WRAS

Specifications
Attribute Value
Type Single
Connection 1-1/2 in BSP Female
Body Material Brass
Maximum Working Pressure 10 bar
Thread Size 1-1/2in
Thread Standard BSP
2 In stock - FREE next working day delivery available
Price Each
£ 36.27
(exc. VAT)
£ 43.52
(inc. VAT)
Units
Per unit
1 - 4
£36.27
5 - 9
£35.14
10 +
£34.01
