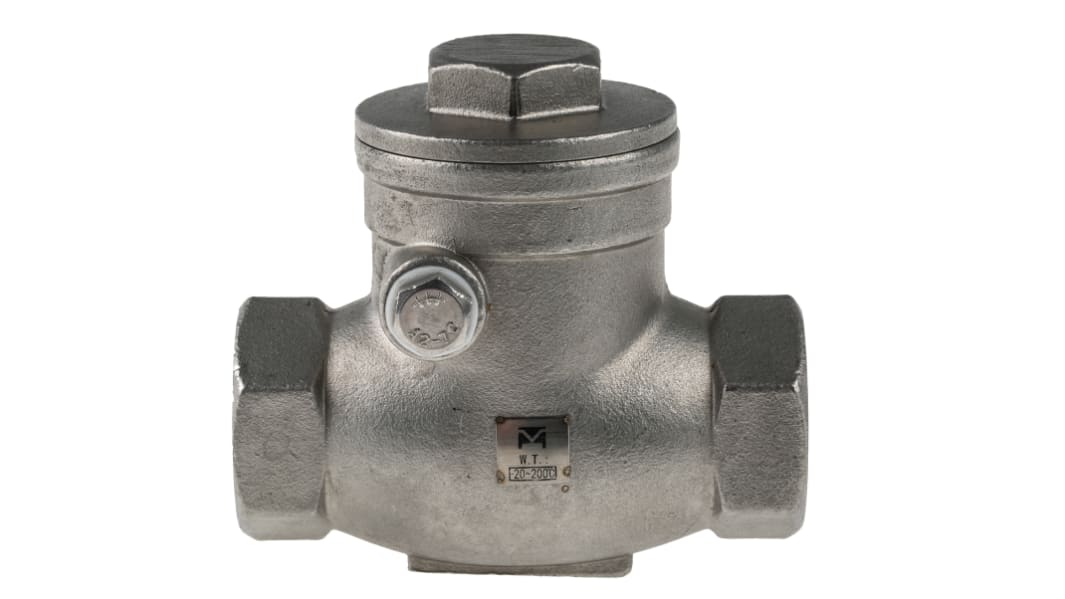

RS PRO Stainless Steel Single Non Return Valve 3/4 in BSP

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

CF8M Stainless Steel Check Valves

RS Pro Brand Screwed End Swing Check Valves that allow liquids to flow in only one direction.

Features:

1/2 - 3" (DN15 - DN80)
W.P: 200 WOG
W.T: -20°C - 200°C (-4°F - 392°F)
Investment casting
Socket weld (option)
Thread type: ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO7/1 & EN10226

Material:

Body, Cap & Disc - ASTM A351-CF8M
Seal & Gasket - PTFE
Plug - AISI 316
Bolt - AISI 304

//media.rs-online.com/t_line/L4992638-01.jpg

Standards

DIN 1.4408

Non Return/Check Valves - Swing Type

Non-return or check valves which allow flow in one direction only.

Specifications
Attribute Value
Type Single
Connection 3/4 in BSP
Body Material Stainless Steel
Maximum Working Pressure 14 bar
Thread Size 3/4in
Thread Standard BSP
23 In stock - FREE next working day delivery available
Price Each
£ 42.34
(exc. VAT)
£ 50.81
(inc. VAT)
Units
Per unit
1 - 4
£42.34
5 - 9
£41.47
10 +
£40.14
