RS PRO Brass Single Non Return Valve 1 in BSPP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

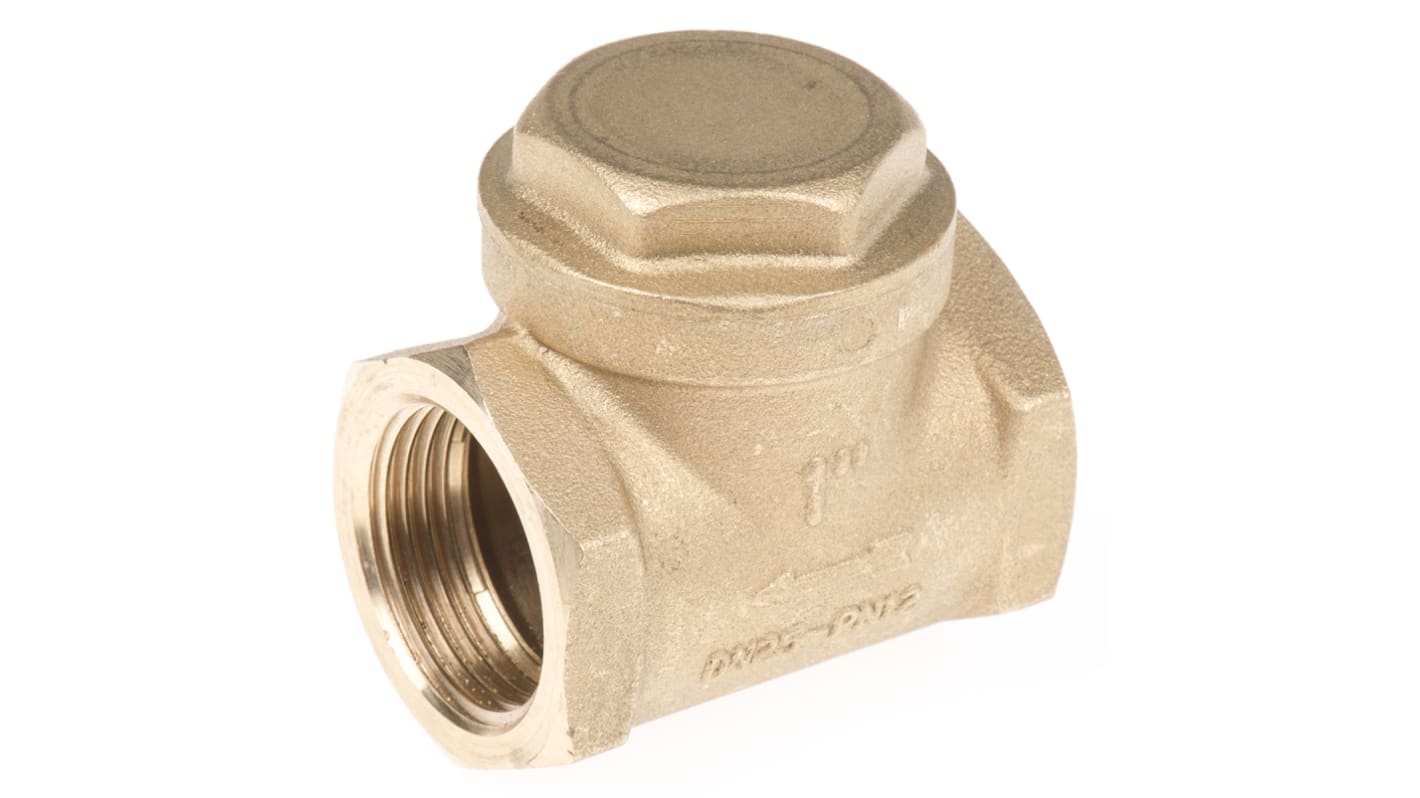

S.126 Brass Swing Check Valve

Application : Industry, pneumatics, hydraulic, plumbing installations
Operating Temperature : +0゚C / +90゚C
Operating pressure : PN12 1/2' to 1’’, PN10 1.1/4’’ to 2’’, PN8 2.1/2’’ to 4’’
Threads : ISO 228 parallel female threads
Metal seal
Compact inspection cap
100% Made in Italy
Low pressure drop
Water hammer resistant

Note

Approvals apply to specific configurations only

Approvals

GOST-R (Russia)
Expert Conclusion (Russia)
EAC Conforming (Russia)
RoHS Compliant

Standards

BS5154/B - PN 16

Non Return/Check Valves - Swing Type

Non-return or check valves which allow flow in one direction only.

Warning

  • Freezing of the fluid in the installation may severely damage the valve
Specifications
Attribute Value
Type Single
Connection 1 in BSPP
Body Material Brass
Maximum Working Pressure 16 bar
Thread Size 1in
Thread Standard BSP
4 In stock - FREE next working day delivery available
Price Each
£ 16.25
(exc. VAT)
£ 19.50
(inc. VAT)
Units
Per unit
1 - 4
£16.25
5 - 9
£15.75
10 +
£15.24
