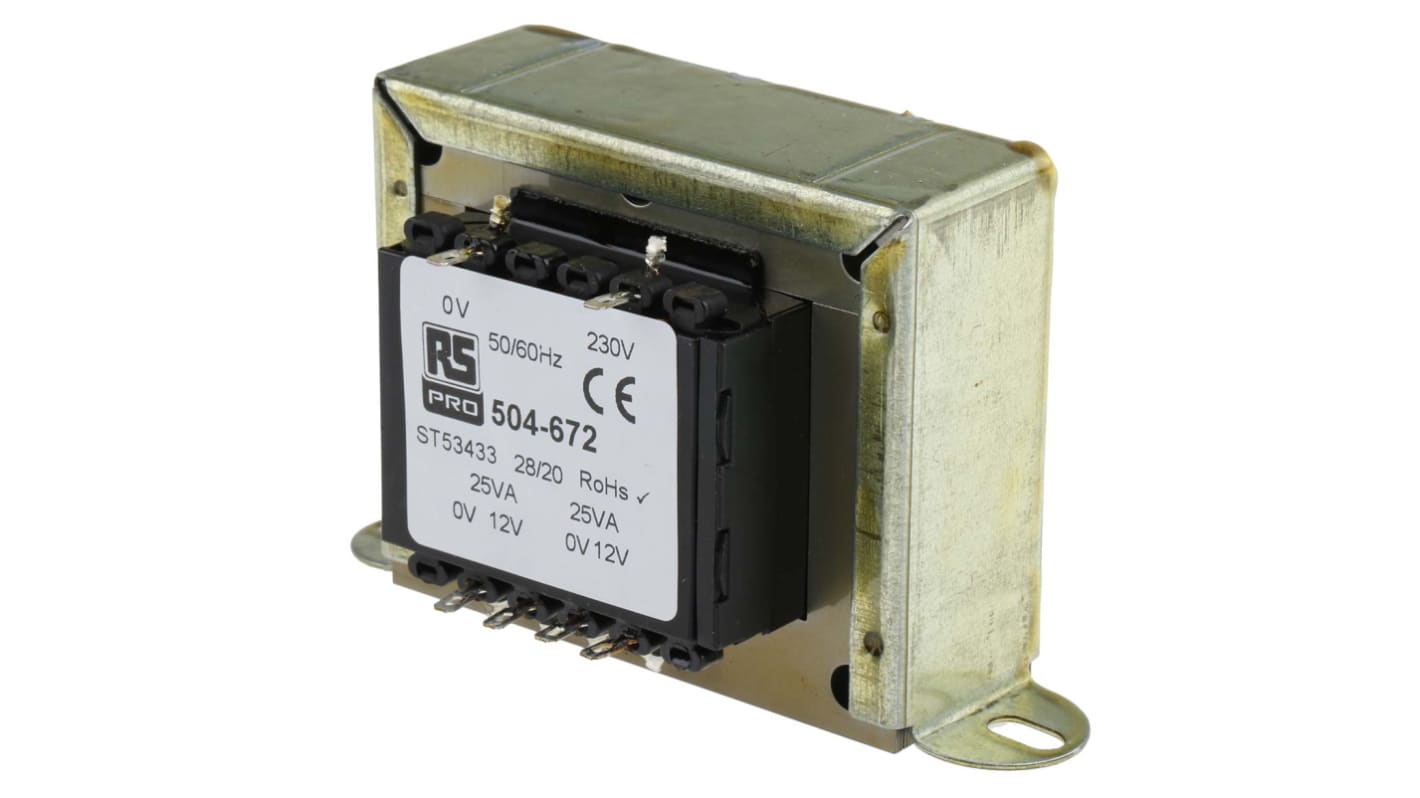

RS PRO 50VA 2 Output Chassis Mounting Transformer, 12V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Chassis Mount, Clamp Construction, 230Vac, 6VA to 50VA

Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds (example 503-912 )
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742

Standards

BS3535; EN 60 742

Specifications
Attribute Value
Primary Voltage Rating 230V ac
Secondary Voltage Rating 12V ac
Power Rating 50VA
Number of Outputs 2
Mounting Type Chassis
Length 79mm
Width 65mm
Depth 62mm
Dimensions 79 x 62 x 65mm
Fixing Hole Diameter 4.7 x 9.5mm
Weight 1kg
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Price Each
£ 18.78
(exc. VAT)
£ 22.54
(inc. VAT)
Units
Per unit
1 - 9
£18.78
10 +
£17.62
Not available for guaranteed pre 9am/10am delivery
