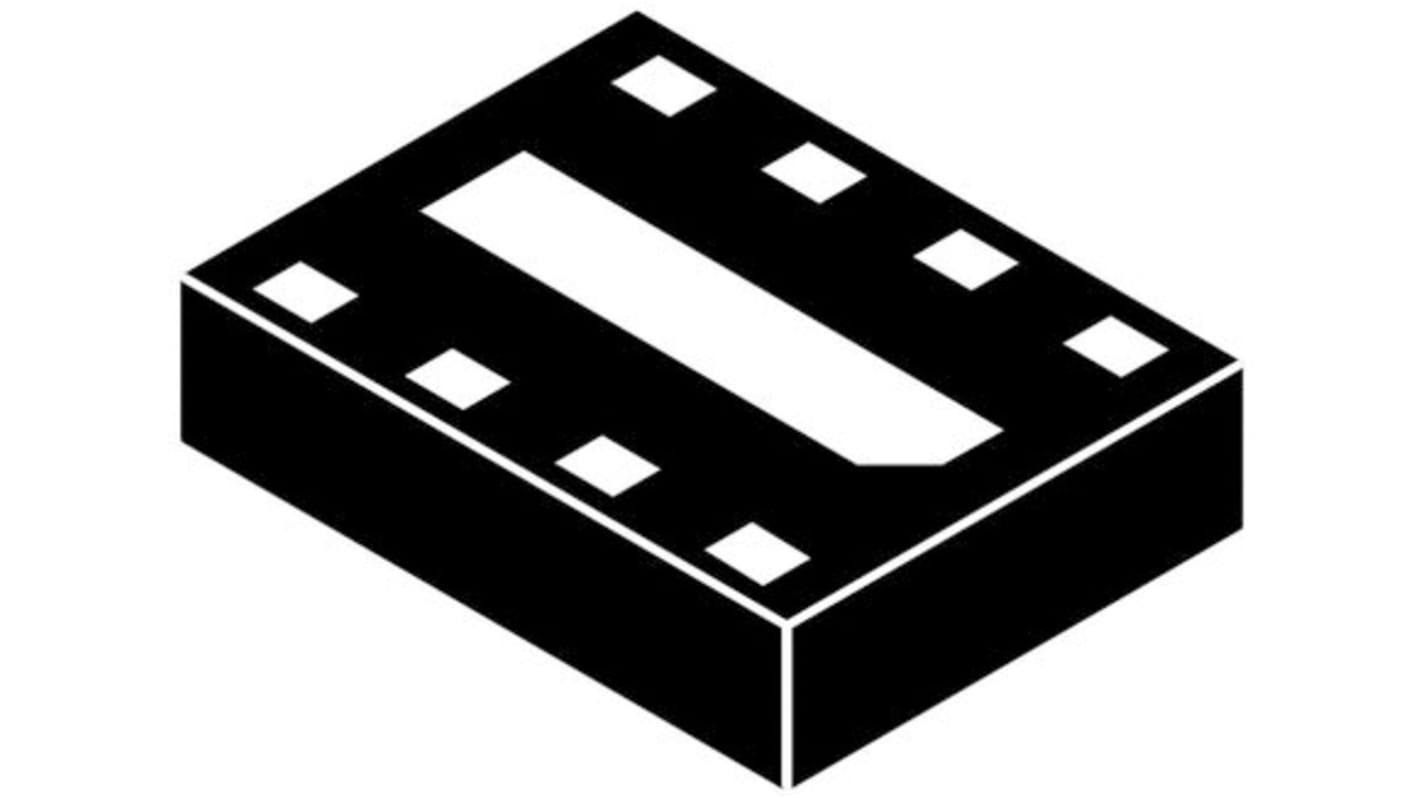

ON Semiconductor CM1693-04DE, 4 Channel Protector, 5.6 → 9 V, 8-Pin DFN

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

EMI Filter with ESD Protection, ON Semiconductor

Transient Voltage Suppressors, ON Semiconductor

Specifications
Attribute Value
Number of Channels per Chip 4
On Resistance 2.3Ω
Operating Supply Voltage Range 5.6 → 9 V
Package Type DFN
Pin Count 8
Mounting Type Surface Mount
Dimensions 1.7 x 1.35 x 0.5mm
Length 1.7mm
Width 1.35mm
Height 0.5mm
Maximum Operating Supply Voltage 9 V
Maximum Operating Temperature +85 °C
Minimum Operating Supply Voltage 5.6 V
Minimum Operating Temperature -40 °C
Operating Temperature Range -40 → +85 °C
2275 In stock for FREE next working day delivery
Price Each (In a Pack of 25)
£ 0.055
(exc. VAT)
£ 0.066
(inc. VAT)
Units
Per unit
Per Pack*
25 +
£0.055
£1.375
*price indicative
